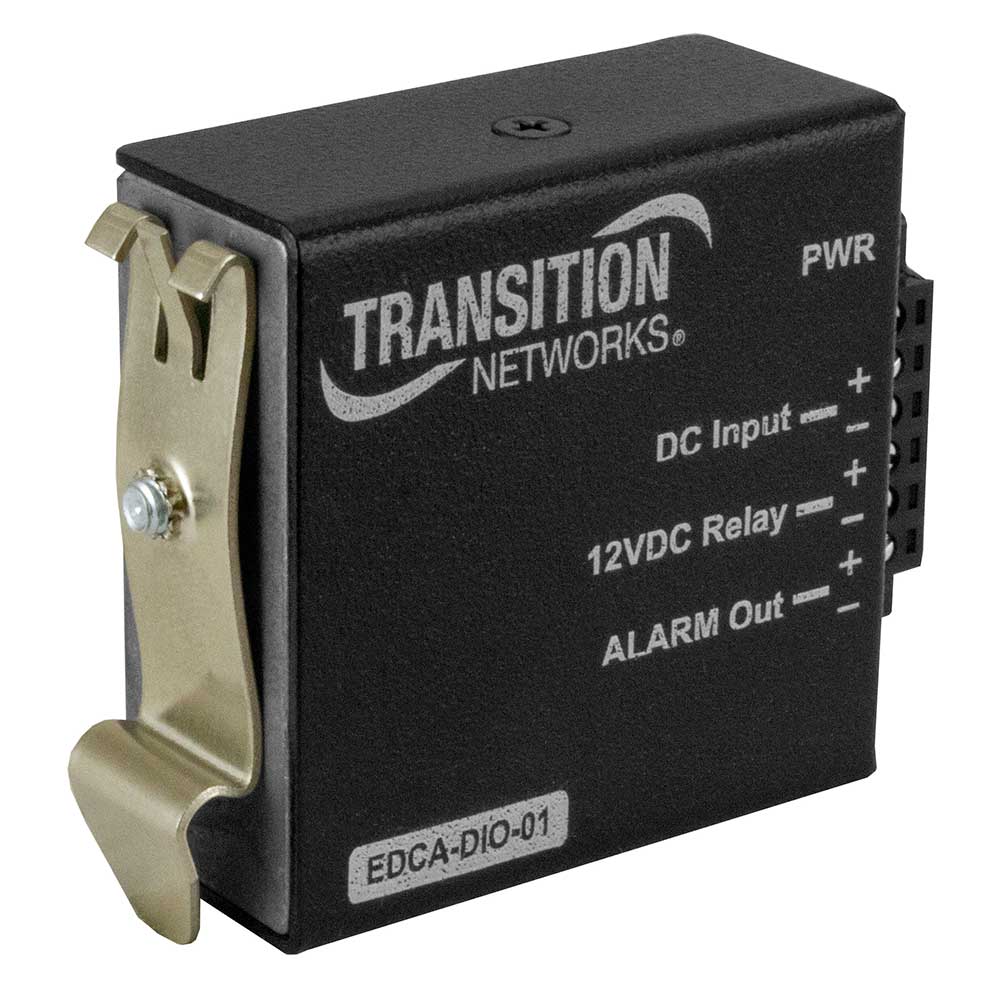

Lantronix EDCA-DIO-01 | Enclosure Door Contact Alarm
Regular price
$144.95
Unit price
Description
Description
The Enclosure Door Contact Alarm is designed to mount within a telecom equipment cabinet and is a security device that helps alert network managers when the cabinet door has been opened. This device will provide 12VDC power to a cabinet door contact switch, or other actuation device. The status of this contact switch, either open or closed, can then be wired to a standard alarm input on a managed Ethernet switch, such as one of three Hardened Ethernet Switches offered by Lantronix SISPM1040-582-LRT.
Key Features
- Wide input of 20 – 60 VDC
- Input is fused and reverse polarity protected
- Standard DIN Rail Clip is included
- A wall mount bracket is also available (sold separately)
- Will work with the cabinet door contact switch provided by your enclosure manufacturer
- A third party magnetic enclosure door contact switch is available (sold separately)
- Compatible for use with these Lantronix Hardened Ethernet Switches
Specifications
Specifications
Specifications

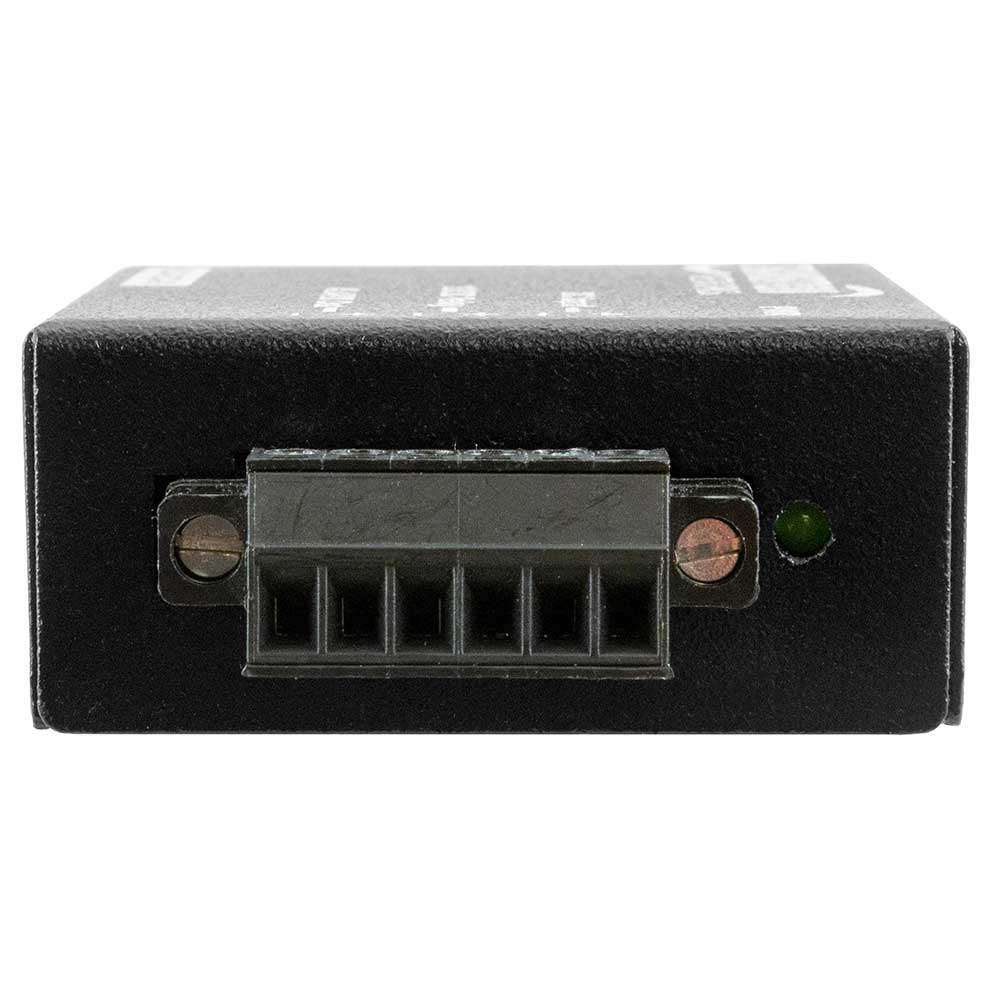

| Connector | 6-pin Terminal Block |
|---|---|
| Status LED | PWR (Power): On = Power |
| Power Consumption | 1.2 W (100mA at 12V out max.) |
| Power Input | 20 - 60 VDC |
| Power Output | 12 VDC +/- 10% |
| Dimensions | Width: 2” [50.8 mm] Depth: 0.88” [22.23 mm] Height: 2” [50.8 mm] |
| Weight | 0.2 lbs. [0.09 kg] |
| MTBF | 9,950,896 hours |
| Environment | Operating:-25°C to +75°C Storage: -40°C to +85°C Humidity: 5% to 95% (non-condensing) Altitude: 0 - 10,000 ft. |
| Certifications | EN55032, EN55024, CE Mark |
| Warranty | Lifetime |
