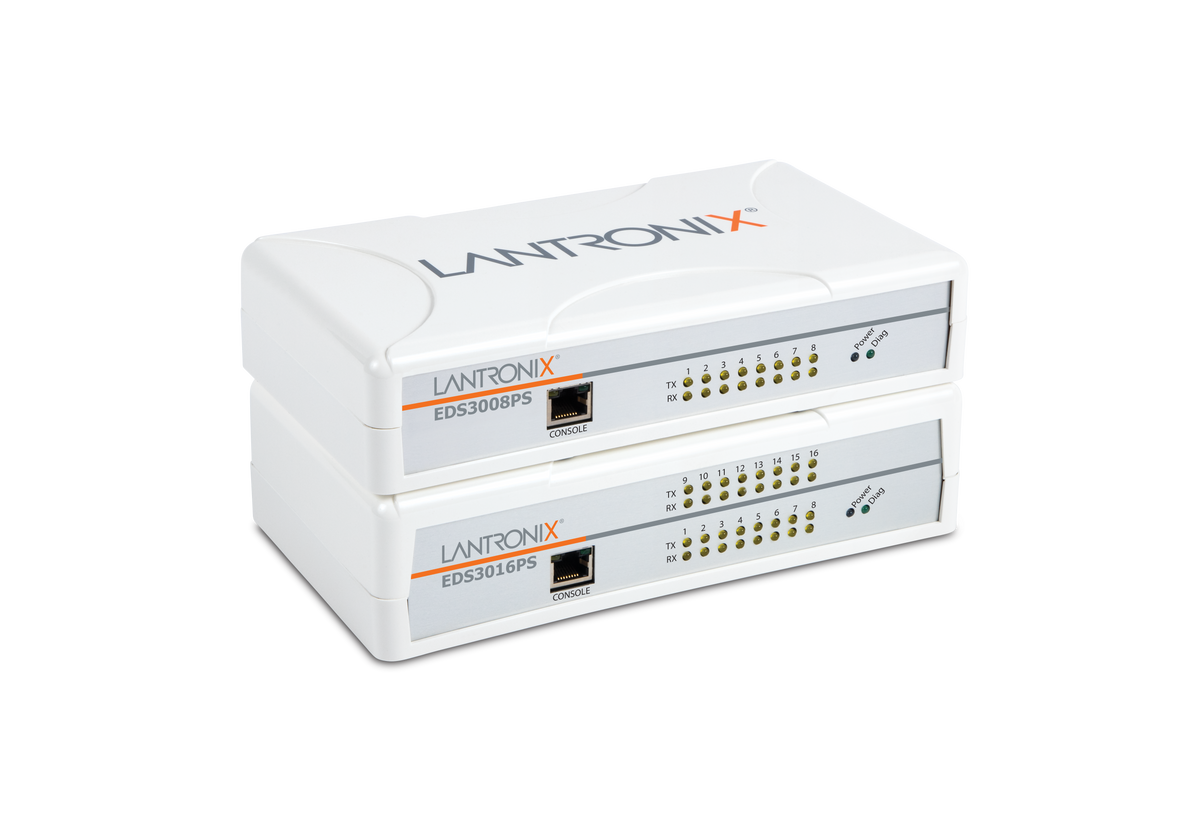

Lantronix EDS3008PS1NS | EDS 3000PS Secure Device Server, 8-Port Serial, 1 GbE Ethernet, 110-240 VAC, Desktop, No RAM Power Cord Included

Lantronix - EDS3008PS1NS - Product Categories

• Security
• Video Surveillance
• Video Servers and Storage

Lantronix - EDS3008PS1NS - Overview

• The EDS3000PS is a compact office grade plastic enclosed hybrid Ethernet terminal/multi serial port device servers (8-16) for easy remote access and management of virtually any IT/networking equipment or edge devices like medical equipment, POS terminals, or security equipment.
• Comprehensive Device Security Framework
• EDS3000PS device server delivers an unprecedented level of intelligence and safety with SSL/ TLS, AES, and SSH built-in. EDS provides enterprise-level security, allowing safe remote access and management from practically anywhere.
• Lantronix core software carries 30 years of ‘data-center grade’ protection, so each networked device has the same level of security as corporate data center equipment and provides robust defenses to hostile Internet attacks.
• Easy Configuration
• Setup is a breeze with Windows-based Lantronix Provisioning Manager, which can be used locally or remotely with the Lantronix ConsoleFlow device management platform. A “Cisco-like” command-line interface (CLI) simplifies configuration and control, making it easier to integrate edge devices or data center equipment into the network. EDS3000PS leverages the Lantronix Com Port Redirector virtualization software, allowing existing applications to work with the EDS with no code modifications.
• Centralized Device Management Platform
• Monitor, manage, and control your devices from anywhere, at any time with the ready-to-use software platform web application. The easy-to-use platform provides software-defined automation with zero-touch provisioning across all of your devices and the capture of device telemetry data for event management and analytics.

Lantronix - EDS3008PS1NS - Technical Specifications

• Hardware
• CPU: Cortex A9
• 4 Gbit (512 MB) Flash
• 4 Gbit (512 MB) RAM
• On-board memory: 8MB Flash
• Ethernet 10/100/1000Mbps
• Serial Interface
• Software selectable data rates from 300 to 230K Baud
• Characters: 7 or 8 data bits
• Parity: Odd, Even, None
• Stop Bits: 1 or 2
• Modem Control Signals: CTS, RTS, DTR, DCD
• Flow Control: XON/XOFF (software), CTS/RTS (hardware), None
• Network Interface
• 10/100/1000Mbps Ethernet
• 8 or 16 ports, RJ45 software selectable serial ports
• Protocols: HTTP, HTTPS, FTP, TFTP, Telnet, TCP, UDP, DHCP, SSHv2 , SSLv3, SNMPv2, Auto IP, RSS, ARP, ICMP, SYSLOG, AES, SMTP, DNS, BOOTP
• Security
• SSL 3, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3s
• MD5,SHA-1,SHA-2
• RSA, DSA and ECDSA
• Password protection
• IP address filtering
• Software
• Lantronix Provisioning Manager
• ComPort Redirector
• Secure ComPort Redirector
• Management
• Internal web server, SNMP v1, SNMP v2, SNMP v3, Serial Login,
• Telnet SSH login, XML
• ConsoleFlow
• Upgradeable FW via the Web Manager, FTP or serial port
• Internal Web Server
• Customizable with CGI
• Web content on local file system and updatable through ftp
• Environmental
• Operating: 0° to 55° C (32° to 131° F)
• Storage: -40° to 70° C (-40° to 151° F)
• Relative Humidity: 5 to 95%, noncondensing
• Power
• 100-240VAC, 50 to 60 Hz IEC-type cord
• 20 Watts
• Regulatory Approvals
• FCC, IC, CE, UL/CB
• Dimensions
• EDS3008PS
• Size: 12.8cm (5.02 in) L x 22.7 cm
• (8.92 in) W x 4.3 cm (1.7 in) H
• Weight: 0. 499 kg (1.1 lb)
• EDS30016PS
• Size: 12.8cm (5.02 in) L x 22.7 cm
• (8.92 in) W x 6 cm (2.36 in) H
• Weight: 0. 616 kg (1.36 lb)
• Warranty
• 3 years limited
• https://www.alldataresource.com/assets/Lantronix/Lantronix-EDS3000PS-Product-Brief.pdf
