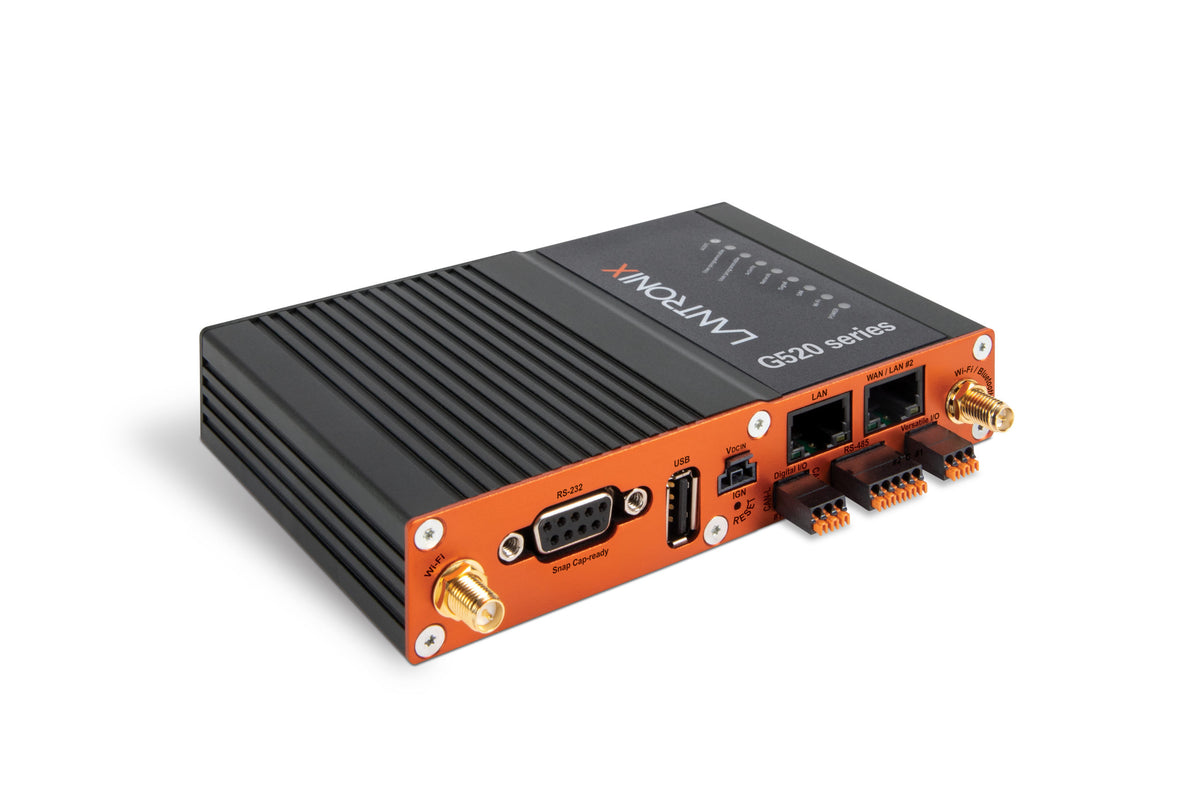

Lantronix G526GP1AS1 | Industry Pack LTE Cat 4 Router For Canada, USA

Lantronix - G526GP1AS1 - Product Categories

• Hardware and Supplies
• Tools and Supplies
• Miscellaneous

Lantronix - G526GP1AS1 - Overview

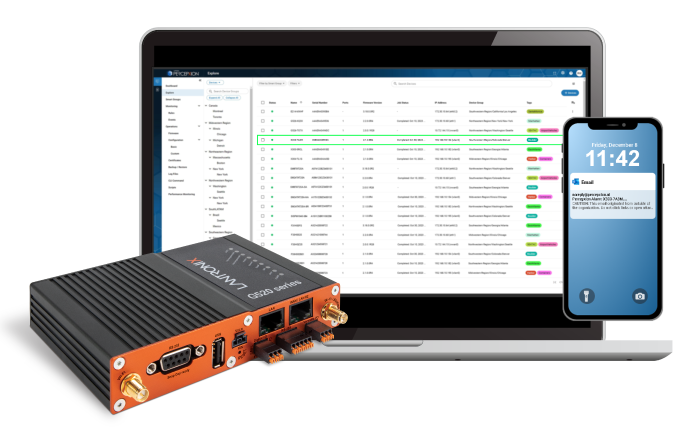

• The G520 series offers LTE CAT 4 and 5G cellular gateways to protect your long-term IoT application investment. Designed for industrial applications with built-in security to help prevent cyber-attacks, the G520 delivers a robust and reliable solution for the most mission-critical applications. The G520 series devices come pre-enabled with the easy-to-use Percepxion device management and cellular Connectivity Services cloud platform applications to increase operational efficiency directly. The rugged, compact, highly secure, industrial-grade cellular IoT gateways address the demands of application-specific use cases.
• High-speed LTE and 5G support
• Fieldbus protocols conversion suite
• Industrial-grade design
• Secure crypto element
• The G520 series IoT cellular gateways provide a robust solution for many industrial applications and are available in three application-specific SKUs.
• Industrial
• G526 LTE Cat 4 Ethernet, Serial, I/O, Fieldbus conversion and other industrial protocols
• Transport
• G526 LTE Cat 4, GNSS, accelerometer, CAN Bus reading, and advanced tracking features
• Security
• G527 LTE Cat 13 & 5G, Built-in cryptographic secure element and PSE-PoE
• G528 TAA compliance; 5G, Sub-6 GHz with both LTE cat. 13 (uplink) / cat. 20 (downlink) and 3G fall-back modes
• High-Speed Cellular Communication
• With LTE Category 13 uplink and Cat 7 downlink, the G527 Security Gateway is ideal for high throughput CCTV applications. The G528 provides a future migration path with 5G for your longer-term deployments.
• Built-in Security Framework with Lantronix InfiniShield
• The highest level of security for mission-critical applications is key to preventing growing cyber security threats. InfiniShield Security is a comprehensive suite of built-in device security, including a secure element chip to prevent unauthorized access of confidential information.
• Industrial Design and Protocols
• The G520 Series is designed specifically for industrial applications with Ethernet, Serial, I/O, and a protocol conversion suite. Connect virtually any factory equipment or vehicle using fieldbus protocols and CAN Bus.
• Lantronix Software Services
• Percepxion – secure cloud platform to manage remote IoT gateways through a single pane of glass.
• Connectivity Services – North American and global cellular data plans and VPN security with an easy-to-use cloud platform to manage your SIMs and services.

Lantronix - G526GP1AS1 - Technical Specifications

• Hardware
• Cellular
• LTE CAT 4 with 3G and, depending on the regional variant, 2G fall-back modes on industrial pack
• LTE CA 13 (uplink) / 7 (downlink) with 3G fall-back mode on security pack
• 5G, Sub-6 GHz with both LTE cat. 13 (uplink) / cat. 20 (downlink) and 3G fall-back modes
• Wi-Fi & Bluetooth Operation
• 2T2R Wi-Fi 5; via an RP-SMA antenna connector
• Bluetooth 5.1; via Wi-Fi’s rightmost RP-SMA antenna connector
• Optional: 2T2R WiFi6/6E
• Ethernet
• 10/100 base Ethernet: One LAN port and one WAN port, user-reconfigurable as second LAN port; via RJ-45 headers fitted with two LEDs
• PSE-PoE+
• Security Pack Variant Only – 30 W per LAN port – requires U301 accessory
• Serial Communication
• RS-232 Full implementation; via a 9-pin sub-D header
• RS-485 via 5-pin COMBICON header (
• sold separately)
• USB
• One (1) USB host port; via a Type-A header
• I/Os
• I/OS (2) with common ground; via a 3-pin COMBICON header and a tool-less plug (I/O header and plugs are not provided)
• User-configurable, each one independently from the other, as (i) analogue input; or (ii) analogue input suited to current loop (aka 4 mA ~ 20 mA) sensors; or (iii) digital output
• INPUT: 0 V dc ~ 2.5 V dc -> ZERO; 3 V ~ 50 V dc -> ONE
• OUTPUT: open collector; 200 mA max.; 50 V dc max.
• Dual SIM
• Dual SIM / Single standby; via two **mechanically secure mini-SIM holders**
• Location Services & 3 Axis Accelerometer
• Qualcomm IZat location services, gen. 8c/9c or u-blox M8 (transport pack)
• Concurrent GPS and GLONASS (security gateway 5G model)
• 3-axis accelerometer from STMicroelectronics LIS331DLH
• Memory & Data Storage Security Chip
• RAM
• DDR2 SDRAM 256MB
• SPI Flash Memory
• 8MB
• User Data Storage
• Internal: via the 256 MB of parallel NAND Flash memory mentioned earlier
• External: via a user-accessible microSD card (not provided), and USB Flash drive (not provided)
• Secure Element from MICROCHIP ATECC608 on security variant
• MFF SIM(s)
• Combination of (i) ‘MFF + mini’; or (ii) ‘mini + MFF’; or (iii) ‘MFF + MFF’ SIMs, substituted for the standard two mini-SIM trays. Contact us for the options.
• Physical Description
• Brushed aluminum alloy
• Size: (MM) 131.5 x 81.27 x 25 without connectors
• Weight: approximately 300g
• Operating Status LEDs: Nine as green for (i) POWER; blue for (ii) SIM; (iii) Wi-Fi; amber for (iv) Activity; (v) Network; (vi) Signal; yellow for user-programmable (vii) LED #1; (viii) LED #2; red for (ix) ALERT
• Temperature & Humidity Ranges
• Operating: -30 °C ~ +70 °C; up to 95% RH
• Storage: -40 °C ~ +85 °C; up to 95% RH
• CPU
• ARM926EJ-S-based CPU running at 600 MHz
• Built-in 32 KB instruction cache and 32KB data cache
• Power
• Input voltage: 10.8 ~ 60 V DC
• 3-pin Nano-Fit header
• Last Gasp: 100-second long, approximately. 2 96 mWh Li-ion batteries (not functional below -10 °C)
• Digital Input (Ignition): One (1) digital input, on the third pin of the 3-pin header
• Input: 0 V DC ~ 2.5 V DC => ZERO; 3 V DC ~ 50 V DC => ONE
• Power off Timekeeping: Dedicated RTC with 100-day data retention period, approximately 15 mWh lithium manganese battery (not functional below -20 °C)
• Software Suite
• Administration & Network Protocols
• Web-based user interface, setup wizard, console log viewer, save / load configuration, NTP, SMS / OTA remote configuration, TR-069-capable
• Redundancy
• Ethernet, Cellular, Wi-Fi – configurable as failover or load balancing
• Resilience
• Network connectivity watchdog (configurable), internal application watchdog
• Wi-Fi
• Client or Access point (approx. 12 users), WEP, WPA, WPA-PSK / WPA2-PSK security modes
• Device Management Services
• Lantronix Percepxion platform or third-party platforms
• SDK
• Use G520 SDK to create custom packages and build custom firmware images
• Performance & Fault Management
• Real time processor load and interface (WAN / LAN / Wi-Fi), traffic analysis, ICMP, trace-route, NS lookup
• Routing
• DHCP, static routing, port forwarding, traffic routing, static /dynamic DNS, DNS proxy, NAT, STP
• VPN & Tunneling Protocols
• PPTP client, L2TP, OpenVPN client / server / passthrough, GRE, IPsec up to 4 channel
• Security
• Zone-based firewall, VLAN, DMZ, HTTPS local and remote connection, SIM PIN
• Industrial Protocols
• Following industry protocols supported on MH.
• EtherCAT
• DLMS client
• DNP3 Outstation
• Modbus master
• IEC104 slave and IEC 101 master
• https://www.alldataresource.com/assets/Lantronix/Lantronix-G520-Product-Brief.pdf
