Brand: Lantronix | SKU: 587350

Lantronix ION001-A-BR | 1-slot Chassis, For The Ion Platform, External Ac/dc Power Supply Included, 12 Volt Dc, 0.5 Amp Unregulated, Br

$115.03

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

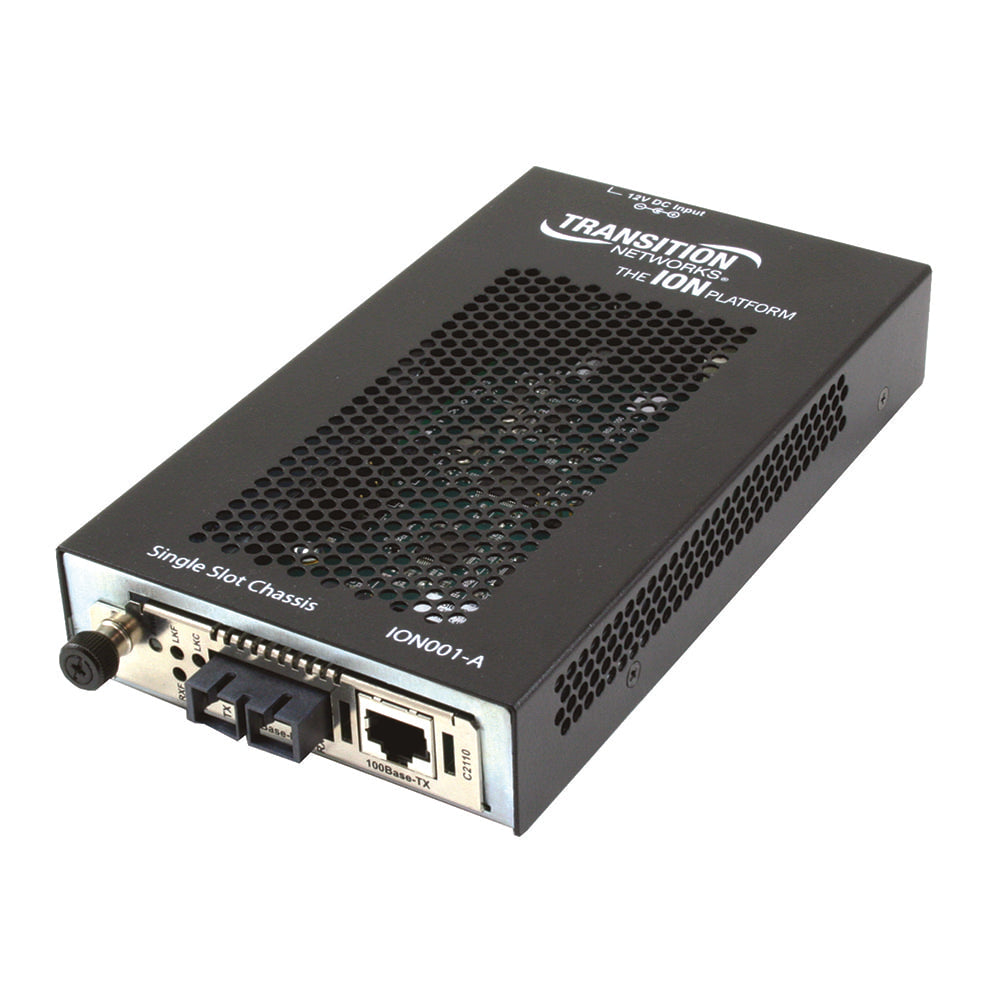

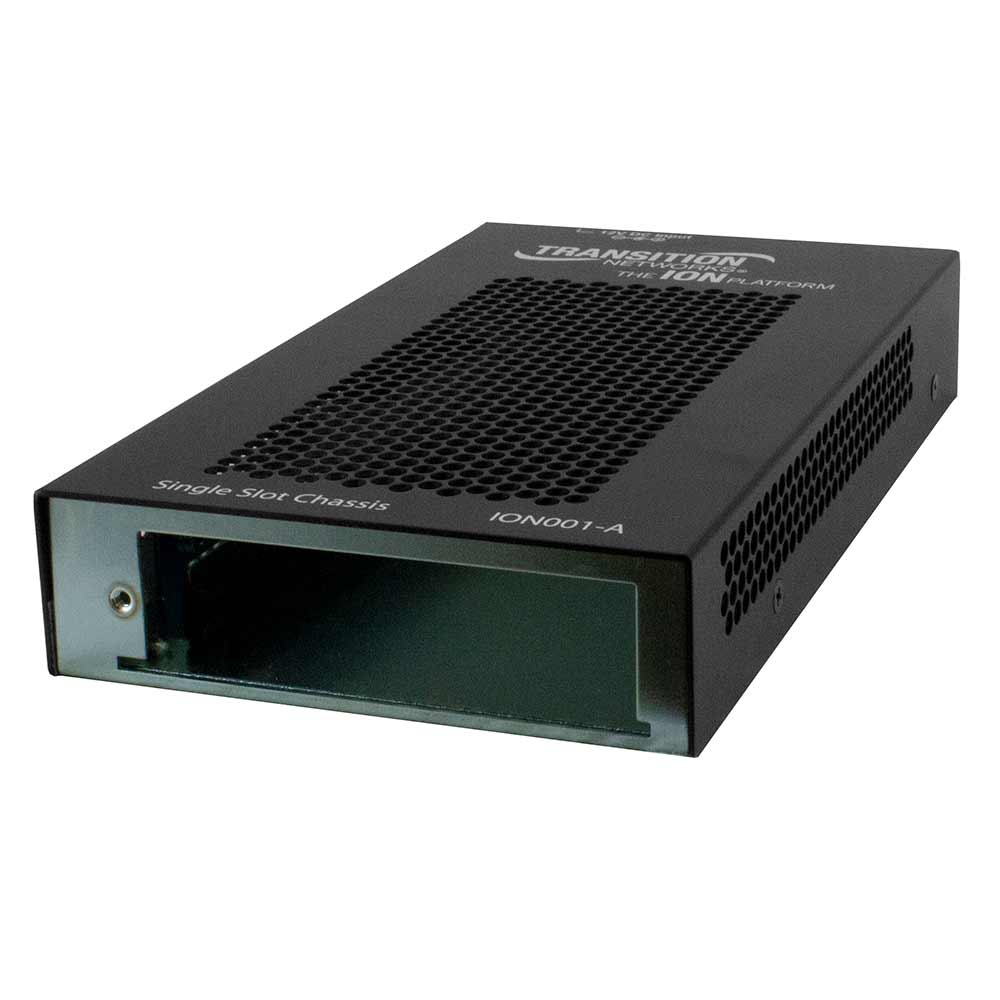

The ION001-A is a 1-slot ION chassis that is design for network edge deployments, allowing a single ION card to be deployed as a stand-alone unit. This chassis provides a method of mounting one single-wide ION slide-in media converter module and includes an external AC power supply.

Key Features

Desktop installation
Supports WMBP wall mount brackets
Unmanaged Chassis
Supports any ION slide-in card that consume 6 Watts or less of power (C4120-1048 is not supported)
Fan-less design
External AC power
Support IP addressable managed ION slide-in cards

Specifications

Slots	(1) Slot in front for ION slide-in modules
Status LEDs	None, Power indicator is on the slide-in card
Dimensions	Width: 4" [102 mm] Depth: 7.1” [180 mm] Height: 1.2” [30.48 mm]
Power Supply	External AC/DC power supply included, 120-240VAC input, 12VDC Output
Environment	Operating: 0°C to 50°C Storage: -40°C to +85°C Humidity: 5% to 95% (non-condensing) Altitude: 0 – 10,000 ft.
Weight	2 lbs. [0.9 kg]
MTBF	With Power Supply: 191,800 hours (MIL-HDBK-217F) 527,500 hours (Bellcore7 V5.0) Without Power Supply: 5,600,000 hours (MIL-HDBK-217F) 15,500,000 hours (Bellcore7 V5.0)
Certifications	UL listed, EN55022, EN55024, CE Mark, FCC Class A, CISPR Class A
Warranty	Lifetime
