Brand: Lantronix | SKU: 873597

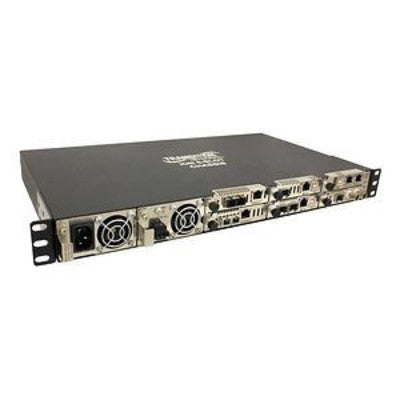

Lantronix ION106-D | 6 Slot Chassis For Ion Module With Ac Power Supply

$851.73

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The ION106 is an intelligent, multi-service integration platform that offers first-rate solutions for integrating, optimizing and navigating networks. By cost-effectively integrating copper and fiber equipment with infrastructure, the ION Platform equips networks for the bandwidth, distance, and security demands of today, tomorrow, and every point in between. Designed for service providers, data centers, and core network applications, the ION Platform provides the secure network management of fiber interface points required for both carrier-class and enterprise-class services.

Key Features

Security Features
When the optional management module is used, the following security are available, allowing you to control access to the ION Chassis via the ION Management Module, ensuring that only authorized personnel are able to view and change the settings to the slide-in modules.
Management VLAN
SSL
SSH
IEEE 802.1X
SNMPv1 & V2c, +V3
Management Features
Variety of management access methods including; telnet, web, SNMP
Single slot management module design allows for more slide-in modules to be inserted in the ION Chassis
Management VLAN
Based on Public MIBs
(2) 10/100 Ethernet interfaces
USB console port
TFTP upgrade/backup of slide-in modules
Import/Export configuration files in human readable/editable format
Multiple community strings
Access Methods
Web-browser: Access the ION Management Module using a standard web browser
Command Line Interface (CLI): CLI access can be done via telnet remotely or via the local console port on the ION Management Module
SNMP: Since the ION platform is based on public MIBs you can easily manage the ION with a standard network management system (NMS) such as SNMPc, HPOV or any other standard SNMP platform
Focal Point: Lantronix offers a free SNMP graphical user interface (GUI) software for management purposes. Focal Point offers full read and read/write capabilities in a user friendly GUI

Specifications

Slots	(6) Slots in front for ION slide-in modules (2) Slots in front for power supply modules
Status LEDs	Power On LED for each installed power supply module
Dimensions	Width: 17" [430 mm] Depth: 10” [254 mm] Height: 1.75” [44.45 mm]
Power Consumption	10 Watts
Power Supply	Two open bays for ION 6-slot power supply modules supporting: AC: 100-240VAC DC: -21 to -72VDC and +21 to +72VDC Note: Power supply module supplies +12VDC maximum to each card slot in the chassis. Only one power supply module is required to power the chassis and the installed modules, the optional second power supply module provides redundancy for instant fail-over.
Environment	Operating: 0°C to 50°C Storage: -40°C to 85°C Humidity: 5% to 95% (non-condensing) Altitude: 0 – 10,000 ft.
Shipping Weight	10 lbs. [4.5 kg]
MTBF	No power supply: Greater than 250,000 Hours (MIL?HDBK?217F) Greater than 687,500 Hours (Bellcore) 1 power supply: Greater than 165,000 hrs. (Bellcore) 2 power supplies: Greater than 82,500 hrs. (Bellcore)
Certifications	UL listed, EN55022 Class A, EN55024, CE Mark, FCC Class A, CISPR Class A
Warranty	Lifetime

Documents and Downloads
