Brand: Lantronix | SKU: 866614

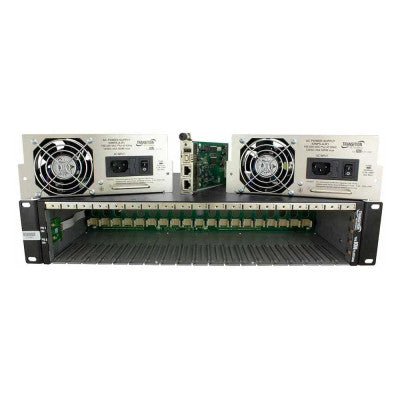

Lantronix ION219-AAMB-NA | 1 Chassis, 2 Ac Power Supplies1 Ionmm, All In A Bundle

$1,855.75

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The ION219 is an intelligent, high-density, multi-protocol system supporting a variety of network interface devices. Designed for both carrier class and enterprise network applications where multiple points of fiber integration and secure network management of the fiber interface devices is essential. An end-to-end fiber integration solution can be achieved by pairing the modules in a high density ION chassis with the modules in another ION chassis, or a Lantronix ’ stand-alone device. To take full advantage of all the features and functions available with the ION Chassis, an ION Management Module is required. The ION Management Module connects to the chassis backplane and communicates with the individual cards in the ION Chassis. Each slide-in module for the ION Chassis has specific features and functions that are controlled via the ION Management Module. A network administrator can configure, monitor and troubleshoot ION slide-in modules remotely via the ION Management Module.

Key Features

Security Features
When the optional management module is used, the following security are available, allowing you to control access to the ION Chassis via the ION Management Module, ensuring that only authorized personnel are able to view and change the settings to the slide-in modules.
Management VLAN
SSL
SSH
IEEE 802.1X
SNMPv1 & V2c, +V3
Management Features
Variety of management access methods including; telnet, web, SNMP
Single slot management module design allows for more slide-in modules to be inserted in the ION Chassis
Management VLAN
Based on Public MIBs
(2) 10/100 Ethernet interfaces
USB console port
TFTP upgrade/backup of slide-in modules
Import/Export configuration files in human readable/editable format
Multiple community strings
Access Methods
Web-browser: Access the ION Management Module using a standard web browser
Command Line Interface (CLI): CLI access can be done via telnet remotely or via the local console port on the ION Management Module
SNMP: Since the ION platform is based on public MIBs you can easily manage the ION with a standard network management system (NMS) such as SNMPc, HPOV or any other standard SNMP platform
Focal Point: Lantronix offers a free SNMP graphical user interface (GUI) software (Focal Point) for management purposes. Focal Point offers full read and read/write capabilities in a user friendly GUI

Specifications

Slots	(19) Slots in front for ION slide-in modules (2) Slots in rear for power supply modules
Status LEDs	Power On LED for each installed power supply module
Dimensions	Width: 17" [430 mm] Depth: 15.8” [401 mm] Height: 3.5” [89 mm]
Power Consumption	Up to 150 watts
Power Input	Two open bays for ION power supply modules supporting: AC: 100 - 240VAC DC: -48VDC Note: Power supply module supplies +12 VDC maximum to each slot in the chassis. Only one power supply module is required to power the chassis and the installed modules, the optional second power supply module provides redundancy for instant fail-over.
Power Output	12VDC rated at 200 Watts (max)
Environment	Operating: 0°C to 50°C Humidity: 5% to 95% (non-condensing) Altitude: 0 – 10,000 ft.
Weight	19 lbs. [8.6 kg]
MTBF	ION219-A: Greater than 23,570 Hours (MIL-HDBK-217F) Greater than 64,800 Hours (Bellcore) ION219-D: Greater than 42,900 Hours (MIL-HDBK-217F) Greater than 118,000 Hours (Bellcore)
Certifications	UL listed, EN55022, EN55024, CE Mark, FCC Class A, CISPR Class A
Warranty	Lifetime
