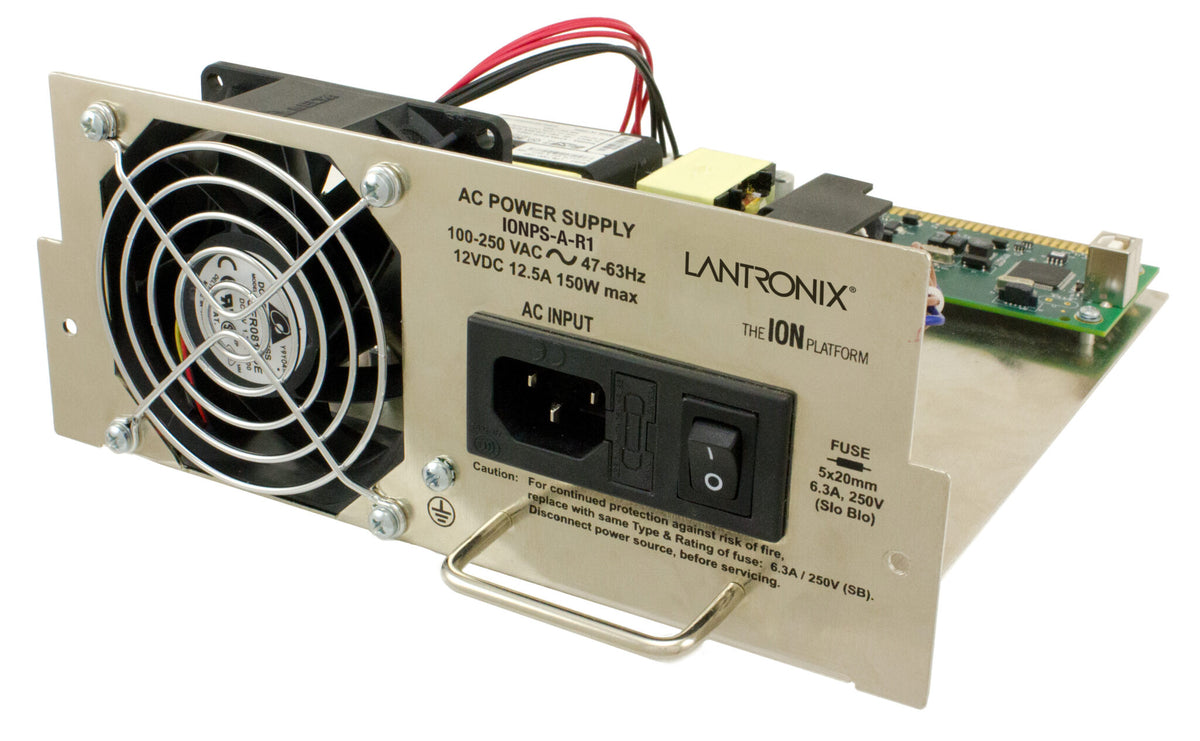

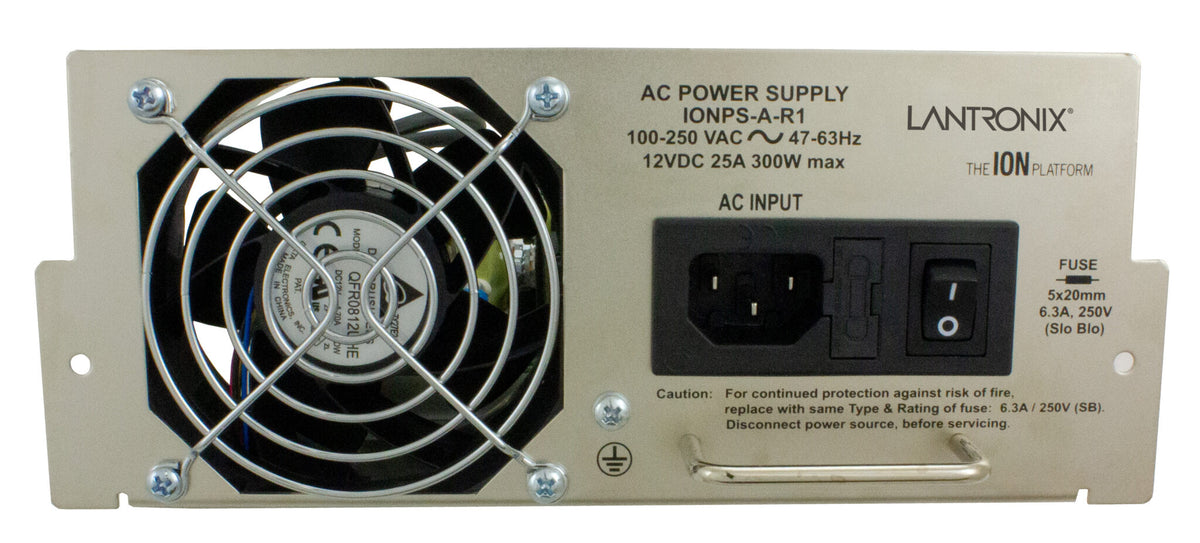

Lantronix IONPS-A-R1-BR | AC Power Supply Module For the ION 19-Slot Chassis
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The ION Platform is an intelligent, high-density, multi-protocol system supporting a variety of network interface devices. Designed for both carrier class and enterprise network applications where multiple points of fiber integration and secure network management of the fiber interface devices is essential.
The ION 19-slot chassis can support up to two power supply modules which mount in the rear of the chassis. A single power supply can be used to power all the devices installed in the chassis; however the system can be made redundant with the use of a second power supply. In this configuration, the power supplies operate in an instant fail-over mode and can be installed in either an AC or DC powered chassis.
Specifications
Specifications
Lantronix - IONPS-A-R1-BR - Specifications
| Application | Up to 2 power supply modules can be used in the 19-slot ION chassis, ION219-A |
|---|---|
| Dimensions | Width: 1.63? [41.4 mm], Depth: 3" [76.2 mm], Height: 9.75" [247.7 mm] |
| Power Consumption | 100 – 240 VAC, 47 – 63 Hz, 3.5 A @ 100 VAC |
| Environment | Operating: 0°C to 50°C, Humidity: 5% to 95% (non-condensing), Altitude: 0 – 10,000 ft. |
| Weight | 3.4 lbs. [1.5 kg] |
| MTBF | Greater than 25,000 hours (MIL-HDBK-217F), Greater than 68,750 hours (Bellcore7 V5.0) |
| Certifications | UL Listed (UL60950), FCC Class A, CISPR Class A, CE Mark |
