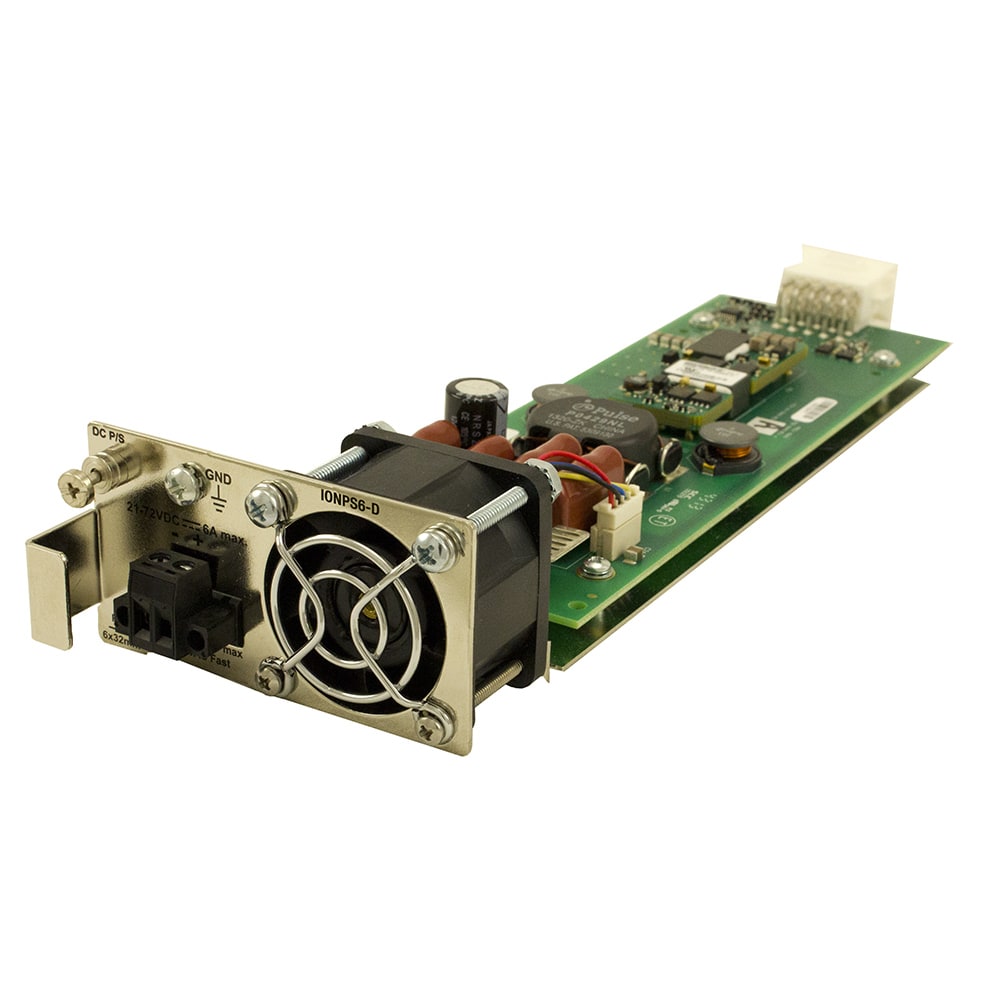

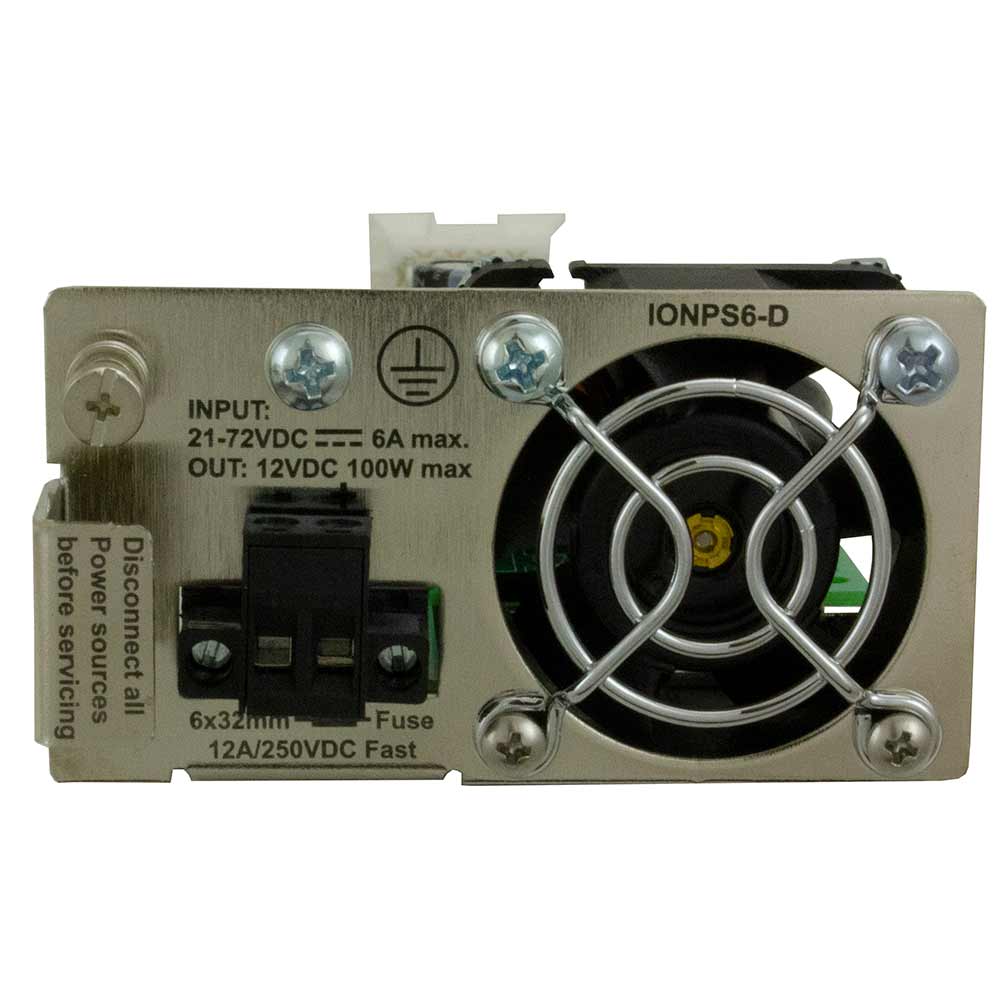

Lantronix IONPS6-D | DC Power Supply Module for the ION 6-Slot Chassis
Regular price
$605.30
Unit price
Brand: Lantronix
|
SKU:
873599
Regular price
$605.30
Unit price
Description
Description
The IONPS6-D is a redundant DC power supply module for use in the ION106 chassis, which is an intelligent, multi-service integration platform that offers first-rate solutions for integrating, optimizing and navigating networks. By cost-effectively integrating copper-based equipment into a fiber infrastructure, the ION Platform equips networks for the bandwidth, distance, and security demands of today, tomorrow, and every point in between. Designed for service providers, data centers, and core network applications, the ION Platform provides the secure network management of fiber interface points required for both carrier-class and enterprise-class services.
Specifications
Specifications
Specifications
| Application | Up to 2 power supply modules can be used in the 6-Slot ION Chassis, ION106 |
|---|---|
| Status LEDs | Power On LEDs for each installed power supply module are installed on the frame of the ION106 chassis |
| Power Input | -21 to -72 VDC and +21 to +72 VDC input |
| Dimensions | Width: 1.63" [41.4 mm] Depth: 3” [76.2 mm] Height: 9.75” [247.7 mm] |
| Environment | Operating: 0°C to 50°C Storage: -40°C to 70°C Humidity: 5% to 95% (non-condensing) Altitude: 0 – 10,000 ft. (with de-rating) |
| Weight | 0.94 lbs. [0.43 kg] |
| MTBF | Greater than 65,000 Hours (MIL?HDBK?217F) Greater than 178,750 Hours (Bellcore) |
| Certifications | UL listed, EN55022 Class A, EN55024, CE Mark, FCC Class A, CISPR Class A |
| Warranty | Lifetime |
| Device Technology | POWER |
| No Exp Modules/Slots | 44413 |
| UNSPSC Code | 43222612 |
