Brand: Lantronix
|
SKU:
10129916

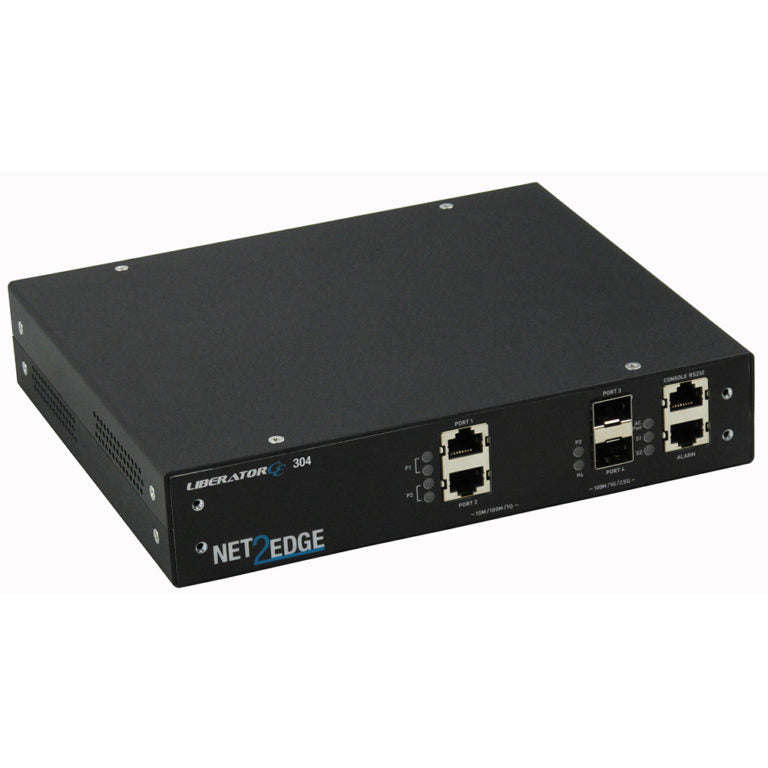

Lantronix LIB-304-AC-SA | Gigabit Ethernet NID (2) 10/100/1000Base-T RJ-45 Ports + (2) 100/1000Base-X SFP Slots
Regular price
$532.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lantronix LIB-304-AC-SA | Gigabit Ethernet NID (2) 10/100/1000Base-...
Regular price
$532.34
Unit price
Description
Description
Lantronix LIB-304-AC-SA | Gigabit Ethernet NID (2) 10/100/1000Base-T RJ-45 Ports + (2) 100/1000Base-X SFP Slots
The Lantronix’ Net2Edge LIB-304 is a multiservice NID that provides SLA assurance & advanced fault management that is MEF CE 2.0 compliant. IEEE 802.1ag Service OAM, ITU Y.1731 Performance Monitoring & IEEE 802.3ah Link OAM are standard features. The LIB-304 supports advance features such as IPv6 & IPv4, VLANs, QoS, bandwidth allocation, ring protection, jumbo frames & numerous security features.
Lantronix - LIB-304-AC-SA - Features
- Fan-less design
- Optional MPLS-TP
- SNMP v1, v2c, and v3
- IPv6 and IPv4 management support
- VLAN (IEEE 802.1Q) Q-in-Q (C-Tag / S-Tag)
- RMON and Syslog
- OAM Support: IEEE 802.3ah Link OAM, IEEE 802.1ag Service OAM and ITU-T Y.1731 Performance Monitoring
- RFC-2544 and ITU-T Y.1564 Traffic Generation and Reports
- Protection: ITU-T G.8032/G.8031 IEEE RSTP, MSTP, LACP, Logical Link Forwarding
- IEEE 1588v2 (ptp)
- Future optional Sync-E capability
- Jumbo Frame Support (10K)
- Zero Touch Provisioning
- Wire speed loopbacks
- OTDR
- Resolution of 10 meters or better
- Accuracy of 50 meters or better
- Operates with any conventional MSA SFPs (Multisource Agreement)
- Low power dissipation <1.5W
- SNMP management interface
Lantronix - LIB-304-AC-SA - Software Features
- UNI or NNI configuration
- TOS/Diffserv
- Quality of Service (IEEE 802.1p): 8 queues; strict priority & WRR, shaping, policing, P-bit & DSCP
- Management via CLI, Web, SS/SSL & SNMP (v1, v2c & v3)
- Port configuration, status, statistics & monitoring
- RADIUS, TACACS+ & ACL
- Remote backup / restore configuration
- Remote firmware upgrades
- Alarms via Syslog & SNMP
- Remote loopbacks
- L2CP
- LLDP
- LLF
- Diagnostic Monitoring Interface – SFF-8472
- Dying/Last Gasp
- Port Mirroring
- Link Aggregation Control Protocol (LACP)
Specifications
Specifications
Lantronix - LIB-304-AC-SA - Applications
- MEF 2.0 Certified Services
- Mobile Backhaul
- Business Ethernet
- Fiber to the Premise (FTTP)
- SLA Enforcement Performance Statistics
- Migration to Packet Networks
- QoS for Differentiated Services
- Small Cell / DAS
- Cloud Services
Lantronix - LIB-304-AC-SA - Specifications
| Width | 7.48" [190 mm] |
|---|---|
| Depth | 8.54" [217 mm] |
| Height | 1.71" [43.5 mm] |
| Power Input | Single 100-240VAC; 50-63Hz Auto-sensing PSU |
| Power Consumption | 10 Watts (max) |
| Operating | -20°C to +50°C |
| Storage | -40°C to +70°C |
| Humidity | 5% to 90% (non-condensing) |
