Brand: Lantronix
|
SKU:
10129895

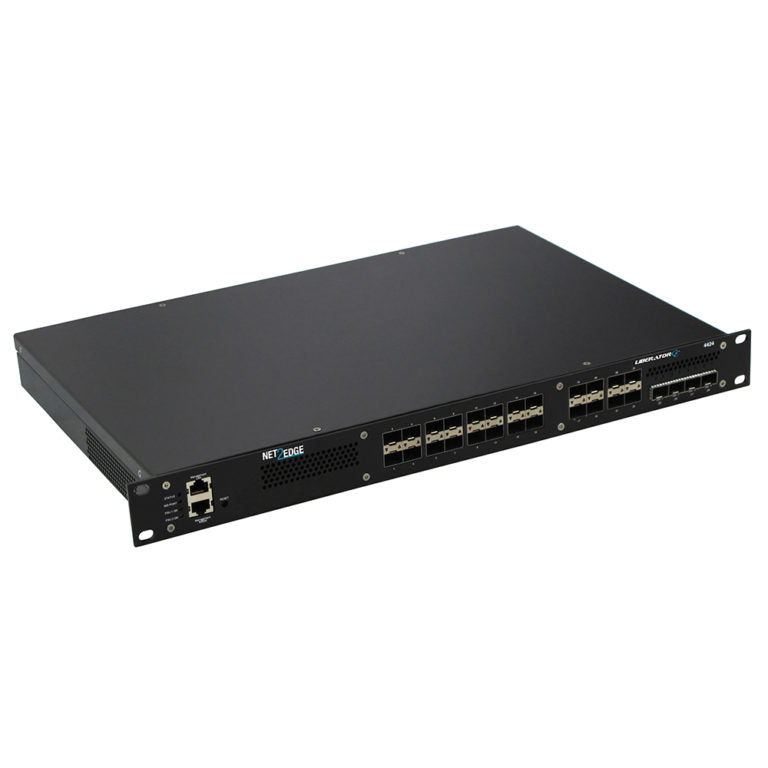

Lantronix LIB44248050000O | Multiservice Edge Aggregation Switch (24) 100/1000Base-X SFP Slots + (4) 10GBase-X SFP+ Slots
Regular price
$6,359.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lantronix LIB44248050000O | Multiservice Edge Aggregation Switch (2...
Regular price
$6,359.85
Unit price
Brand: Lantronix
|
SKU:
10129895
Regular price
$6,359.85
Unit price
Shipping calculated at checkout.
Description
Description
Lantronix LIB44248050000O | Multiservice Edge Aggregation Switch (24) 100/1000Base-X SFP Slots + (4) 10GBase-X SFP+ Slots
The LIB-4424 Series is a multiservice edge aggregator that provides SLA-assurance and advanced MEF Compliant fault management. IEEE 802.1ag Service OAM, ITU Y.1731 Performance Monitoring and IEEE 802.3ah Link OAM., The LIB-4424 Series supports advance features such as IPv6 and IPv4, VLANs, QoS, bandwidth allocation, ring protection, jumbo frames and numerous security features.
Lantronix - LIB44248050000O - Features
- Twin fan design
- SNMP v1, v2c, and v3
- IPv6 and IPv4 support
- VLAN (IEEE 802.1Q) Q-in-Q (C-Tag/STag)
- RMON and Syslog
- OAM Support: IEEE 802.3ah Link OAM. IEEE 802.1ag
- Service OAM and ITU-T Y.1731 Performance Monitoring
- IETF RFC 2544 and ITU-T Y.1564 Traffic Generation and Reports
- Protection: ITU-T G.8032/G.8031 IEEE RSTP, MSTP
- IEEE 1588v2
- Jumbo Frame Support (10K)
- Wire speed loopbacks
- IGMP Snooping
Lantronix - LIB44248050000O - Software Features
- UNI or NNI configuration
- TOS/Diffserv
- Quality of Service (IEEE 802.1p): 8 queues; strict priority and WRR, shaping, policing, P-bit and DSCP
- Management via CLI, Web, SSH/SSL and SNMP (V1, V2, & V3)
- Port configuration, status, statistics and monitoring
- RADIUS, TACACS+ and ACL
- Remote backup/restore configuration
- Remote firmware upgrades
- Alarms via Syslog & SNMP
- Remote loopbacks
- L2CP
- LLDP
- Diagnostic Monitoring Interface – SFF-8472
- Dying/Last Gasp
- Port Mirroring
- Link Aggregation Control Protocol (LACP)
Specifications
Specifications
Lantronix - LIB44248050000O - Applications
- MEF Compliant
- Mobile Backhaul
- Business Ethernet
- Fiber to the Premise (FTTP)
- SLA Enforcement PerformanceStatistics
- QoS for Differentiated Services
- Small Cell / DAS
- Cloud Services
Lantronix - LIB44248050000O - Specifications
| Width | 17.4" [442 mm] |
|---|---|
| Depth | 9.65" [245 mm] |
| Height | 1.71" [43.5 mm] |
| Power Input | Hot Swappable Power Supplies: 100 – 240VAC; 47-63Hz auto-sensing or -18VDC to -75VDC |
| Power Consumption | 75 Watts (max) |
| Operating | 0°C to +55°C |
| Humidity | 10% to 90% (non-condensing) |
