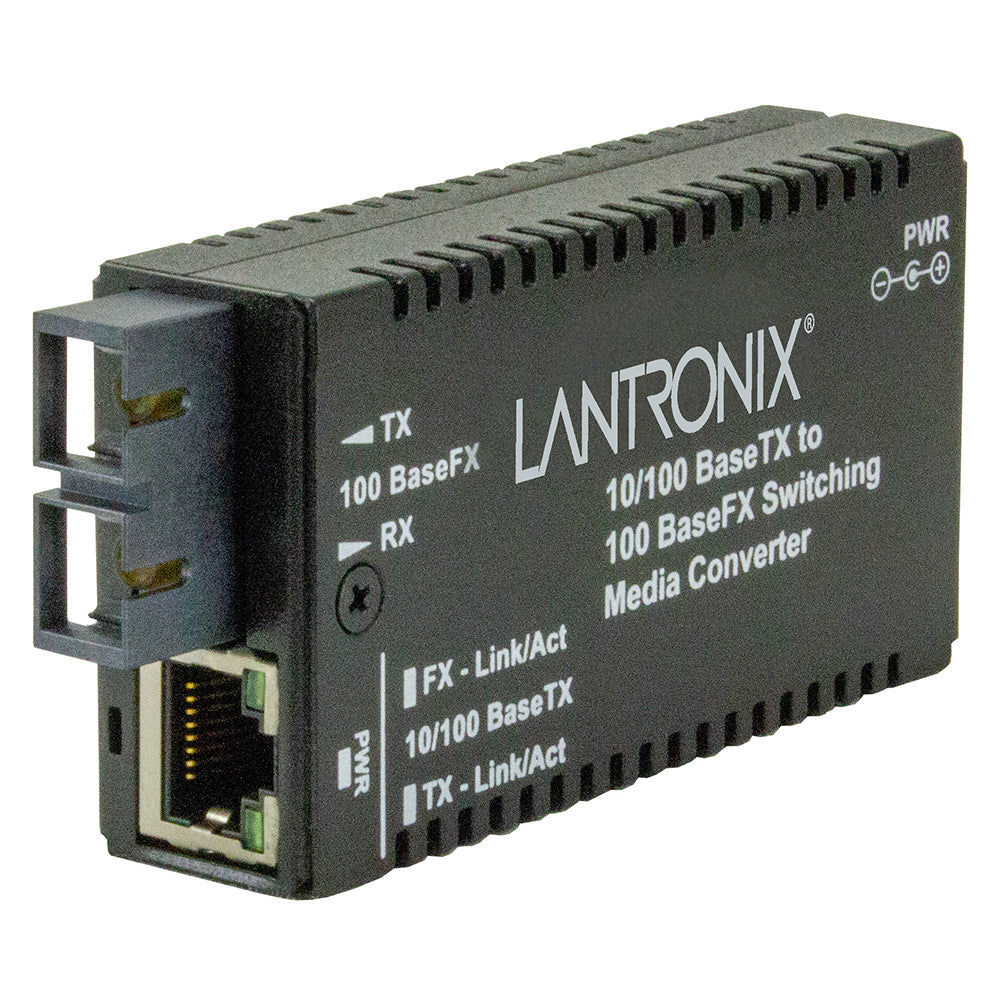

![Lantronix M/EPSWFX02SCBR | 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (SC) [2 km/1.2 mi.]](http://www.alldataresource.com/cdn/shop/files/Lantronix-M-EPSWFX02SCBR-Mini-10-100Basetx-Main.jpg?v=1786604230&width=1500)
Lantronix M/EPSWFX02SCBR | 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (SC) [2 km/1.2 mi.]
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lantronix M/EPSWFX02SCBR | 10/100Base-TX (RJ-45) [100 m/328 ft.] to...
Description
Description
The M/E-PSW Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
Lantronix - M/EPSWFX02SCBR - Features
- Unit and Port LEDs allow for quick status information
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Auto-MDI/MDIX
- Automatic Link Restoration
- Far-End-Fault (FEF)
- Connect to legacy network equipment
- Eliminate Collision Domains
Specifications
Specifications
Lantronix - M/EPSWFX02SCBR - Specifications
| Standards | IEEE 802.3 |
|---|---|
| Max Frame Size | 1632 bytes |
| Status LEDs | PWR (Power): (below RJ-45) ON = Link; Flashing = Activity, FX-Link/Act (Fiber Link/Activity): (Upper Left on RJ-45) ON = Link; Flashing = Activity, TX-Link/Act (Copper Link/Activity): (Upper Right on RJ-45) ON = Link; Flashing = Activity |
| Dimensions | Width: 1.8" [46 mm], Depth: 3.3" [85 mm], Height: 0.85" [22 mm] |
| Power Consumption | 2.6 Watts |
| Power Supply | External AC/DC required; +12VDC, 0.5A min |
| Power Input | 7.5 VDC to 13.9 VDC |
| Environment | Operating: 0°C to 50°C, Storage: -15°C to 65°C, Humidity: 5% to 95% (non-condensing) |
| Weight | 2 lbs. [0.90 kg] |
| MTBF | 41,660 hours (MIL-HDBK-21F), 114,580 hours (Bellcore) |
| Certifications | Safety: Wall Mount Power Supply: UL Listed, cUL Listed (Canada) FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark |
