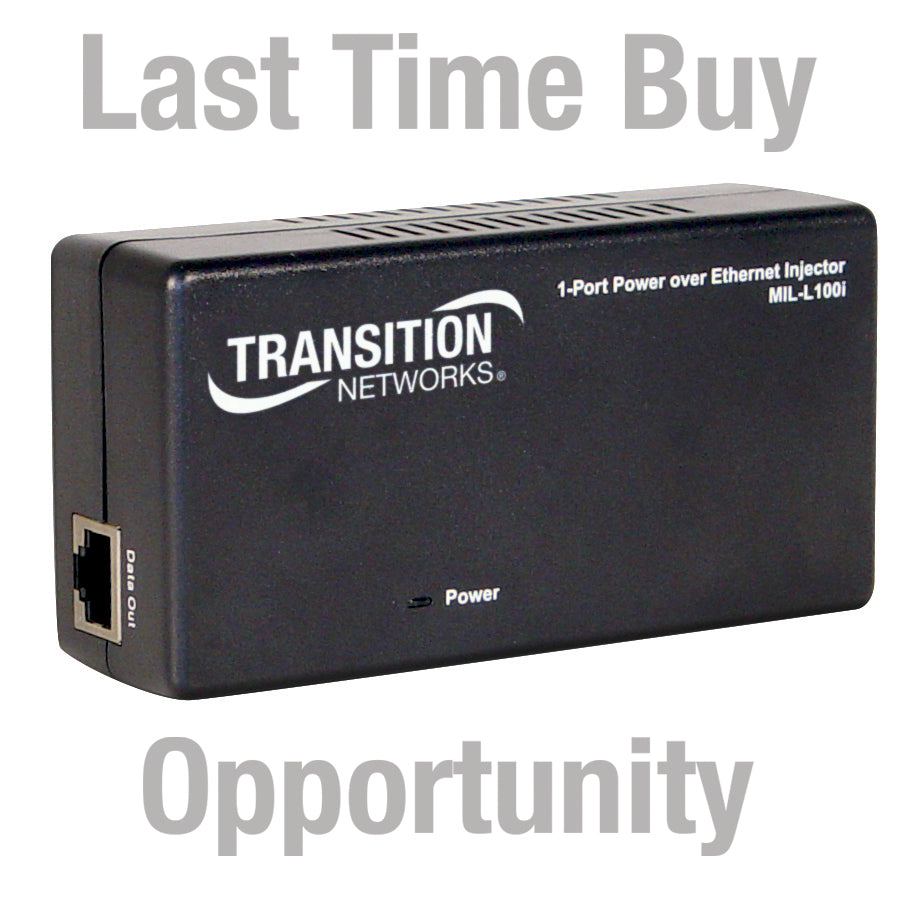

Lantronix MIL-L100I-NA | Empowered Ethernet 1-port Poe Injector
Regular price
$88.14
Unit price
Description
Description
Lantronix ’ Power-over-Ethernet solutions deliver a unified supply of data, voice, and video as well as electrical power through a single source by sending power over standard CAT5 and above twisted pair cables. Power-over-Ethernet simplifies installation and eliminates the need to run separate power cords and LAN cables to each Access Point or port locations.
Key Features
- Ensures uninterrupted network operation by providing a “power safe” path to the user
- Intelligent detection process to detect Power-over-Ethernet enabled terminals and protect legacy endpoints
- Furnishes easy and cost-effective installation with fewer cables and electrical outlets
- Provides one central secure location for power
- IEEE 802.3af compliant
- Ensures safe delivery of power to existing legacy devices as well as power-enabled terminals
- Avoids altering existing wiring and does not damage cabling infrastructure already in place
- Power delivery over Ethernet cables does not cause data degradation or loss of data integrity
- Easiest way to add support of PoE to an existing network without replacing existing equipment
Specifications
Specifications
Specifications
| Standards | IEEE 802.3af IEEE 802.3 IEEE 802.3u |
|---|---|

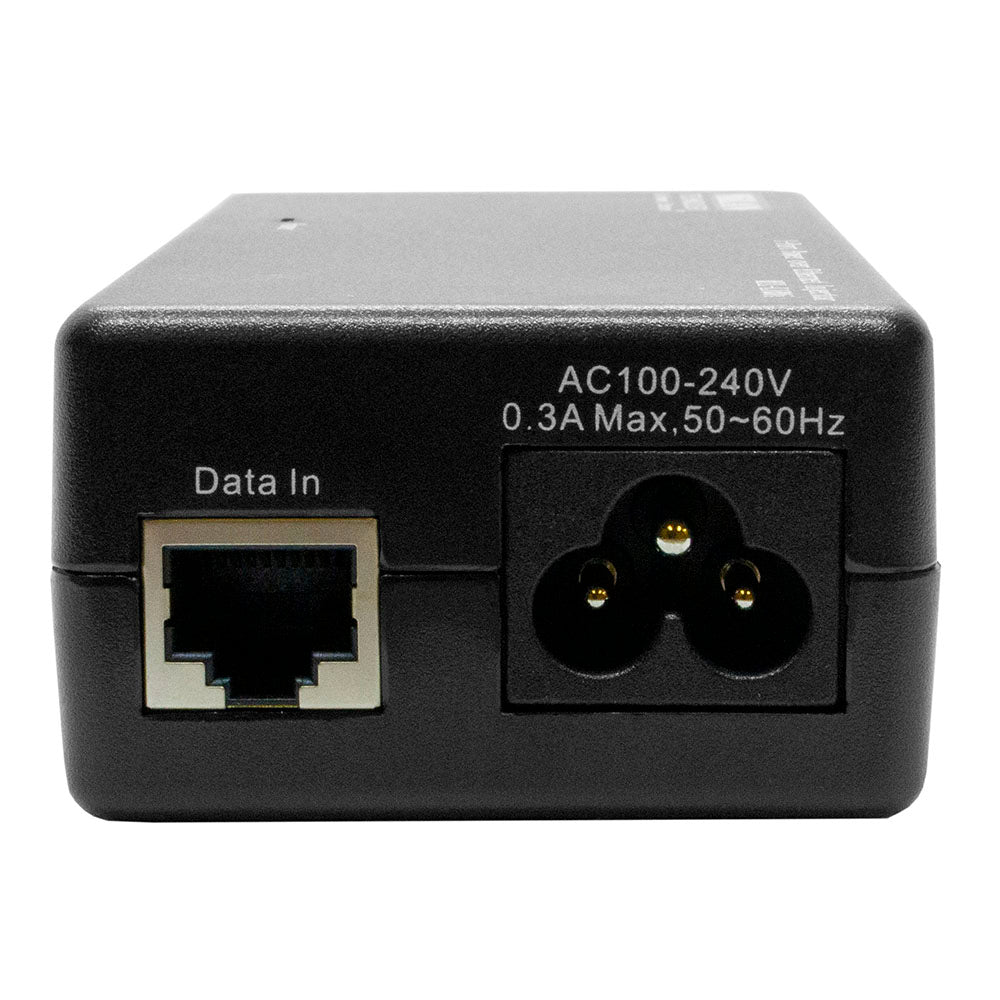

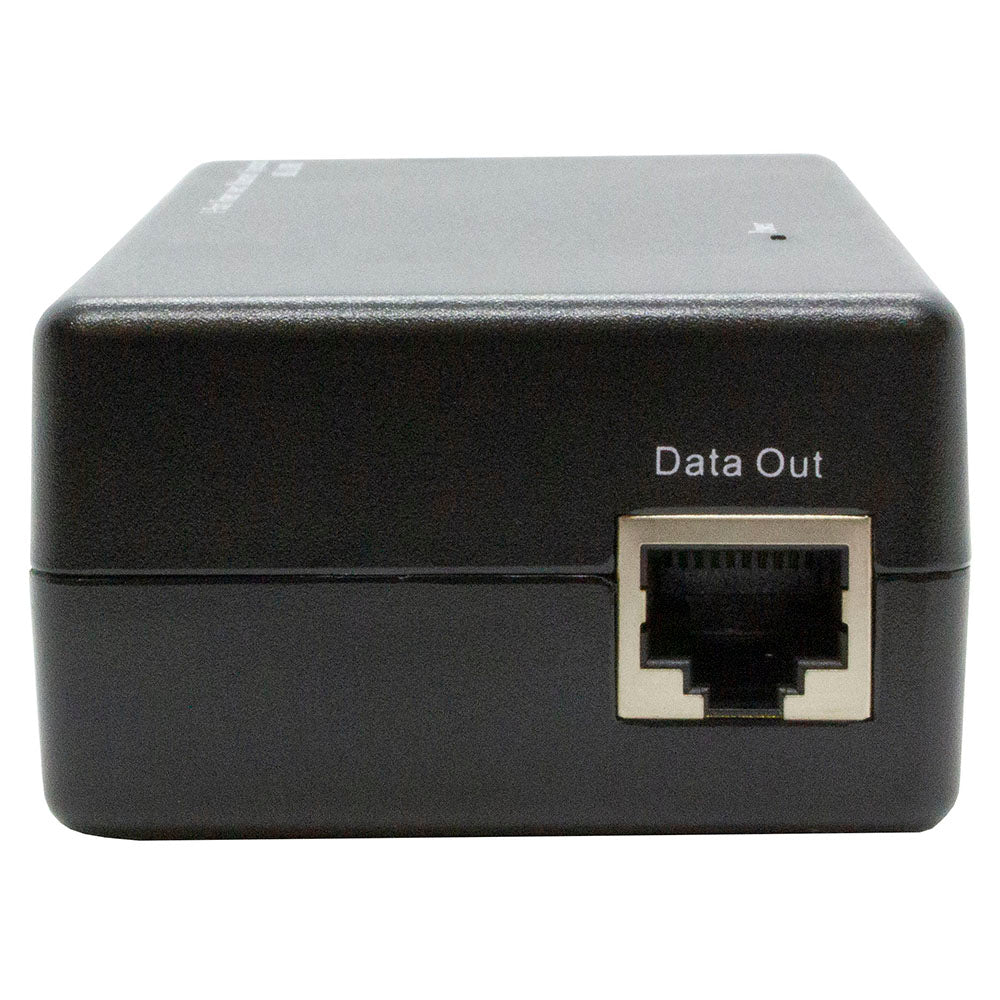

| Ports | (1) DATA IN RJ-45 Ethernet Port (1) DATA OUT PoE Injector RJ-45 Ethernet Port |
| Data Rate | 10/100 Mbps |
| Cable Requirements | 10Base-T: 2-pair UTP/STP Cat.3, 4, 5 cable EIA/TIA-568100- ohm(100 m) 100Base-TX: 2-pair UTP/STP Cat.5 cable EIA/TIA-568 100-ohm(100 m) |
| Status LEDs | Power: PoE power is being injected into the Data Out port |
| Dimensions | Width: 4.6” [117 mm] Depth: 2.3” [60 mm] Height: 1.3” [35 mm] |
| Power Input | AC 100~240V, 50~60 Hz, 0.3A |
| Power Output | -48 VDC, 300 mA |
| Environment | Operating: 0°C to 40°C Storage: 0°C to 70°C Humidity: 5% to 95% (non-condensing) |
| Weight | 0.44 lbs. [0.2 kg] |
| Certifications | Safety: UL, cUL, CE/EN60950 Emissions: FCC Class B, CE Mark |
| Warranty | Lifetime |
