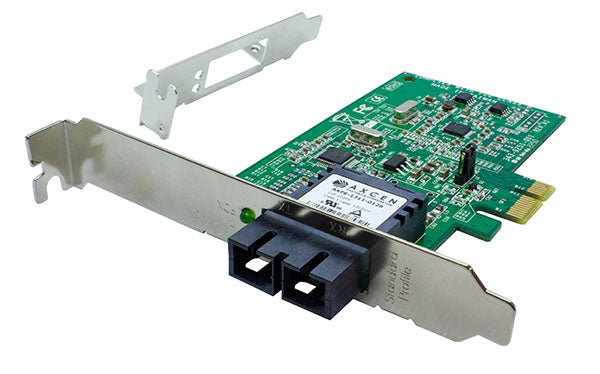

Lantronix N-FXE-MT-02B | Network Interface Card, 100Base-FX, PCle, MT MM, 2KM, Standard Bracket/Low Profile, PXE

Lantronix - N-FXE-MT-02B - Product Categories

• Networking
• Networking
• PC Cards

Lantronix - N-FXE-MT-02B - Overview

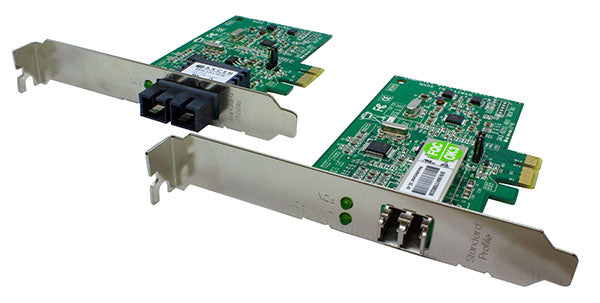

• N-FXE-02B Series is a Fiber Fast Ethernet to PCI-Express (PCIe) bus adapter that fully complies with all IEEE 802.3u and 100Base-FX standards. It provides up to 200Mbps full-duplex bandwidth capacity to support high-end systems. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking to users in a standards-based environment.
• The PCI-Express (PCIe) design gives you the maximum possible bandwidth and bus efficiency, along with low power consumption.
• For users equipped with PCI-Express systems, N-FXE-02B Series provides the ability to easily build or connect to Fast Ethernet fiber networks.

Lantronix - N-FXE-MT-02B - Technical Specifications

• Standards
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.1P
• IEEE 802.1Q
• Slots
• PCIe 1.1
• Status LEDs
• LINK/ACT (Link/Activity): ON = communication link; FLASHING = activity on link
• FDX (Full-duplex): ON = Full-duplex link
• Software Support
• Windows 2003, 2008, 2012, Windows XP, Vista, Linux 2.4.x, 2.6.x, Novell Netware 5.x, 6.x, Windows 7, 8, 10, 11
• Boot Server Support
• PXE Boot ROM
• Dimensions
• Depth: 4.25” [108 mm]
• Height: 2.70” [68.5 mm]
• Power Consumption
• 1.2 Watts (max), +3.3 VDC @ 0.7A
• Environment
• Operating: 0°C to 50°C
• Storage: -15°C to 65°C
• Humidity: 5% to 95% (non-condensing)
• Altitude: 0 – 10,000 ft.
• Weight
• 1 lb. [0.45 kg]
• Certifications
• EMI Standard, FCC Class B, CE Mark, RoHS
• Warranty
• Lifetime

Lantronix - N-FXE-MT-02B - Specifications

• Lantronix N-FXE-MT-02B Product Brief
