Description
Description

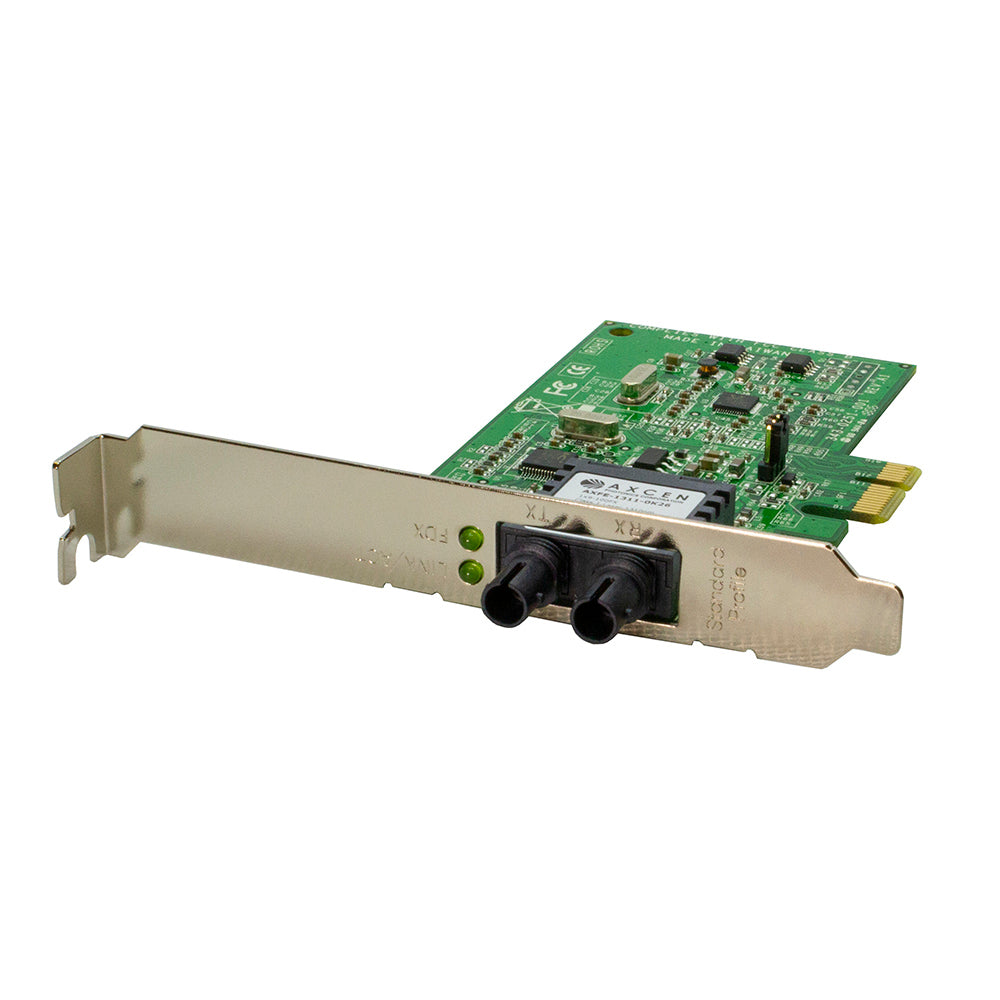

N-FXE-xx-02 Series is a Fiber Fast Ethernet to PCI-Express (PCIe) bus adapter that fully complies with all IEEE 802.3u and 100Base-FX standards. It provides up to 200Mbps full-duplex bandwidth capacity to support high-end systems. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking to users in a standards-based environment., The PCI-Express (PCIe) design gives you the maximum possible bandwidth and bus efficiency, along with low power consumption., For users equipped with PCI-Express systems, N-FXE-xx-02 Series provides the ability to easily build or connect to Fast Ethernet fiber networks.,
Lantronix - N-FXE-SC-02 - Features
- PCI-Express x1 Interface
- IEEE 802.3x Full-Duplex Flow Control
- Supports Multicast Frame Filtering
- Supports Asymmetric/Symmetric Flow control
- Supports IEEE 802.1Q VLAN tagging
- IPv6 capable
- Wake-on-LAN (WoL) power management
- Microsoft certified drivers
- PXE remote boot support
- UEFI (PC platform BIOS must support)
- Message Signaled Interrupts (MSI)
- Extended Message Signaled Interrupts (MSI-X)
- TCP Segmentation Offload (large send v1 and large send v2 support)
- RoHS Compliance
- Available with SC, LC and MT-RJ multimode fiber connectors
- Standard bracket attached, low-profile bracket included
- Compliant with PCIe Rev 1.1 interface
- Supports Jumbo Frame
- Supports ASF 2.0
- ACPI Supported
Specifications
Specifications
Lantronix - N-FXE-SC-02 - Specifications
| Device | Pc Cards |
|---|---|
| Device Technology | 100BASEFX |
| UNSPSC Code | 43201404 |
| Boot Server Support | PXE Boot ROM |
| Depth | 4.25" [108 mm] |
| Height | 2.70" [68.5 mm] |
| Power Consumption | 1.2 Watts (max), +3.3 VDC @ 0.7A |
| Operating | 0°C to 50°C |
| Storage | -15°C to 65°C |
| Humidity | 5% to 95% (non-condensing) |
