M.2 Gigabit Ethernet Fiber Network Interface Card for Dell OptiPlex 3060/5060/7060/7070 & 7080/7090 Micro PCs 1000Base-X

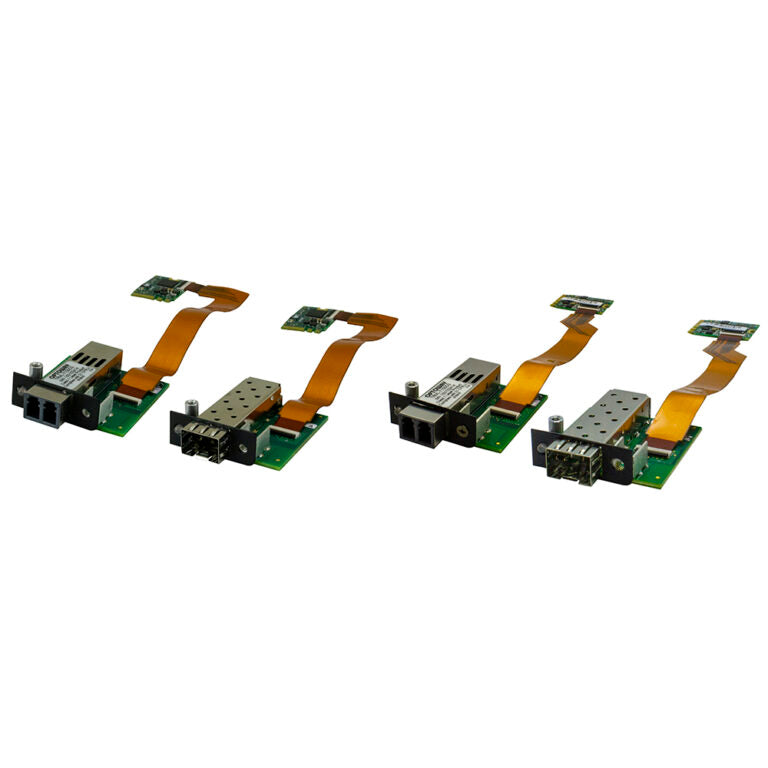

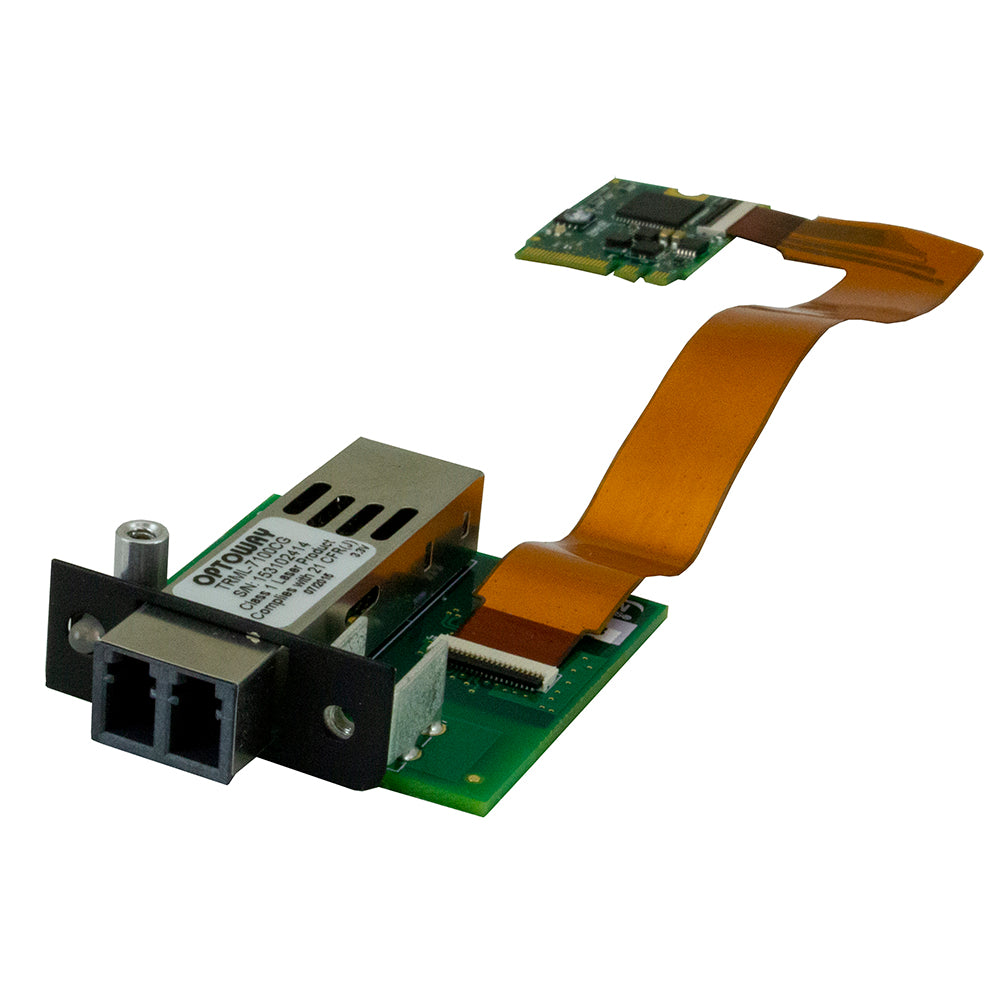

Lantronix M.2 Gigabit Ethernet Fiber Network Interface Card (NIC) provides a fiber optic interface for the Dell OptiPlex 3060/5060/7060/7070 and 7080/7090 Micro PCs. The NM2-GXE-2230-xx-201 Series consists of a M.2 NIC that installs into the OptiPlex Micro PC’s M.2 “A or E keyed” interface, a fiber optic adapter that installs into the OptiPlex Micro PC’s Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The fiber optic adapter is available with either a 1000Base-SX LC connector or an open SFP (SFP module sold separately). Please note the variation in versions within Ordering Information.
Lantronix - NM2-GXE-2230-LC-201A - Features
- PCI Express M.2 compliant
- A + E keyed M.2 interface
- Full duplex
- Flow control
- Wake on LAN (WOL)
- Smart Load Balancing (SLB)
- TCP Segmentation Offload (TSO)
- Message Signaled Interrupts (MSI)
- Extended Message-Signaled Interrupts (MSI-X)
- LACP support (Teaming)
- IPv6 Capable
- Supports UEFI
- Supports PXE boot
- Jumbo frame support 9014 bytes
- 1000Base-X open SFP interface
Specifications
Specifications
Lantronix - NM2-GXE-2230-LC-201A - Product Categories
- Networking
- Networking
- Repeater / Transceiver / Media Converter
Lantronix - NM2-GXE-2230-LC-201A - Technical Specifications
- Standards
- IEEE 802.3-2012
- Bus Slot
- M.2 – ‘2230-D4-A-E’
- Data Rate
- 1000 Mbps (full duplex only)
- Max Frame Size
- 9014 bytes
- Status LEDs
- LINK/ACT
- ON = Link
- Flashing = Activity
- Dimensions
- M.2 NIC
- 2230-D4-A-E
- Width: 0.87” [22 mm]
- Depth: 1.18” [30 mm]
- Height: 0.12” [3.08 mm]
- Fiber Interface
- Width: 1.65” [42 mm]
- Depth: 2.05” [52 mm]
- Height: 0.51” [13 mm]
- FFC Cable
- NM2-GXE-2230-xx-201: Length 5.013” [127.33 mm]
- NM2-GXE-2230-xx-201A: Length 4.911” [124.74 mm]
- Software Support
- Windows 10, 8, 8.1, and 7 (32/64 bit); Linux
- Power Consumption
- LC: 250mA @ 3.3V (0.8 Watts typical)
- SFP: 120mA @ 3.3V (0.4 Watts typical without SFP module)
- Power Source
- M.2 interface connector: 3.3V (Refer to table 41 of M.2 Specification)
- Environment
- Operating: 0°C to +45°C
- Storage: -40°C to 85°C
- Humidity: 5% to 95% (non-condensing)
- Altitude: 0 – 10,000 ft.
- Weight
- 0.1 lbs. [0.05 kg]
- Certifications
- CE Mark; Emissions: EN55032, FCC Part 15 Class B; Immunity: EN55024
- Warranty
- Lifetime
- https://www.alldataresource.com/assets/Lantronix/Lantronix-NM2-GXE-201-Series-Product-Brief.pdf
Lantronix - NM2-GXE-2230-LC-201A - Specifications
| Brand Name | Lantronix |
|---|---|
| Item Description | M.2 Network Interface Card And MM LC Media Converter, 65W |
| UNSPSC Code | 55101515 |
| Manufacturer Part Number | NM2-GXE-2230-LC-201A |
