Lantronix S3221-1040-SA | Stand-alone Gigabit Ethernet Remotely Man...
Description
Description

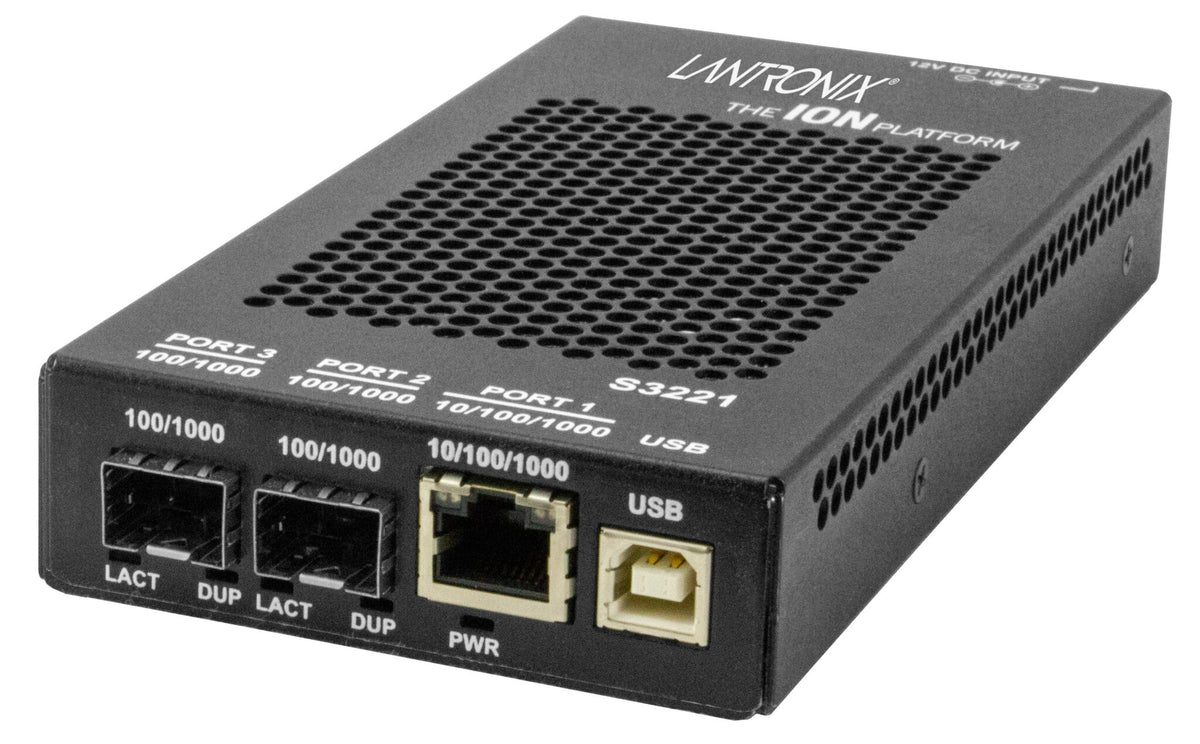

The ION S3220 is a stand-alone managed Network Interface Device (NID) that provides an interface between 10/100/1000Base-TX ports and 1000Base-SX/LX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely managed device, the S3220 can be managed individually via an IP address or it can be managed in-band, over the fiber when linked to a C3220 card installed in a managed ION chassis. With advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the S3220 offers a variety of methods for the secure delivery of mobile backhaul applications.
Lantronix - S3221-1040-SA - Features
- MEF 9, 14 and 21 certified
- IEEE 802.3ah Link OAM
- 10K Jumbo Frame Support
- Two selectable Remote Management modes:
- IP-Based Remote Management
- In-Band (remote device managed by local peer)
- Auto-MDI/MDIX
- Auto-Negotiation
- Pause
- Transparent Link Pass Through
- Far-End-Fault (FEF)
- Remote Loopback
- Field Upgradeable Firmware
- IEEE 802.1p QoS packet classification
- IPv4 IP TOS, DiffServ and IPv6 traffic class QoS classification
- IEEE 802.1Q VLAN and double VLAN tagging with 4096 VIDs
- DHCP client
- SNTP
- TFTP
- RADIUS client
- RMON counters for each port
- Bandwidth profiling
- DMI Optical Management
- Cable diagnostic function for copper ports
- SSH
- Telnet
- Command Line Interface (CLI)
- Web management
- Focal Point Management
- SNMP v1, v2c, and v3
- USB port for basic setup
- Management VLAN
Specifications
Specifications
Lantronix - S3221-1040-SA - Specifications
| Filtering Addresses | 8K MAC Addresses |
|---|---|
| Max Frame Size | 10,240 bytes |
| Width | 3.25" [82 mm] |
| Depth | 6.5" [165 mm] |
| Height | 1" [25 mm] |
| Power Input | 100-240 VAC,1A |
| Power Output | 12 VDC, 1.25A |
| Operating | 0°C to +50°C |
| Storage | -25° to +85°C |
| Humidity | 5% to 95% (non-condensing) |
