Lantronix S6010-3040-NA | T1/e1 Ion Stand-alone Devices (2) Coax (bnc) To Sfp Slot (empty)
Regular price
$742.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lantronix S6010-3040-NA | T1/e1 Ion Stand-alone Devices (2) Coax (b...
Regular price
$742.48
Unit price
Description
Description

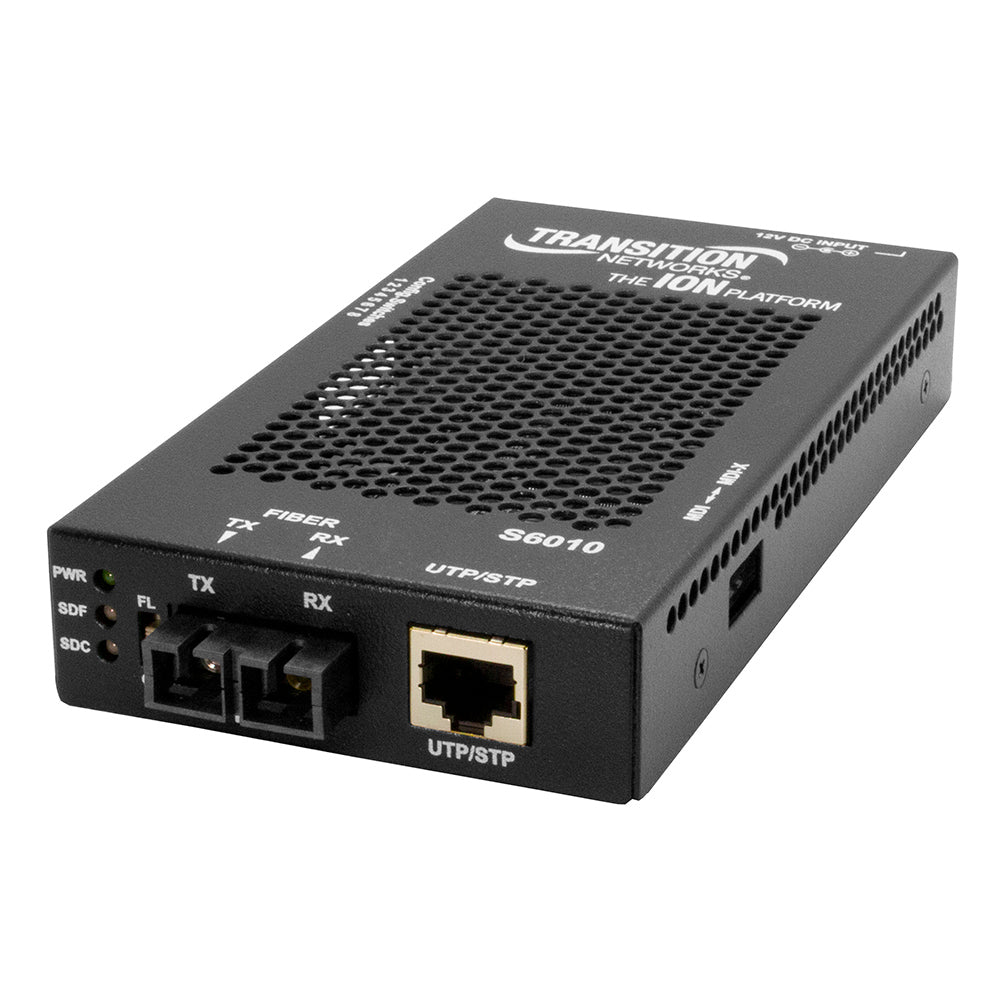

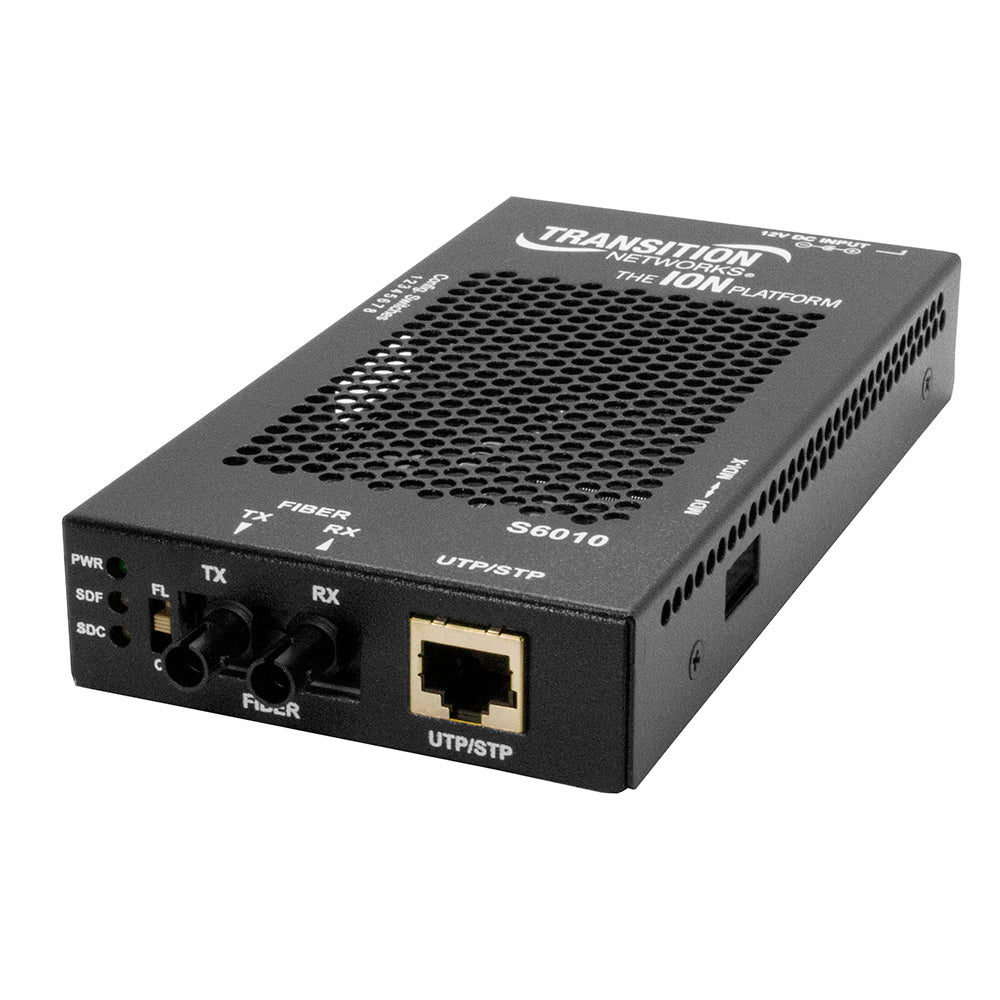

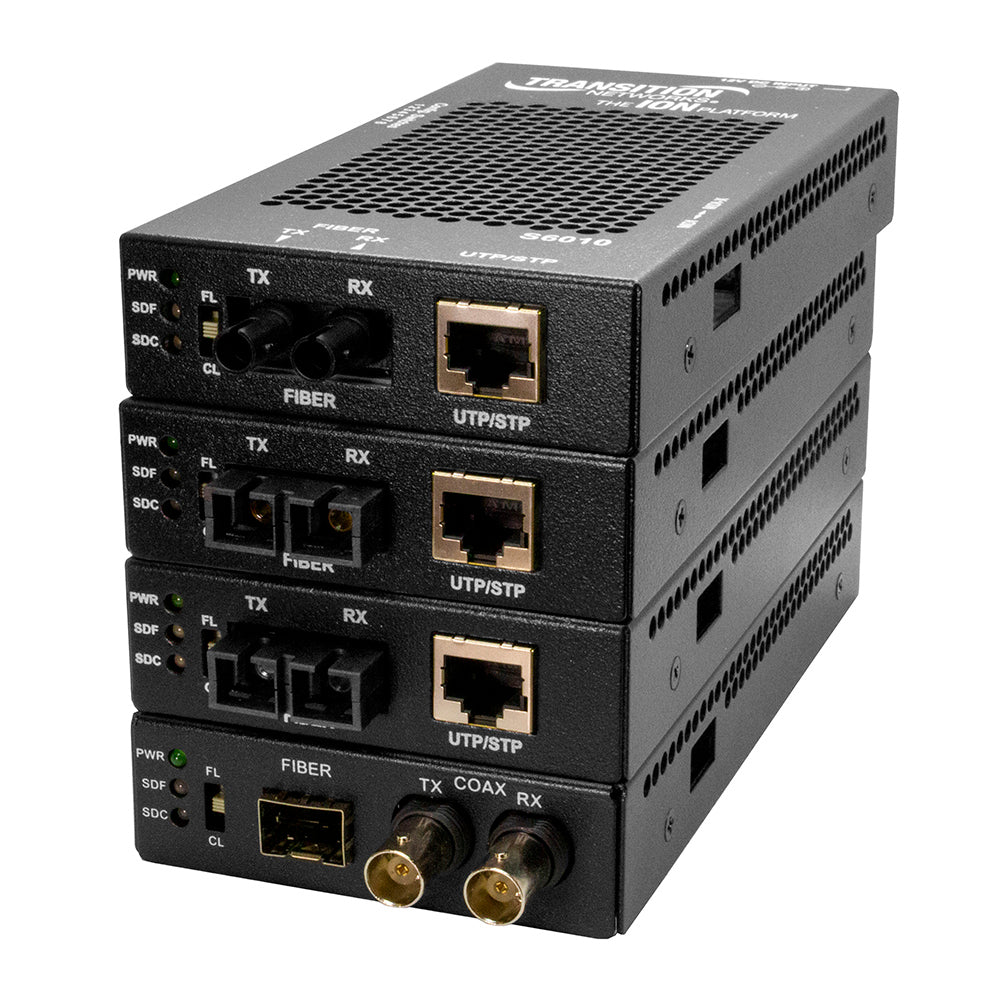

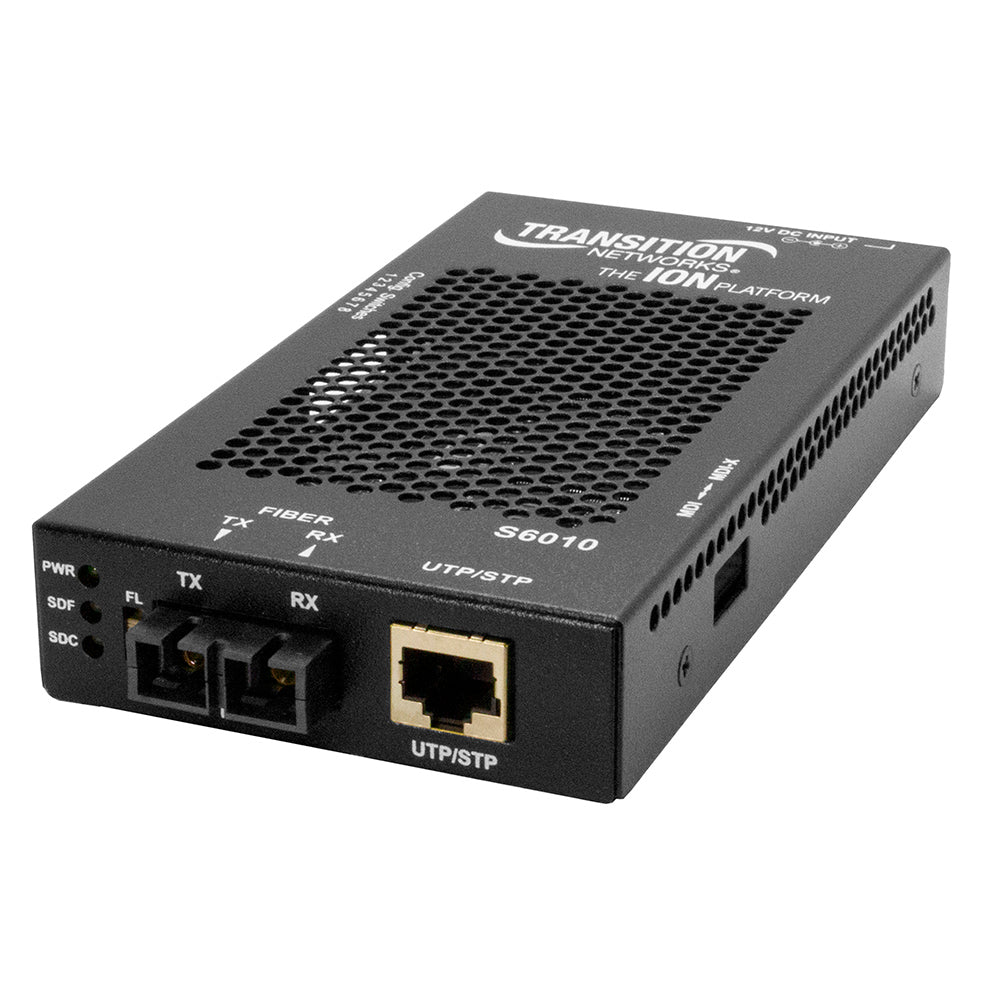

The ION S6010 is a stand-alone managed media converter that offers a solution for extending DS1 – T1/E1 or PRI connections over fiber optic cabling. It provides fiber extension though a twisted pair RJ-48 port and a fiber port. These DS1 – T1/E1 converters must be used in pairs, one on each end of the fiber link. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6010 is linked to a C6010 card installed in a managed ION Chassis. These DS1 – T1/E1 converters are available with fixed fiber connectors or an open SFP slot, with support for various fiber types, distances, and wavelengths to provide maximum flexibility for any network topology. CWDM SFPs can also be used to further increase the bandwidth capacity of the fiber infrastructure.
Key Features
- Remote in-band management
- Local or Remote Loopbacks – Copper or Fiber
- Switch selectable for T1 or E1
- Remote firmware upgrade
- LEDs for immediate visual status
- Supports dual or single fiber
- Supports multimode and single mode fiber at a variety of distances
- Supports CWDM SFPs
- SNMP management when used with ION chassis and management module
- Remote stand-alone can be managed by local peer
- Extend PRI over fiber
- Must be used in pairs
Specifications
Specifications
Specifications
| Standards | ANSI T1.102 T1.402 T1.408 ITU I.431 G.703 G.736 G.775 G.823 ETSI 300-166 300-233 TBR12/12 |
|---|---|
| Connectors | Copper Connectors RJ-48, BNC Fiber Connectors SFP: LC connector Uses standard 100Base-X/OC-3 SFP Fixed Optics: ST or SC connector |
| Data Rate | T1 = 1.544 Mbit/s, E1 = 2.048 Mbit/s |
| Status LEDs | Power, Signal Detect Copper, Signal Detect Fiber |
| Dimensions | Width: 3.25” [82 mm] Depth: 6.5” [165 mm] Height: 1" [25 mm] |
| Power Consumption | 2.6 Watts |
| Power Input | 100-240 VAC |
| Power Output | 12 VDC |
| Environment | Operating: -10°C to 65°C Humidity: 5% to 95% (non-condensing) Altitude: 0 – 10,000 ft. |
| Weight | 2 lbs. [0.90 kg] |
| MTBF | With Power Supply: Greater than 41,660 hours (MIL-HDBD-217F) Greater than 114,580 hours (Bellcore) Without Power Supply: Greater than 250,000 hours (MIL-HDBD-217F) Greater than 687,000 hours (Bellcore) |
| Certifications | CISPR/EN55022 Class A, FCC Class A, CE Mark, UL60950 |
