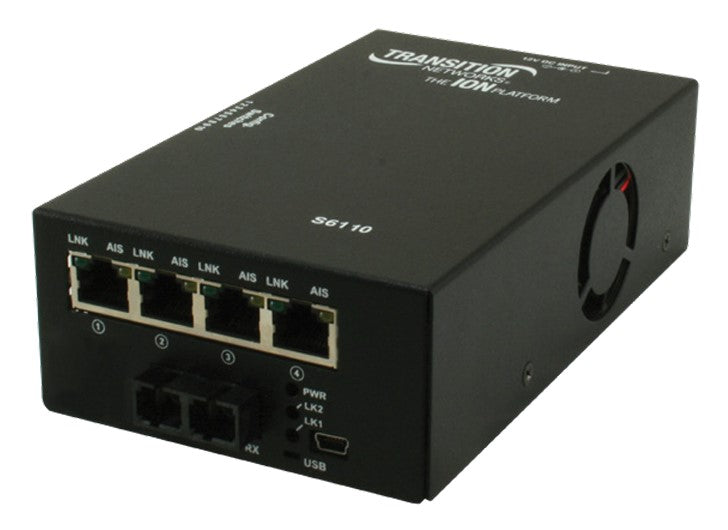

![Lantronix S6110-1014-BR | S6110 Series Ion 4xt1/e1/j1 Copper To Fiber Network Interface Device Without Ethernet, Port One: (1) 1310 Nm Single-mode (lc) [20 Km/12.4 Mi], Port Two: (4) Rj48 [1.5 Km/0.9 Mi], Br](http://www.alldataresource.com/cdn/shop/files/Lantronix-S6110-1014-BR-Network-Interface-Device-Main.jpg?v=1786547576&width=1500)
Loading...
Brand: Lantronix
|
SKU:
587427
Lantronix S6110-1014-BR | S6110 Series Ion 4xt1/e1/j1 Copper To Fiber Network Interface Device Without Ethernet, Port One: (1) 1310 Nm Single-mode (lc) [20 Km/12.4 Mi], Port Two: (4) Rj48 [1.5 Km/0.9 Mi], Br
Regular price
$1,165.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lantronix S6110-1014-BR | S6110 Series Ion 4xt1/e1/j1 Copper To Fib...
Regular price
$1,165.14
Unit price
Description
Description
The ION 4xT1/E1/J1 copper to fiber network interface device (NID) provides a solution for those users that need to extend multiple T1/E1 connections over fiber. The ION 4xT1/E1/J1 supports Small Form Pluggable (SFP) transceivers to support a variety of fiber types, distances and wavelengths to provide maximum flexibility across a variety of network topologies. The use of Coarse Wave Division Multiplexing (CWDM) SFPs can be utilized to further increase the bandwidth capacity of the fiber infrastructure. The ION 4xT1/E1/J1 NID must be used in pairs. A typical installation will include a chassis card installed in the ION Platform locally and a standalone device installed at the remote location
Specifications
Specifications
Applications
- T1/E1/J1 Extension Over Fiber, Mobile Backhaul, Business Customers
- 4 x RJ48 copper interfaces
- (1) fiber interface (fixed or SFP) 2 SFP ports on S6111-1040 model
- Loopback via test set
- Local and remote loopbacks
- LEDs for device status and troubleshooting
- Settings for line code, line build out, loopbacks and Alarm Indtion Signal (AIS)
- Access to complete status and configuration on local and remote device
- Remote firmware upgrade
- Remote management
- Extended operating temperature
Specification Description
- Item: ION 4xT1/E1/J1 Copper to Fiber Network Interface Device Without Ethernet
- Single-mode: Min TX PWR: -15.0 dBm, Max TX PWR: -8.0 dBm, RX Sensitivity: -31.0 dBm, Max In PWR: -8.0 dBm, Link Budget: 16.0 dB
- Switches: Numerous Switch Settings For Line Coding, Line Build Out, Loopback and AIS
- Data Rate: Copper Ports (RJ48): T1(J1) = 1.544 Mbps, E1 = 2.048 Mbps
- Status LEDs: Power, Port Status, Loopback And AIS
- Power Consumption: 6 Watt Maximum For Dual Fiber Model
- Environmental Conditions: -10 to 65 g C Operating Temperature; -40 to 85 deg C Storage Temperature; 5 - 95% Humidity Non-Condensing
- Port One: (1) 1310 nm Single-mode (LC) [20 km/12.4 mi]
- Port Two: (4) RJ48 [1.5 km/0.9 mi]
- Dimension: 3.700 Inch Width x 6.500 Inch Depth x 1.800 Inch Heigh
Tech Info
- ANSI T1.102, T1.403 and T1.408, ITU I.431, G.703, G.736, G.775 and G.823, ETSI 300-166, 300-233 and TBR12/13 AT&T Pub 62411- EN55022 Class A, EN55024, CE Mark
Specifications
| Device | MEDIA CONVERTERS |
|---|---|
| Port 1 Device Technology | SINGLE-MODE |
| UNSPSC Code | 43201553 |
