Brand: Lantronix
|
SKU:
587473
Lantronix SGETF1040110BR | Gigabit Ethernet Media Converter, Port One: 1000base-t (rj45) [100 M/328 Ft], Port Two: Sfp Slot (empty), Br
Regular price
$433.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lantronix SGETF1040110BR | Gigabit Ethernet Media Converter, Port O...
Regular price
$433.57
Unit price
Description
Description

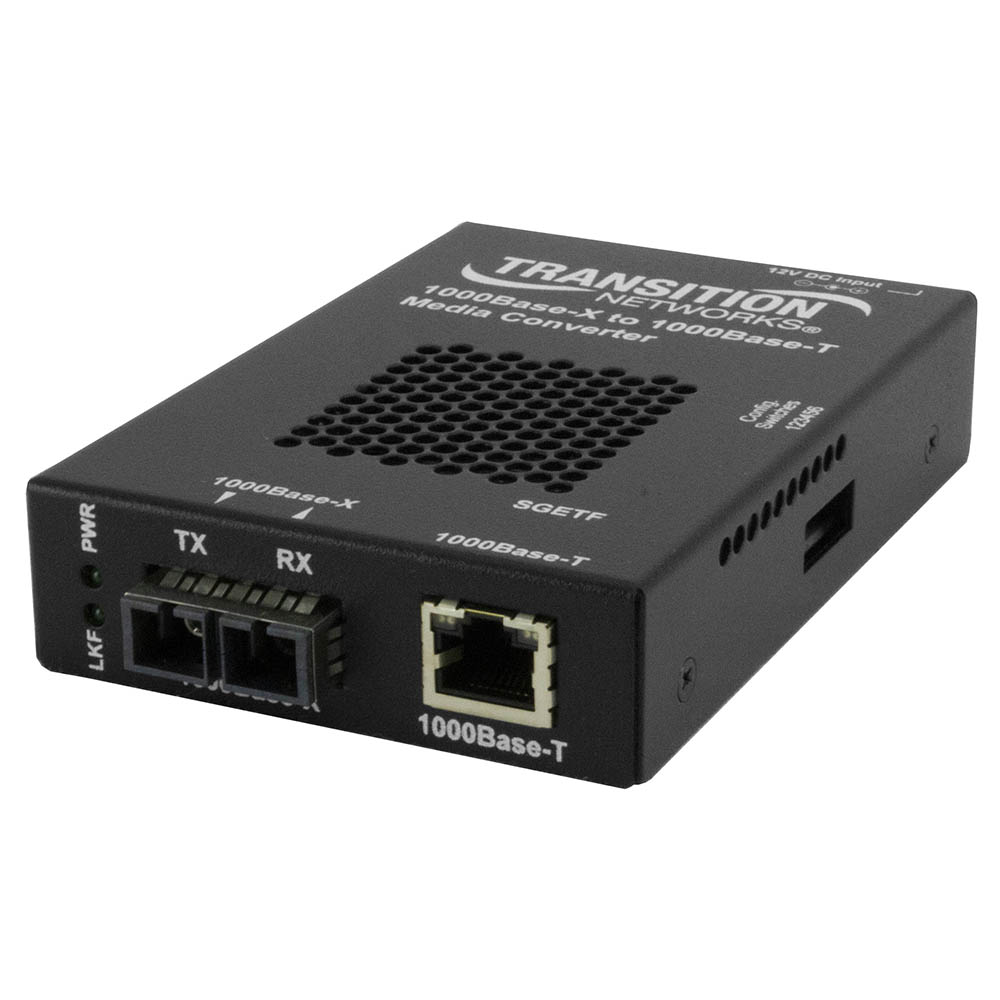

The SGETF Series is a stand-alone media converter that provides an interface between 1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 1000Base-T copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Key Features
- Auto-MDI/MDIX
- Copper & Fiber Auto-Negotiation
- Transparent Link Pass Through
- Automatic Link Restoration
- Pause
- Remote Fault Detect
Specifications
Specifications
Specifications
| Standards | IEEE 802.3ab IEEE 802.3z |
|---|---|
| 6-Position Switch | SW1: Remote Fiber Fault Detect (Down=Enabled) SW2: Symmetric Pause SW3: Asymmetric Pause SW4: Transparent Link Pass Through (UP=Enabled) SW5: Fiber Auto-Negotiation (Down=Enabled) SW6: Loopback (Down=Enabled) |
| Status LEDs | PWR (Power): Steady green LED indicates connection to external AC power RXF (Fiber receive): Flashing LED indicates reception of data on fiber link LKF (Fiber link): Steady LED indicates fiber link connection RXC (Copper receive): Flashing LED indicates reception of data on copper link LKC (Copper link): Steady LED indicates copper link connection |
| Dimensions | Width: 3.25” [82.55 mm] Depth: 4.8” [121.92 mm] Height: 1" [25 mm] |
| Power Consumption | 5.4W, 450mA @ 12VDC |
| Power Supply | External AC/DC required; 12 VDC, 0.8A min Output; 120-240VAC input |
| Environment | Operating: 0°C to 50°C Humidity: 5% to 95% (non-condensing) Altitude: 0 – 10,000 ft. |
| Weight | 2 lbs. [0.90 kg] |
| MTBF | 382,000 hours (MIL217F2 V5.0) (MIL-HDBK-217F) 1,345,000 hours (Bellcore7 V5.0) |
| Certifications | Safety: Wall Mount Power Supply: UL Listed, cUL Listed (Canada); FCC Class A, CISPR22/EN55022 Class A, EN55024, EN61000, CE Mark |
| Warranty | Lifetime |
