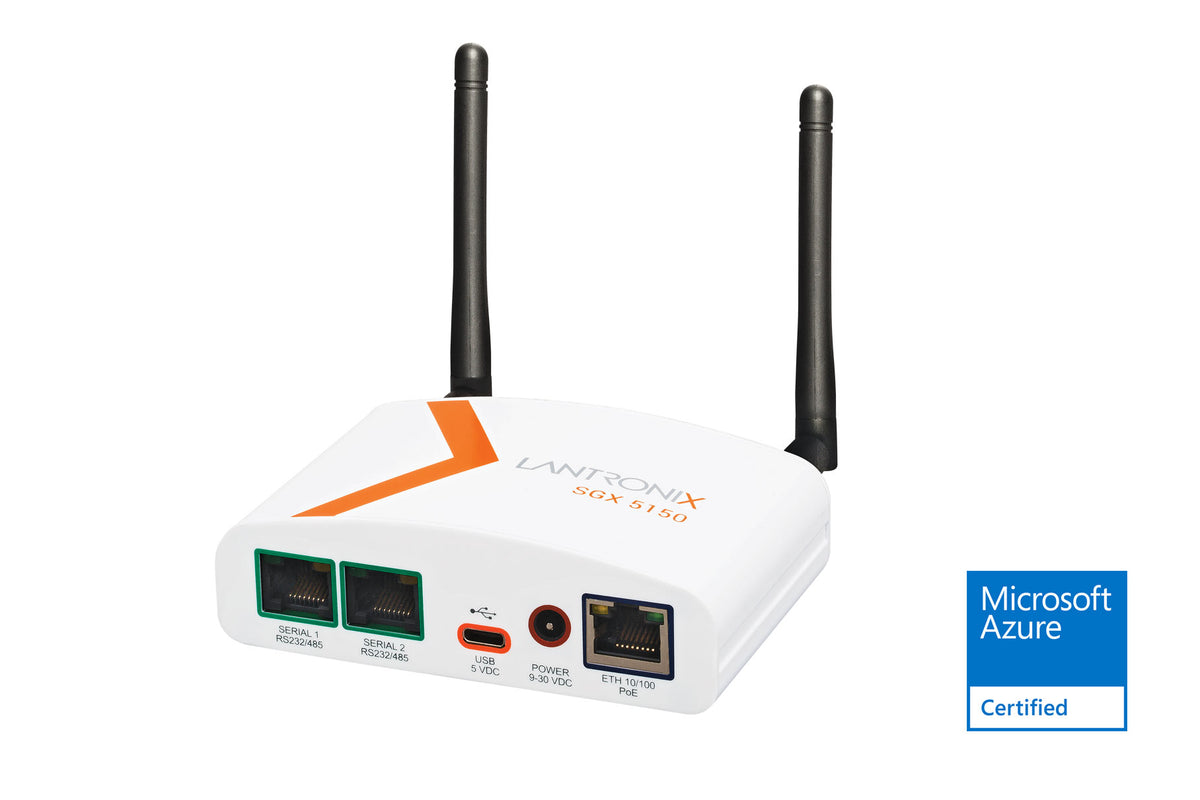

Lantronix SGX5150000US | SGX 5150 IoT Device Gateway, Wireless 802.11a/b/g/n/ac, USB, 10/100 Ethernet, US

Lantronix - SGX5150000US - Product Categories

• Hardware and Supplies
• Tools and Supplies
• Miscellaneous

Lantronix - SGX5150000US - Overview

• Connect Your Business-Critical Assets and Data Securely to the Enterprise Network
• High Performance Wi-Fi
• IoT devices require trustworthy wireless connections. The SGX 5150 is equipped with industry-leading high-performance 5GHz (802.11ac)
• Wi-Fi which ensures reliable and persistent wireless enterprise connections and bandwidth for high-speed data processing.
• Enterprise Class Security
• InfiniShield security offers a comprehensive suite of built-in device security software with minimal integration effort for designers and
• developers. Secure data communications is provided through features such as secure boot, secure firmware updates, secure communications, data-at-rest protection and role-based access control
• Essential IoT Applications
• Accelerate your IoT business solutions with IoT applications that deliver multi-interface connectivity, full networking, industry-leading device configuration management and with our newest addition to the SGX family the XL version, meets the needs of customers looking for increased storage of valuable data, without the need to buy flash storage with an external USB flash drive for purposes of data collection locally to the SGX 5150 XL.
• Multi-Interface Access
• The SGX 5150 provides an elegant and robust solution for customers seeking compatibility with multiple devices. Utilizing singular or dual RS232/485 serial ports, USB 2.0 with host and device modes or Ethernet interface options are available.

Lantronix - SGX5150000US - Technical Specifications

• Wireless Specifications
• 5G Wi-Fi (IEEE 802.11ac)
• 1×1 ac (MCS0 – MCS9)
• 20, 40 and 80 MHz Channels with optional SGI
• IEEE 802.11 n
• 1×1 n (MCS0 – MCS7)
• 20 MHz and 40 MHz channel width with optional SGI
• Advanced 802.11 n/ac Features
• Transit Beamforming
• Tx/Rx Low Density Parity Check (LDPC)
• Rx Space Time Block Coding (STBC)
• Bluetooth/WLAN Coexistence
• Compatible with IEEE 802.11 a/b/g and Supports IEEE 802.11 d/h/j/i
• Dual band 2.4 GHz and 5 GHz
• 412 GHz – 2.484 GHz – Channels 1 – 14
• U-NII-1 (5.15 – 5.25 GHz) Channels 36, 40, 44, 48
• U-NII-2 (5.25 – 5.35 GHz) Channels 52, 56, 60, 64
• U-NII-2e (5.47 – 5.725 GHz) Channels 100 – 140
• U-NII-3 (5.725 – 5.825 GHz) Channels 149 – 165
• Ethernet Specifications
• IEEE 802.3 MAC and PHY, 10BaseT and 100BaseT
• 3at Class 2 Powered Device
• Auto-Negotiation/Auto MDIX, Full-duplex and Half-duplex
• USB Specifications
• Configurable USB 2.0 HS/FS port with USB type C connector
• USB Device (default setting) powered by a VBUS 5V
• USB configurable host can provide VBUS 5V 0.5A (power supply or PoE)
• Physical Interface
• 2xRJ-45 Serial Ports, can be RS-232 or Multi-protocol RS-232/422/485
• Data rates – up to 921 Kbps
• 15 KV ESD Protection
• USB port – Type C Host / Device Connector
• RJ-45 Ethernet port, 10/100Mbps, 1.5 KV Surge Isolation
• Reset Button
• WPS Button
• Barrel jack for 9-30VDC power input
• Led Indicators
• System Status
• Wi-Fi Wireless Signal Strength
• Green/Red Simplified Diagnostics
• RJ-45 Ethernet (Activity/Link) – status handled through ports
• Protocols
• DHCP Client, DHCP Server, DHCPv6 Client
• uPnP (Discovery), LCAP (77FE), Telnet, (S)FTP, HTTP(S)
• IPv4/IPv6, TCP, UDP, ICMP, ARP, Auto-IP, DNS, SNMP v2/v3
• TruPort Security
• FIPS 140-2 Level 1 Certification*
• WLAN Security
• AES/CCMP and TKIP encryption, 802.11i
• WPA/WPA2 Pre-Shared Key (PSK) or IEEE 802.1X, AES-CCMP
• Enterprise Security (WPA2-Enterprise)
• EAP-TLS
• EAP-TTLS (MS-CHAPv2)
• EAP-PEAPv0/EAP-MS-CHAP v2)
• EAP-PEAPv1
• EAP-FAST
• Management Interfaces
• DeviceInstaller
• Web Manager (HTML5 Browser HTTP/HTTPS)
• CLI (over serial ports, telnet or SSH)
• OTA Field upgradeable
• Supports SNMP v2, V3
• XML Configuration records via
• CLI or FTP
• Wireless Features
• Soft Access Point
• Wi-Fi Direct
• Multiple Soft AP Connections
• Simultaneous Soft AP and Client mode
• Secure Com Port Redirector
• Environmental
• Extended Operating Temp: -40° to 70° C
• (-40° to 158° F)
• Extended Storage Temp: -40° to 85° C
• (-40° to 185° F)
• IP Rating: 30
• Relative Humidity: 5 to 95%, Non-condensing
• ESD tolerance: Contact Discharge= 4Kv; Air Discharge=15Kv
• Power
• Input: DC barrel, 9-30 VDC (standard)
• Input: Power over Ethernet (optional)
• Input: USB Type C I/O connector
• Power Consumption = 1.9W typical without USB Load
• Power Consumption = 5.5W max with
• USB Load
• Optional Power Supply — (100-240 VAC, 50-60 Hz, 12 VDC @ 1A) with regional adapters
• Output: 5V / 500 mA via USB Type C connector (in Host mode) when used with the Optional Power Supply
• Certifications
• FCC Part 15 Subpart B, Class B, Subpart C 15.247, Subpart E 15.407
• ICES-003:2012 Issue 5, Class B, RSS-Gen, Issue 4, 2014, RSS-102, Issue 5, 2015, RSS-247, Issue 1, 2015
• RED 2014/53/EU, EMCD 2014/30/EU, EN 300 328 V1.9.1, EN 301 489-1 V1.9.2, EN301 489-17 V2.2.1, EN 301 893 V1.8.1, EN 62311: 2008
• AS/NZS CISPR 22, AS/NZS 4268: A1: 2013, AS/NZS 2772.2VCCI, Japan Radio Cert Article 2-1 (19), (19-2), (19-3), (19-3-2)
• EN 55022:2010, EN 55024:2010, EN 61000-3-2:A2 2009, EN 61000-3-3: 2008
• UL 60950/CSA 22.2 No. 60950, IEC 60950 (or 62368-1)
• CE LVD 2014/35/EU, (CB, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 +A2 2013) or (62368-1)
• Physical Dimensions
• Dimensions: 10.8 cm (4.3 in) x 7.2 cm (2.8 in) x 3.3 cm (1.3 in)
• Weight: 0.35 kg (0.77 lb)
• Warranty
• Industry-leading 5-Year Limited Warranty
