Lantronix SI-IES-111D-LRT | Unmanaged Hardened PoE+ Injector/Converter
Regular price
$409.28
Unit price
Description
Description
The SI-IES-111D-LRT is a (2) port unmanaged hardened PoE+ injector that adds up to 30 Watts of power from it’s PoE+ Port onto a network segment. The gigabit speed SFP slot provides the ultimate flexibility by allowing fiber SFP uplink ports with varying communication distances.
Key Features
- IEEE 802.3at PoE+ to supply 30 Watts on 10/100/1000Base-T port
- Supports IEEE 802.3af
- Supports dual speed for SFP slot
- Non-blocking architecture
- Compact size
- IP31 housing protection
- Link Pass Through
- Extended operating temperature (-40°C to 75°C)
- DIN Rail mount / optional wall mount brackets included
- Full/half-duplex flow control
- Auto-MDI/MDIX
- Auto-Negotiation
- Store-and-forward transmission
- 10K byte jumbo frames
Specifications
Specifications
Specifications
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3at IEEE 802.3z IEEE 802.3af |
|---|---|
| Max Jumbo Frames | 10K byte jumbo frames |
| Connectors | (1) DATA IN 100/1000Base-X SFP Ethernet Port (1) DATA OUT 10/100/1000Base-T PoE+ RJ-45 Ethernet Port 30 Watts |
| Data Rate | 10/100/1000 Mbps |
| Status LEDs | Copper Port: Link/ACT Copper Port: Gigabit Transmission SFP Port: Link/ACT PoE Power Input Power |
| Dimensions | Width: 1.44” [36.7 mm] Depth: 3.72” [94.5 mm] Height: 4.26” [108.4 mm] |
| Power Consumption | 3.53 Watts (No PoE) 32.725 Watts (1 port PoE) |

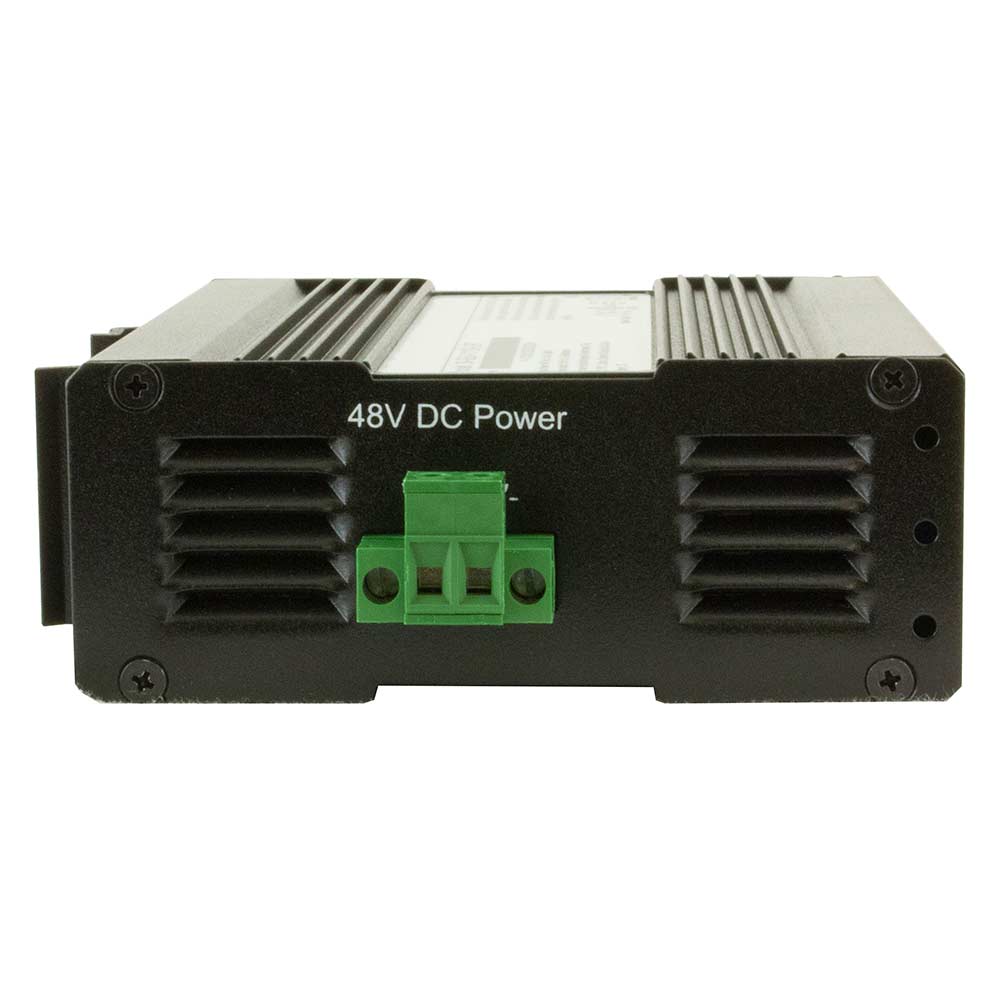

| Power Input | 48-57VDC Higher Voltage (50-53VDC) may be required for some high powered PD loads |
| Ingress Protection | IP31 |
| Environment | Operating: -40°C to 75°C Storage: -40°C to 85°C Humidity: 10% to 95% (non-condensing) Altitude: 0 – 10,000 ft. |
| Weight | 1.3 lbs. [0.59 kg] |
| MTBF | 743,594 Hours Bellcore Ground Benign, Controlled; Temp 30°C 653,092 Hours Bellcore Ground Fixed, Uncontrolled; Temp 30°C |
| Number of Ports | 1-4 PORTS |
| Type | MIDSPAN |
| UNSPSC Code | 43222600 |
