Brand: Lantronix
|
SKU:
10024554

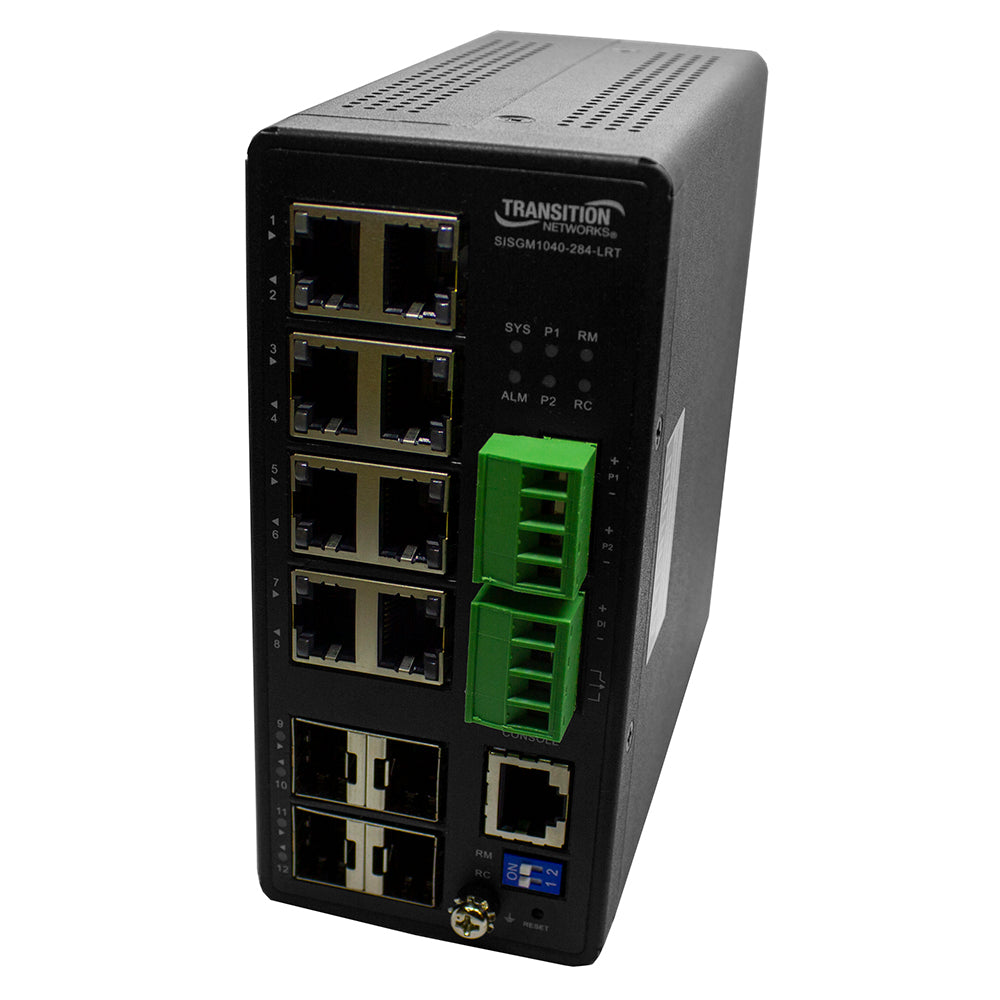

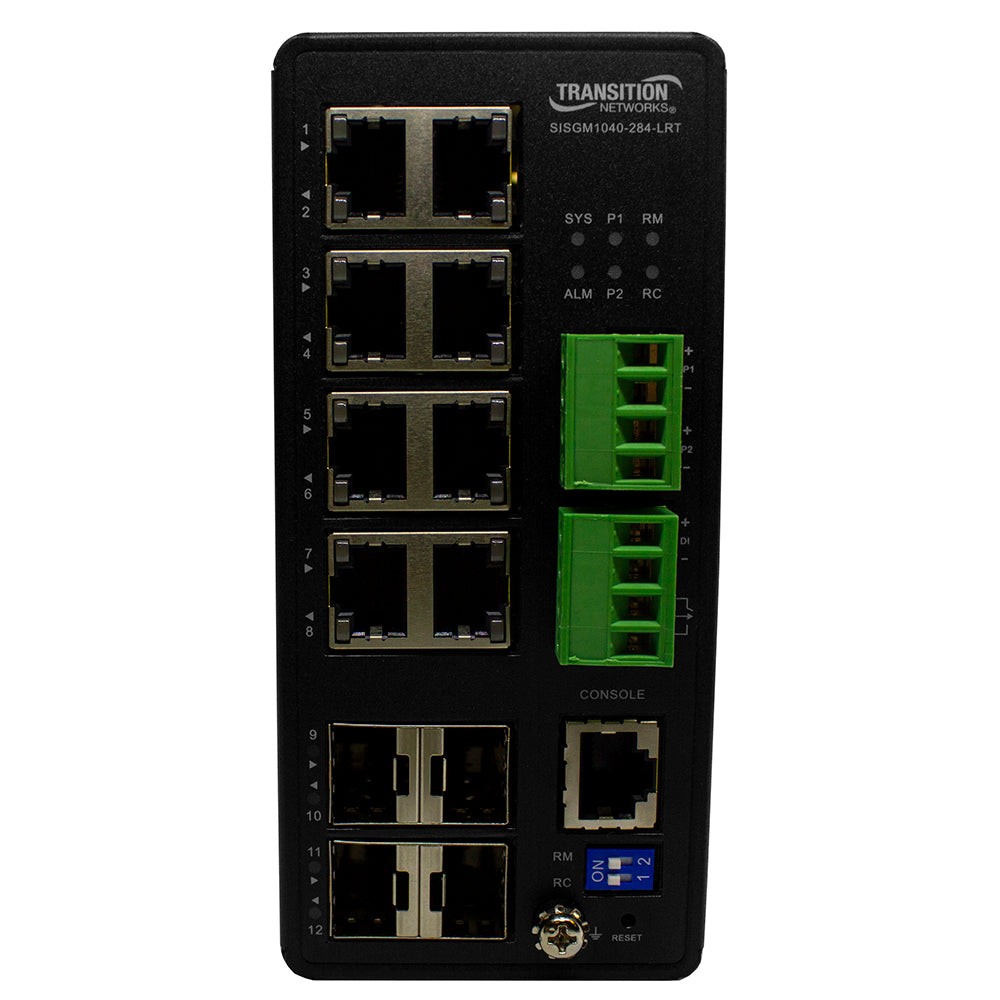

Lantronix SISGM1040284LRT | Managed Hardened Switch, (8)10/100/1000base-t, (4)100/1000 Sfp
Regular price
$980.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lantronix SISGM1040284LRT | Managed Hardened Switch, (8)10/100/1000...
Regular price
$980.66
Unit price
Description
Description
The SISGM1040-284-LRT is a managed switch suitable for connecting devices in hardened environments. The switch has 24Gbps switching capacity. The switch also includes the embedded Device Management System (DMS) software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost, less downtime and easier management of the entire network.
Key Features
- Store-and-Forward Architecture with 24 Gbps Switching Bandwidth
- IPv4/IPv6 dual protocols
- Supports Jumbo frames up to 9K Bytes
- Rapid Ring for fast recovery
- Radius, TACACS+, User Authentication
- Supports LLDP Protocol
- IEEE 1588 v2 PTP
- Port Mirroring
- Syslog
- Static routing
- Port Security, IP Source Guard
- Web / SNMP v1,v2c,v3 / SSH / CLImanagement
- DHCP Relay, DHCP Snooping, DHCP Server
- Port based network access control (IEEE 802.1X)
- L2/L3/L4 ACLs Support MAC, VLAN ID or IP address, protocol, per port
- Port Trunk: Supports IEEE 802.3ad port trunk with link aggregation control protocol (LACP) and static trunk
- Multicast: Support IGMP Snooping V1/V2/V3, MVR, MLD Snooping V1/V2
- Quality of Service: Supports 8 hardware queues. Strict priority and WRR, Ingress policer, Egress shaping and per port rate control
- Spanning Tree: Supports IEEE 802.1s MSTP, IEEE 802.1w RSTP and IEEE 802.1d STP Compliant
- VLAN: Port Based VLAN, IEEE 802.1Q tag-based, up to 4k VLAN entries, Q-in-Q, MAC-based VLAN, Management VLAN, Voice VLAN, Private VLAN
- Firmware Update through TFTP and HTTP/HTTPs
- Media Redundancy Protocol (MRP)
Specifications
Specifications
Device Management System
- Graphical Monitoring – Topology view, Floor view, Map view
- Traffic Monitoring
- Troubleshooting – Network diagnostic, protection mechanism, performance and link management
Specifications
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3ab IEEE 802.3x IEEE 802.3az IEEE 802.3ad IEEE 802.1p IEEE 802.1Q IEEE 802.1w IEEE 802.1s IEEE 802.1AB IEEE 802.1ad IEEE 802.3ah IEEE 802.1ag IEEE 802.1D IEEE 802.1X IEEE 1588 v2 ITU-T Y.1731 ITU-T G.8031 ITU-T G.8032 IEC62439-2 |
|---|---|
| MAC Address | 8K |
| Backplane | 24Gbps |
| Protocol Technology | CSMA/CD Store-and-Forward Switching Architecture |
| Connectors | (8) 100/1000 RJ-45 (4) 100/1000 SFP (1) Console RJ-45 |
| Dimensions | Width: 2.4” [62 mm] Depth: 5.3" [135 mm] Height: 5.4” [130 mm] |
| Power Consumption | 11 Watts (max) |
| Power Input | 12 - 48VDC; dual inputs terminal block |
| Ingress Protection | IP30 |
| Environment | Operating: -40°C to +75°C (DC Input) |
| Weight | 2.2 lbs. [1 kg] |
| MTBF | 193,332 Hours |
