Lantronix SM4T4DPA-SA | Layer 2 Managed Switch, Port One: (4) 10/100/1000base-t, Port Two: (4) 100/1000base-x Sfp Slots, Sa
Regular price
$545.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lantronix SM4T4DPA-SA | Layer 2 Managed Switch, Port One: (4) 10/10...
Regular price
$545.46
Unit price
Description
Description

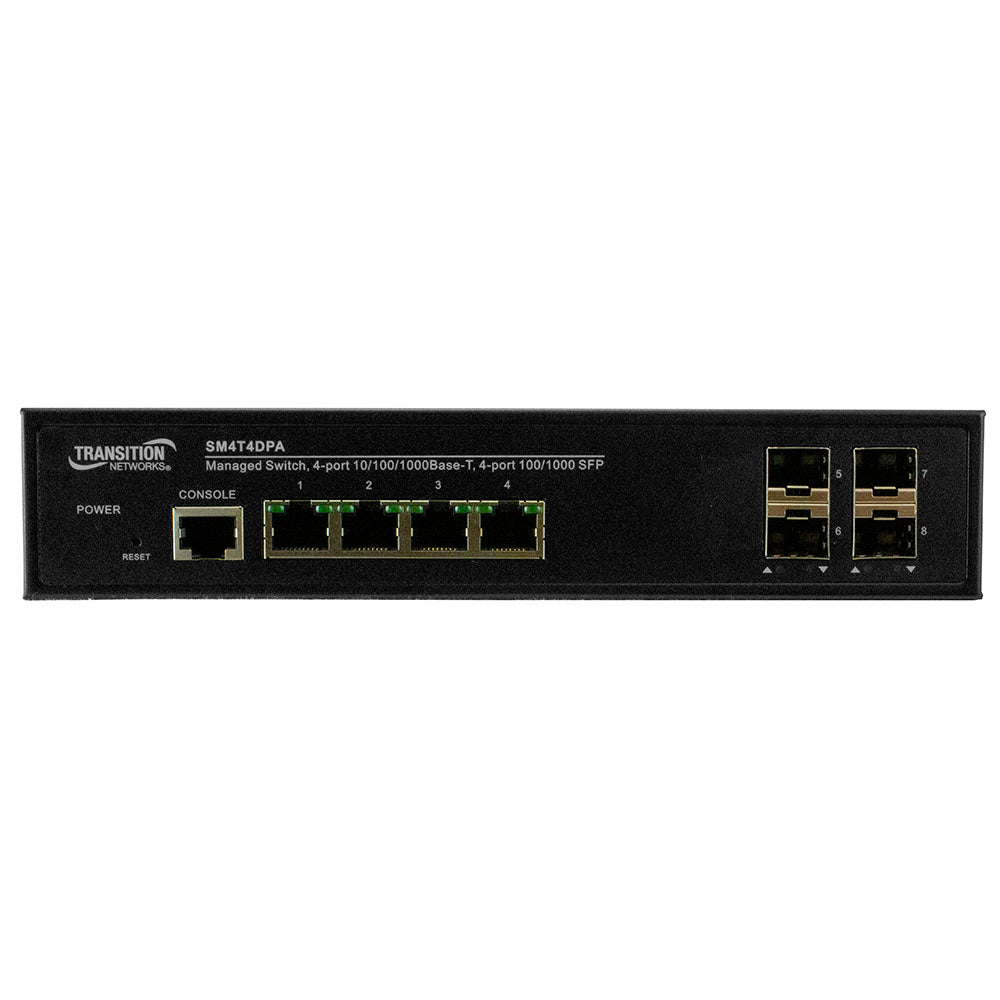

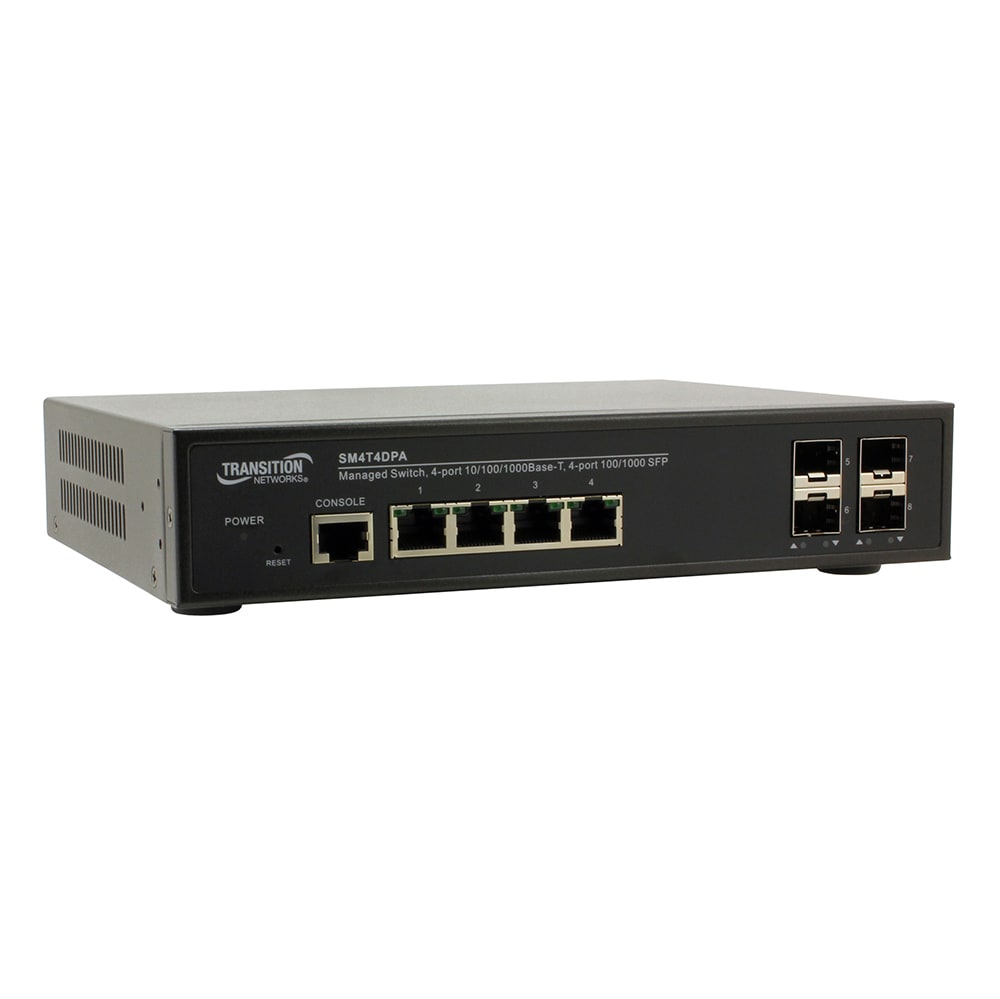

This switch is a high performance Layer 2 managed switch with (4) 10/100/1000Base-T copper ports and (4) dual speed 100/1000Base-X SFP slots.
Key Features
- Supports Jumbo Frame up to 9K bytes
- Authentication – RADIUS IEEE 802.1X, TACACS+
- Security – Supports SSH/SSL
- Port based or tagged (IEEE 802.1Q) VLAN, QinQ double tag VLAN, Guest VLAN
- Bandwidth Allocation Ingress and Egress
- DHCP Snooping including option 82
- IP-MAC binding for security
- ACL based on Ethernet Type / ARP / IPv4 for packets permit or deny, ratelimitation and port copy
- LLDP (Link Layer Discovery Protocol)
- SYSLOG for device management
- IEEE 802.3az Energy Efficiency
- Single IP management
- Web Management, SNMP V1/V2c/V3, Telnet, CLI
- Supports IEEE 802.3ad port trunk with link aggregation control protocol (LACP)
- Support IGMP Snooping V1/V2/V3, IGMP Proxy and GVRP
- Supports 8 hardware queues with Strict priority and WRR. Per port bandwidth management
- Supports IEEE 802.1s MSTP, IEEE 802.1w RSTP and IEEE 802.1D STP Compliant
- Port Based VLAN, IEEE 802.1Q tag based, 4096 VLAN entries, MAC-based VLAN, Private VLAN Edge, Priority VLAN override
- Firmware Update, configure backup/ restore through Web GUI and TFTP
- Support IPv4/IPv6 dual protocol stack
- Redundant Ring Protection Protocol
Specifications
Specifications
Specifications
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3x IEEE 802.3ad IEEE 802.1D IEEE 802.1w IEEE 802.1X IEEE 802.1s IEEE 802.1Q IEEE 802.1p IEEE 802.1ad IEEE 802.1AB IEEE 802.3az |
|---|---|
| Connectors | (1) RJ-45 console port (4) 10/100/1000 RJ-45 ports (4) 100/1000 SFP slots |
| Protocols | CSMA/CD |
| Technology | Store-and-Forward switching architecture |
| MAC Address | 8K MAC address table |
| Backplane | 16 Gbps |
| Dimensions | Width: 8.66” [220 mm] Depth: 6.26” [159 mm] Height: 1.69” [44 mm] |
| Power Input | Internal power: 100-240VAC |
| Environment | Operating: 0°C to 40°C Humidity: 5% to 90% (non-condensing) |
| Weight | 3.85 lbs. [1.75 kg] |
| Certifications | Safety: LVD Emissions: FCC Class A, CE |
| Warranty | Lifetime |
