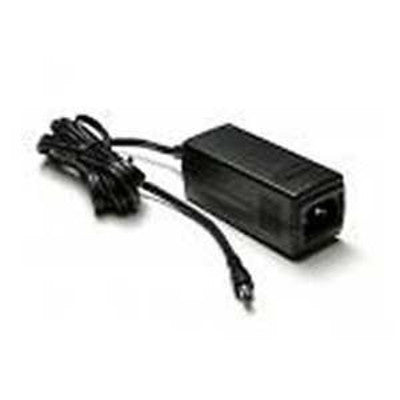

Lantronix SPS-UA12DHT-NA | Industrial Power Supply
Regular price
$55.38
Unit price
Description
Description
Industrial Power Supply
Key Features
- Wide VAC Input Range
- Protected against:
- Short Circuit
- Overload
- Over Voltage
- Overheating
- Full load burn in test
- RoHS compliant
Specifications
Specifications
Specifications
| Power Output | Output Voltage 12VDC Current Rating 1.3A Power Rating 18 Watts Ripple & Noise Max 180mVp-p Voltage Range 11.4~12.6VDC Voltage Tolerance ±0.5% Hold Up Time 20ms |
|---|---|
| Power Input | Voltage Range 90~264VAC Frequency Range 50~60Hz Efficiency 79.4% AC Current (Typical) 0.45A@115VAC Inrush Current (Cold) 50A@100VAC 50A@240VAC |
| Protection | Overload Output Voltage Drop Overvoltage Regulated Short Circuit Continuous Short Circuit Protect |
| Dimensions | Width: 3.75" [95.2 mm] Depth: 1.54" [39 mm] Height: 1.54” [39mm] |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 70°C Humidity: 10% to 95% (non-condensing) |
| MTBF | 100.0 Khrs |
| Certifications | Safety: UL60950-1, CUL 60950-1 , TUV EN60950-1, CE Mark, J60950, IEC60068-2-6 (Vibration) EMC Emission: EN55022, CISPR22 Class B; EMC Immunity: EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11, EN55024 |
| Warranty | Lifetime |
