Brand: Lantronix
|
SKU:
987236

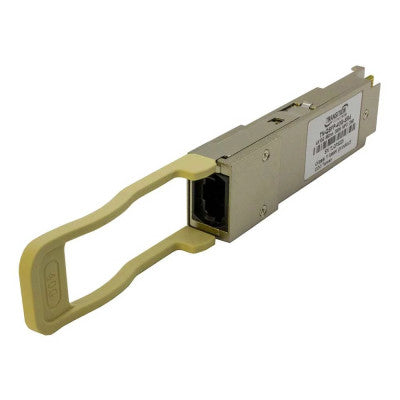

Lantronix TN-QSFP-40G-SR4 | Transceiver, Qsfp+, Cc, 40g Base-sr4, Mm Mpo, 850nm, 3.3v, Dmi
Regular price
$417.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lantronix TN-QSFP-40G-SR4 | Transceiver, Qsfp+, Cc, 40g Base-sr4, M...
Regular price
$417.05
Unit price
Description
Description
The Lantronix TN-QSFP-40G series 40G QSFP+ optical transceivers are designed to install in any QSFP+ port allowing for 40GBase-X interfaces to the network through the QSFP+ connector. The TN-QSFP-40G transceivers are Cisco Compliant* and are designed for bi-directional serial-optical data communication such as 40G Ethernet.
Key Features
- High capacity: up to 44.4 Gbps per module
- Compliant with SFF 8436 QSFP+ MSA
- Single +3.3 V Power Supply
- RoHS Compliant
- Digital Diagnostic Monitoring
- Low Power Dissipation : SR4 < 1.5 Watts, all other modules < 3.5w
- 40GBase-SR4: 4 lanes, up to 11.1Gbps per lane, Standard MPO connector
- 40GBase-LR4 & 40GBase-LR4-3: 4 wavelength CWDM Mux/Demux design, up to 11.1Gbps per wavelength, Duplex LC connector
- 40GBase-SR-BD: two transmit/receive channels, 20Gbps each channel, 850 – 900nm wavelength range, Duplex LC connector
- 40GBase-IR4: 4 wavelength CWDM Mux/Demux design, up to 11.1Gbps per wavelength, Duplex LC connector
Specifications
Specifications
Specifications
| Standards | IEEE 802.3ba SFF 8436 |
|---|---|
| Dimensions | Width: 0.71” [18 mm] Depth: 2.83” [72 mm] Height: 0.33” [8.5 mm] |
| Power Input | 3.3V |
| Environment | Operating: 0°C to +70°C Storage: -40°C to +85°C |
| Certifications | IEC 60825-1, FDA CDRH 21-CFR 1040.10 Class 1 |
| Warranty | Lifetime |
