Brand: Lantronix | SKU: 10129810

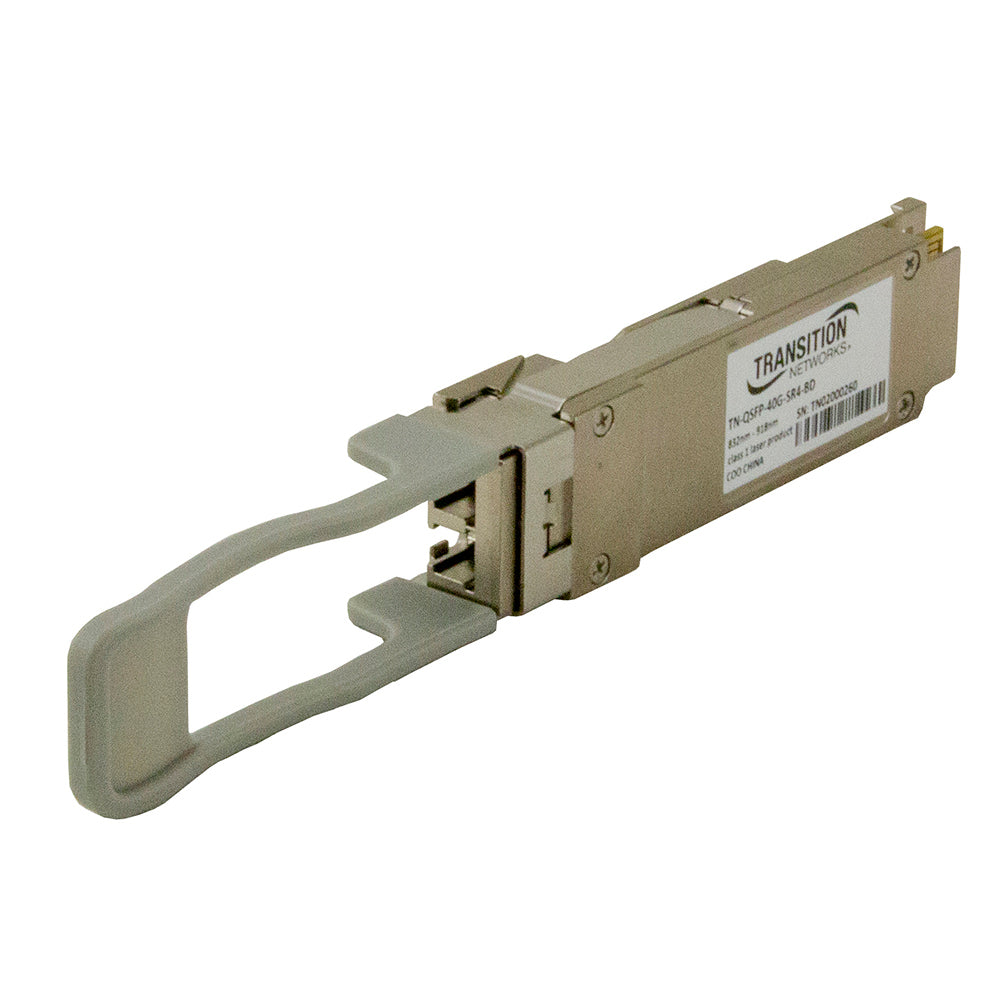

Lantronix TNQSFP40GSRBD | Cisco Compliant 40G QSFP+QSFP+ 40GBase-X With DMI

$755.28

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Lantronix TNQSFP40GSRBD | Cisco Compliant 40G QSFP+QSFP+ 40GBase-X With DMI

Lantronix TN-QSFP-40G series 40G QSFP+ optical transceivers are designed to install in any QSFP+ port allowing for 40GBase-X interfaces to the network through the QSFP+ connector. The TN-QSFP-40G transceivers are Cisco Compliant* and are designed for bi-directional serial-optical data communication such as 40G Ethernet., Applications include: 40G Ethernet, 10G Ethernet, and Data Center Aggregation Connection.

Lantronix - TNQSFP40GSRBD - Features

High capacity: up to 44.4 Gbps per module
Compliant with SFF 8436 QSFP+ MSA
Single +3.3 V Power Supply
RoHS Compliant
Digital Diagnostic Monitoring
Low Power Dissipation : SR4 < 1.5 Watts, all other modules < 3.5w
40GBase-SR4: 4 lanes, up to 11.1Gbps per lane, Standard MPO connector
40GBase-LR4 and 40GBase-LR4-3: 4 wavelength CWDM Mux/Demux design, up to 11.1Gbps per wavelength, Duplex LC connector
40GBase-SR-BD: two transmit/receive channels, 20Gbps each channel, 850 – 900nm wavelength range, Duplex LC connector
40GBase-IR4: 4 wavelength CWDM Mux/Demux design, up to 11.1Gbps per wavelength, Duplex LC connector

Specifications

Lantronix - TNQSFP40GSRBD - Specifications

Width	0.71" [18 mm]
Depth	2.83" [72 mm]
Height	0.33" [8.5 mm]
Power Input	3.3V
Operating	0°C to +70°C
Storage	-40°C to +85°C

Documents and Downloads
