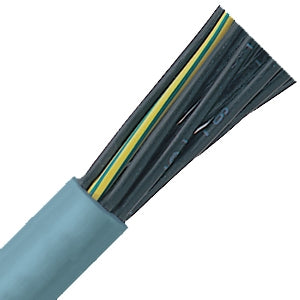

Lapp Group 1119312 | Flexible Control Cable, 300/500VAC, Bare Coppe...
Description
Description
OLFLEX CLASSIC 110 cables are VDE approved power and control cables for occasional flexible use and fixed installation for medium power mechanical stresses. They are among others designed for use in dry, damp and wet conditions. If using outdoors, observe the indicated temperature range and use with UV protection. They are largely resistant to acids, alkalis and certain oils at room temperature are limited suitable for free and continuously recurring movements. The maximum tensile load is 15 N/sq. mm of conductor cross-section during installation and operation. Compulsory guidance is not permitted.
Specifications
Specifications
Lapp Group - 1119312 - Product Categories
- Electrical Wire and Cable
- Portable Cord and Flexible Cable
- Flexible Cable
- High Flex and Robotic Cable
Lapp Group - 1119312 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 1119312 |
| Conductor Count | 12 Pair |
| Item Description | Flexible Control Cable, 300/500VAC, Bare Copper, Gray, 16 AWG, 12Pairs |
| Conductor Material | Bare Copper |
| Conductor Size | 16 Awg |
| Conductor Stranding | 30 Strands Per Conductor |
| Conductor Type | Stranded |
| Insulation Color Code | Black And White With Numbers |
| Insulation Material | Pvc |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Product Type | Flexible Control Cable |
| Shield Type | Unshielded |
| Stranding | 30 Strands In Each Conductor |
| Temperature Rating | 70°C (158°F) |
| Voltage | 500 V |
