Lapp Group 2212050 | Tray Cable, 12 AWG, Bare Copper, Insulation Ma...
Description
Description

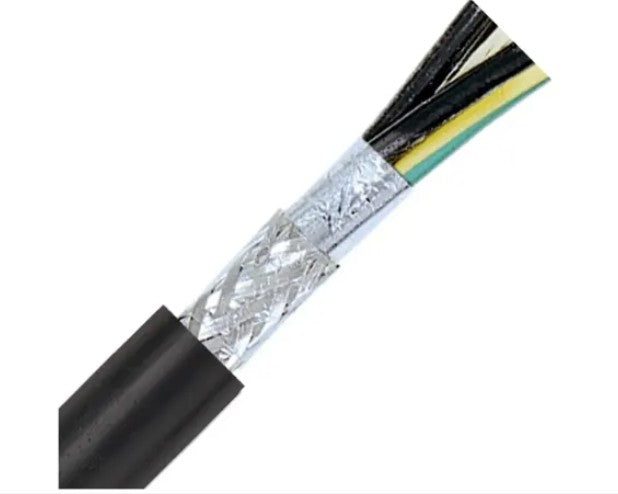

OLFLEX TRAY II is an industrial grade tray cable with superior oil performance for long cable life. It has a pressure-extruded jacket and fine copper stranding for excellent flexibility, making it much easier to pull through tray. With UL TC-ER approval, no conduit is needed so you can reduce material costs along with saving on labor. LFLEX TRAY II CY is designed with foil tape and tinned copper braid shield for improved effectiveness
Specifications
Specifications
Lapp Group - 2212050 - Product Categories
- Electrical Wire and Cable
- Power and Control Cable
- Control and Instrumentation Cable
- Control Tray Cable
Lapp Group - 2212050 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 2212050 |
| Item Description | Tray Cable, 12 AWG, Bare Copper, Insulation Material PVC/ Nylon, 5Conductor |
| Conductor Count | 5 Conductor |
| Conductor Material | Bare Copper |
| Conductor Size | 12 AWG |
| Conductor Type | Stranded |
| Ground Wire Material | Bare Copper |
| Insulation Color Code | Black and White with Numbers |
| Insulation Material | PVC/Nylon |
| Jacket Color | Black |
| Jacket Material | TPE |
| Length | 1000 ft. (304.8 m) |
| Number of Ground Wires | 1 Ground Wire |
| Product Type | TRAYFLEXII |
| Shield Type | Braid and Foil Shield |
| Special Rating | UL; CSA |
| Temperature Rating | -25° to 90°C (-13° to 194°F) |
| Voltage | 600 to 1000 V |
