Description
Description

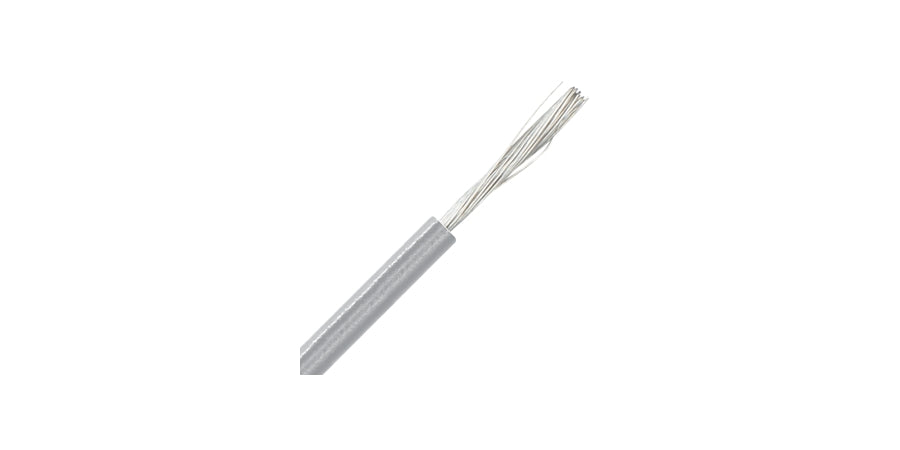

Lapp Group 4160405 | Multi-Standard Cable, White, 450 to 750 V, 600 V, 16 AWG, 1
Multi-Standard Cable; White; 450 to 750 V, 600 V; 16 AWG; Stranded; 1; Tin-Plated Copper; 3.1mm Nominal Outside Diameter; 30 Str; 12.4mm; PVC Insulation; -40 to +70 C
Specifications
Specifications
Lapp Group - 4160405 - Product Categories
- Electronic Wire and Cable
- Hook Up, Lead Wire and Automotive Wire
- Hook Up and Lead Wire
- International
Lapp Group - 4160405 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 4160405 |
| Approval Listings | Ul, Ce, Csa |
| Item Description | Multi-Standard Cable, White, 450 to 750 V, 600 V, 16 AWG, 1 |
| Bend Radius | 12.4Mm |
| Cable Type | Power/Control Cable |
| Conductor Count | 1 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 16 Awg |
| Conductor Stranding | Stranded |
| Insulation Color | White |
| Insulation Material | Polyvinyl Chloride |
| Jacket Color | White |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Nominal O.D. | 3.1 Mm |
| Number Of Conductors | 1 |
| Outside Diameter | 0.13 In. (3.4Mm) |
| Package Length | 100M |
| Package Type | Ring |
| Product Type | Single Core Multi-Standard Cable |
| Special Rating | Ul Type Awm |
| Temperature Rating | 70 Degrees Centigrade |
| Voltage | 450 V; 750 V |
| Weight | 22Kg |
