Lapp Group 53112070 | Cable Gland, Brass Body, 63mm, 34mm, 45mm, St...
Description
Description

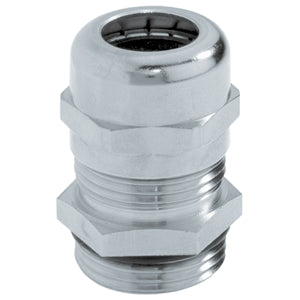

The SKINTOP MS-M/MSR-M is a nickel-plated brass cable gland with metric connecting thread which combines high-quality regarding consistency and reliability. It is especially designed for use in manufacturing of machines and equipment, in measuring, controlling as well as in the pharmaceutical industry and for medical equipment. The sizes SKINTOP MS-M/MSR-M75X1.5, M90X2 and M110X2 with innovative double lamella insert for easier assembling of cables with larger diameters. Proven functionality also during hardest cleaning procedures at industrial machinery with high pressure cleaners and hot water.
Specifications
Specifications
Lapp Group - 53112070 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Cord Grips
Lapp Group - 53112070 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 53112070 |
| Armored/Unarmored | For Use With Unarmored Cable |
| Item Description | Cable Gland, Brass Body, 63mm, 34mm, 45mm, Straight, Metric Thread, IP68, IP69 |
| Body Material | Brass |
| Cable Outside Diameter Maximum | 45Mm |
| Cable Outside Diameter Minimum | 34Mm |
| Color | Metallic |
| Connector Angle | Straight |
| Explosion Proof | No |
| Explosion Proof | No |
| Hub Size | 63Mm |
| Product Type | Cable Gland |
| Special Rating | Ip68, Ip69, Nema 1, 4X, 6, 12 |
| Thread Type | Metric |
