Brand: Lapp Group
|
SKU:
53112630

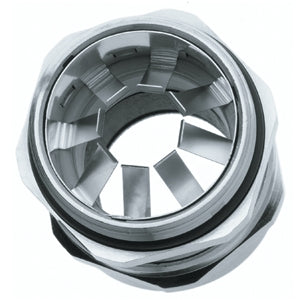

Lapp Group 53112630 | Cable Gland, Brass Body, 20mm, 7mm, 13mm, Straight, Metric Thread
Regular price
$16.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lapp Group 53112630 | Cable Gland, Brass Body, 20mm, 7mm, 13mm, Str...
Regular price
$16.12
Unit price
Description
Description
Lapp Group 53112630 | Cable Gland, Brass Body, 20mm, 7mm, 13mm, Straight, Metric Thread
The SKINTOP MS-SC-M/MS-SC-M-XL is a nickel-plated brass cable gland especially designed for copper-screened cables and is used to achieve a low resistance screen contact, strain relief and high protection class.
Specifications
Specifications
Lapp Group - 53112630 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Cord Grips
Lapp Group - 53112630 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 53112630 |
| Approvals | None |
| Item Description | Cable Gland, Brass Body, 20mm, 7mm, 13mm, Straight, Metric Thread |
| Body Material | Brass |
| Cable Outside Diameter Maximum | 13Mm |
| Cable Outside Diameter Minimum | 7Mm |
| Cable Range | 7 To 13Mm |
| Color | Silver |
| Connection Rating | Liquid-Tight |
| Connection Type | Straight Male |
| Connector Angle | Straight |
| Dimensions | Lxdia: 37 X 26.4Mm |
| Explosion Proof | No |
| Finish | Nickel-Plated |
| Hub Size | M20X1.5 |
| Ip Rating | Ip68/Ip69 |
| Material | Brass, Nickel-Plated |
| Nema Rating | Nema 1, 4X, 6, 12 |
| Od - Min-Max Average | 0.39 In. |
| Od Max | 0.49 In. |
| Od Min | 0.28 In. |
| Product Type | Cable Gland |
| Special Rating | Liquid-Tight, Ip68, Ip69, Nema 1, 4X, 6, 12 |
| Type | Cable Gland |
| Temperature Rating | -40 To +100 C |
| Thread Size | M20 X 1.5 |
| Thread Type | Metric |
| Trade Size | M20 |
| Type | Cable Gland |
