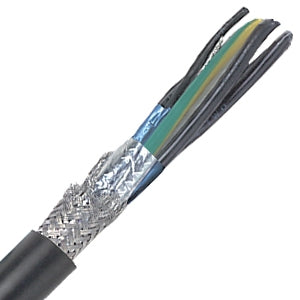

Lapp Group 7410044 | Power Cable, Tinned Copper, 10 AWG, Stranded, Black Jacket, Thermoplastic Jacket, Double Shield
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lapp Group 7410044 | Power Cable, Tinned Copper, 10 AWG, Stranded, ...
Description
Description
OLFLEX VFD with signal is an extremely oil- and uv-resistant shielded motor power cable for VFD drives, with an additional pair for brake or temperature sensor. It is designed with LAPP surge guard insulation, which includes a semiconductive layer made to withstand nonlinear power distortions associated with VFD drives and to disperse increases in voltage. It is resistant to a wide range of disinfecting solutions used in the food, beverage, chemical and related industries.
Specifications
Specifications
Lapp Group - 7410044 - Product Categories
- Electrical Wire and Cable
- Power and Control Cable
- Control and Instrumentation Cable
- Other Control and Instrumentation Cable
Lapp Group - 7410044 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 7410044 |
| Armored | No Armor |
| Item Description | Power Cable, Tinned Copper, 10 AWG, Stranded, Black Jacket, Thermoplastic Jacket, Double Shield |
| Cable Outside Diameter | 0.745 In. |
| Cable Type | Cu |
| Composite | Yes |
| Conductor Count | 4 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 10 Awg |
| Conductor Type | Stranded |
| Earth/Ground Wires | No |
| Insulation Material | Pvc |
| Jacket Color | Black |
| Jacket Material | Thermoplastic |
| Jacketing Material | Thermoplastic Polymer |
| Length | 1000 Ft. |
| Number Of Ground Wires | 2 Ground Wire |
| Outside Diameter | 3/4 In. |
| Product Type | Power Cable |
| Rohs Compliant | Not Declared |
| Shield Type | Double |
| Shield/Screen Type | Braid Over Foil Shield |
| Temperature Rating | -25° To 90°C (-13° To 194°F) |
| Voltage | 600 Vac |
