Brand: Lapp Group
|
SKU:
S1101

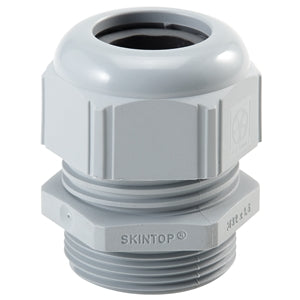

Lapp Group S1101 | Cable gland, Polyamide, Gray, NPT, 0.98 in. (25mm)
Regular price
$7.68
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lapp Group S1101 | Cable gland, Polyamide, Gray, NPT, 0.98 in. (25mm)
Regular price
$7.68
Unit price
Description
Description
Lapp Group S1101 | Cable gland, Polyamide, Gray, NPT, 0.98 in. (25mm)
SKINTOP SLN/SLRN is a durable, liquid-tight, easy-to-assemble strain relief cable gland with NPT thread that is universally suited for all types of machinery & equipment, including automation, motion control, process control, and robotics.
Lapp Group - S1101 - Features
- The heavy duty LAPP SKINTOP design provides great pullout strength and very reliable strain relief
- Superior integrated locking mechanism includes an internal ratchet for vibration-proof protection
- Multi-trapezoidal thread requires just one twist to tighten
- Generous high-quality neoprene bushing provides a liquid-tight and dust-proof hermetic seal
Specifications
Specifications
Lapp Group - S1101 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Cord Grips
Lapp Group - S1101 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | S1101 |
| Body Material | Polyamide |
| Item Description | Cable gland, Polyamide, Gray, NPT, 0.98 in. (25mm) |
| Cable Outside Diameter Maximum | 0.98 In. (25Mm) |
| Cable Outside Diameter Minimum | 0.55 In. (14Mm) |
| Cable Range | 19 To 25.4Mm |
| Color | Gray |
| Connection Rating | Liquid-Tight |
| Connection Type | Straight Male |
| Dimensions | L: 2.362 In. |
| Hub Size | 1 In. |
| Ip Rating | Ip68 |
| Nema Rating | Nema 1, 12 |
| Od Min-Max Average | 0.88 In. |
| Operating Temperature | -40 To 100 Degrees Celsius |
| Overall Length | 2.36 In. |
| Product Type | Cable Gland |
| Temperature Rating | -40 To 100 Deg C |
| Thread Length | 0.59 In. |
| Thread Size | 1 In. |
| Thread Type | Npt |
| Trade Size | 1 In. |
| Type | Cable Gland |
| Wrench Size | 1.65 In. |
