Brand: Lapp Group
|
SKU:
S1513

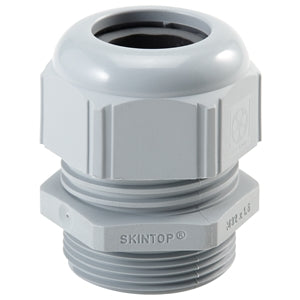

Lapp Group S1513 | Cable Gland, Polyamide Body, 20mm, 6mm, 13mm, Straight, Metric Thread, IP68, IP69K
Regular price
$2.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lapp Group S1513 | Cable Gland, Polyamide Body, 20mm, 6mm, 13mm, St...
Regular price
$2.83
Unit price
Description
Description
Lapp Group S1513 | Cable Gland, Polyamide Body, 20mm, 6mm, 13mm, Straight, Metric Thread, IP68, IP69K
SKINTOP SLR is a durable, liquid-tight, easy-to-assemble strain relief cable gland with PG thread that is universally suited for all types of machinery and equipment, including automation, motion control, process control and robotics.
Specifications
Specifications
Lapp Group - S1513 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Cord Grips
Lapp Group - S1513 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | S1513 |
| Application | Machinery And Equipment, Including Automation, Motion Control, Process Control And Robotics |
| Item Description | Cable Gland, Polyamide Body, 20mm, 6mm, 13mm, Straight, Metric Thread, IP68, IP69K |
| Body Material | Polyamide |
| Cable Outside Diameter Maximum | 13Mm |
| Cable Outside Diameter Minimum | 6Mm |
| Cable Range | 6 To 13Mm |
| Color Code | Gray |
| Color | Gray |
| Connection Rating | Liquid-Tight |
| Connection Type | Straight |
| Connector Angle | Straight |
| Dimensions | L: 1.457 In. |
| Explosion Proof | No |
| Hub Size | M20X1.5 |
| Ip Rating | Ip68/Ip69K |
| Installation | Threaded |
| Material | Polyamide |
| Nema Rating | Nema 1, 12 |
| Od - Min-Max Average | 0.38 In. |
| Od Max | 0.51 In. |
| Od Min | 0.24 In. |
| Product Type | Cable Gland |
| Special Rating | Ip68, Ip69K, Nema 1, 12 |
| Temperature Rating | -40 To +100 C |
| Thread Size | M20 X 1.5 |
| Thread Type | Metric |
| Trade Size | M20 |
| Type | Strain Relief Cable Gland |
