Brand: Lapp Group | SKU: S2129

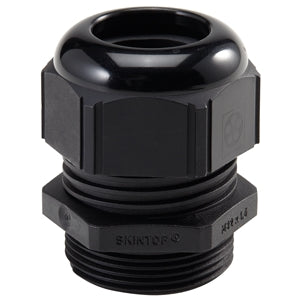

Lapp Group S2129 | Cable Gland, Polyamide Body, 25 mm OD Max, 14 mm OD Min, Non-Metallic Strain Relief

$8.19

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Lapp Group S2129 | Cable Gland, Polyamide Body, 25 mm OD Max, 14 mm OD Min, Non-Metallic Strain Relief

SKINTOP FLEX is a liquid-tight, spiral strain relief that offers additional safety against overstress and conductor breakage. It is ideally suited for hand held equipment, moving machinery, and robotics.

Specifications

Lapp Group - S2129 - Product Categories

Electrical Supplies and Lighting
Electrical Supplies
Electrical Connectors
Cord Grips

Lapp Group - S2129 - Specifications

Manufacturer Name	Lapp Group
Manufacturer Part Number	S2129
Body Material	Polyamide
Item Description	Cable Gland, Polyamide Body, 25 mm OD Max, 14 mm OD Min, Non-Metallic Strain Relief
Cable Outside Diameter Maximum	25 Mm
Cable Outside Diameter Minimum	14 Mm
Cable Range	14 To 25Mm
Color Code	Ral 9005
Color	Black
Connection Rating	Liquid-Tight
Connection Type	Straight Male
Dimensions	L: 2.205 In.
External Strain Relief Material	Non-Metallic
For Use With	Hand Held Equipment, Moving Machinery, And Robotics
Hub Size	Pg29
Ip Rating	Ip68
Material	Nonmetallic
Nema Rating	Nema 1, 12
Od - Min-Max Average	0.75 In
Od Max	0.98 In.
Od Min	0.55 In.
Product Type	Cable Gland
Special Rating	Ip68
Temperature Rating	-40 To 100 C
Thread Size	Pg 29
Thread Type	Pg
Trade Size	Pg29
Type	Flexible Cord Connector

Documents and Downloads

Lapp Group S2129 Data Sheet
