Brand: Lapp Group | SKU: S2516

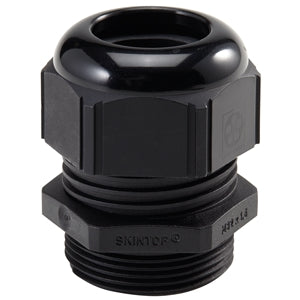

Lapp Group S2516 | Cable Gland, Polyamide Body, 25mm, 8mm, 17mm, Straight, Metric Thread, IP68, IP69K

$4.24

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Lapp Group S2516 | Cable Gland, Polyamide Body, 25mm, 8mm, 17mm, Straight, Metric Thread, IP68, IP69K

SKINTOP SLR is a durable, liquid-tight, easy-to-assemble strain relief cable gland with PG thread that is universally suited for all types of machinery and equipment, including automation, motion control, process control and robotics.

Specifications

Lapp Group - S2516 - Product Categories

Electrical Supplies and Lighting
Electrical Supplies
Electrical Connectors
Cord Grips

Lapp Group - S2516 - Specifications

Manufacturer Name	Lapp Group
Manufacturer Part Number	S2516
Body Material	Polyamide
Item Description	Cable Gland, Polyamide Body, 25mm, 8mm, 17mm, Straight, Metric Thread, IP68, IP69K
Cable Outside Diameter Maximum	17Mm
Cable Outside Diameter Minimum	8Mm
Cable Range	8 To 17Mm
Color	Black
Connection Rating	Liquid-Tight
Connection Type	Straight Male
Connector Angle	Straight
Dimensions	L: 1.575 In.
Hub Size	M25X1.5
Ip Rating	Ip68, Ip69K
Nema Rating	Nema 1, 12
Od Min-Max Average	0.50 In.
Product Type	Cable Gland
Special Rating	Ip68, Ip69K, Nema 1, 12
Temperature Rating	-40 To 100 Deg C
Thread Size	M25 X 1.5
Thread Type	Metric
Trade Size	M25
Type	Flexible Cord Connector

Documents and Downloads

Lapp Group S2516 Data Sheet
