Legrand BZ250 | Power Pack, 120-277V, 50/60Hz 24Vdc, 225Ma, W/Auto/...
Description
Description

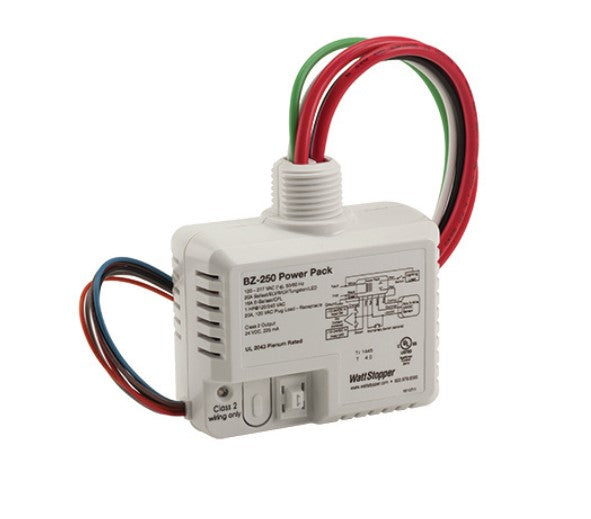

The BZ-250 power pack switches lighting or plug loads On and Off in response to low voltage control inputs, and provides up to 225mA at 24VDC to power Wattstopper occupancy sensors. It enables Manual-On sequences of operation, as well as HoldOn, Hold-Off and load shed applications when used with lighting control panels or building automation systems. This device is constructed with environmentally friendly materials and is RoHS-compliant.
Legrand - BZ250 - Features
- High-efficiency, plenum-rated switching power supply
- Hold-On and Hold-Off inputs
- Mechanically held latching relay with selectable power loss operation: On, Off, or last state
- Load On/Off button to verify wiring
- Auto-On or Manual-On operation for code compliance
- Zero crossing and for reliability and increased product life
- Low voltage over current protection
Specifications
Specifications
Legrand - BZ250 - Specifications
| Product Line | Wattstopper |
|---|---|
| UPC Number | 754182938049 |
| Country Of Origin | China |
| Application Sector | Commercial |
| Warranty Type | 5-Year |
| Product Width US | 3.0 in |
| Product Weight US | 0.4 lb |
| Product Volume US | 42.0 cu in |
| Product Depth US | 1.4 in |
| Product Height US | 3.0 in |
| RoHS Compliant | Yes |
| Security | Yes |
| Amperage | 20 A |
| Connection Type | Wired |
