Legrand C2G C2G30013 | HDMI HDBaseT + 3.5mm, USB-B to A, and RS232 ...
Description
Description
Extend 4K HDMI up to 130ft over a single Cat6a network patch cable using HDBaseT technology

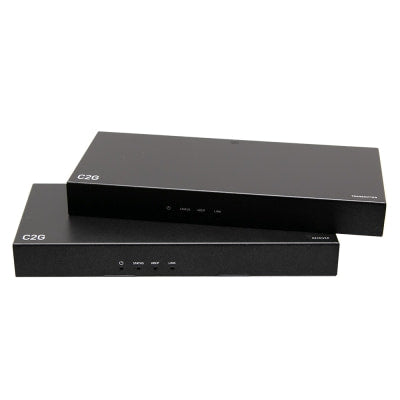

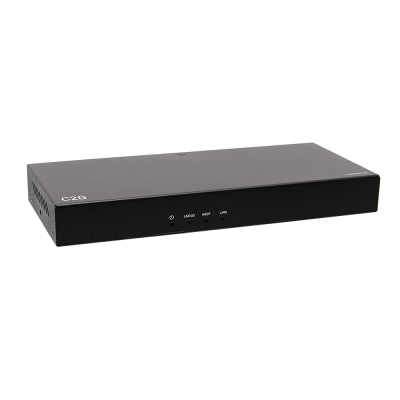

The HDMI HDBaseT + 3.5mm, USB-B to A, and RS232 over Cat Extender Box Transmitter to Box Receiver - 4k 60hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable.
This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.The transmitter extends HDMI and high speed USB 2.0 signals over a single Cat5e, Cat6 or Cat6a network patch cable.
Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable.
For longer 4K distances, extend 4K HDMI or up to 130 feet using a Cat6a cable.This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure.
One-way analog audio pass through is supported from the transmitter to the receiver.
Legrand C2G - C2G30013 - Features
- Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
- Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
- HDCP 2.2 compliant, to create a secure connection between the source and display
- One-way analog stereo audio pass-through from transmitter to receiver
- Supports USB 2.0 pass through over HDBT up to 230ft, connecting up to 4 USB devices to the receiver
- Supports CEC pass-through, allowing central control to all HDMI compatible devices
- One-way Power over HDBaseT (PoH), so that the transmitter can power both transmitter and receiver
- HDBaseT Chipset VS210, for simpler HDBaseT installations
Specifications
Specifications
Legrand C2G - C2G30013 - Specifications
| Color | Black |
|---|---|
| UPC | 757120300137 |
| Warranty | 3 Years |
| Vendor | C2G |
| Weight | 0.001 LB |
| Input/Output | (1) DC Power Plug, (1) RJ-45 Female, (1) HDMI Female, (2) 3.5mm Female, (1) USB-B Female,(1) DC Power Plug, (1) RJ-45 Female, (1) HDMI Female, (2) 3.5mm Female, (4) USB-A Female |
