Legrand CF150/300EZ | CF 150 Series Cable Tray, 6 inch x 12 inch x 10 ft.
Regular price
$262.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Legrand CF150/300EZ | CF 150 Series Cable Tray, 6 inch x 12 inch x ...
Regular price
$262.75
Unit price
Description
Description

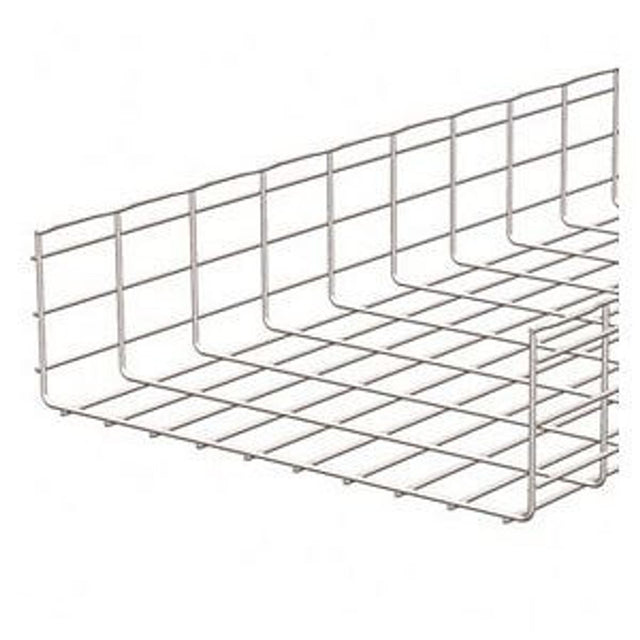

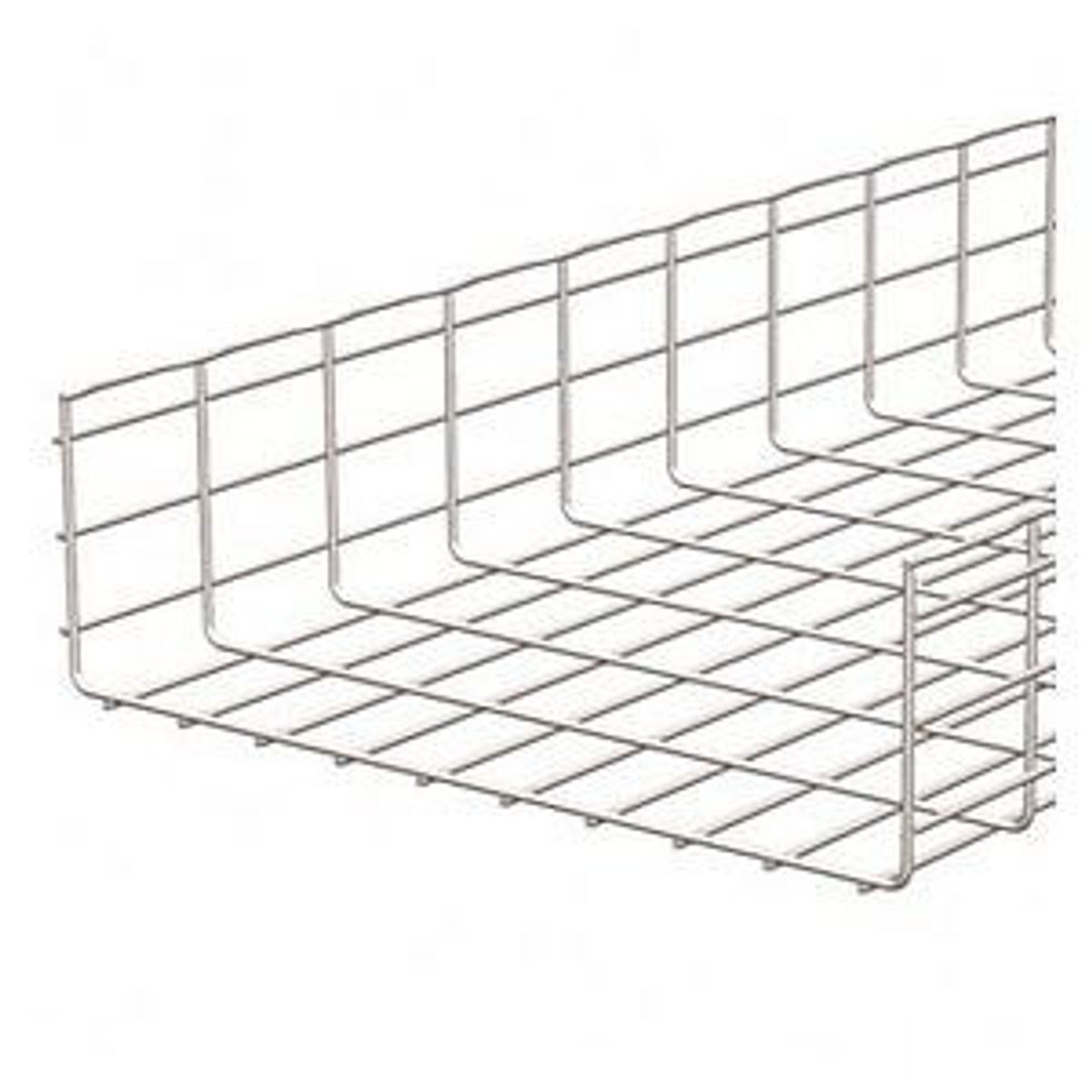

Legrand CF150/300EZ | CF 150 Series Cable Tray, 6 inch x 12 inch x 10 ft.
6 inch x 12 inch x 10 foot section of wiremesh cable tray constructed of precision engineered high quality welded steel wire and can be adapted to fit any installation on-site Electro-Zinc finish is perfect for indoor applications
Legrand - CF150/300EZ - Features
- Special Safe-T-Edge: protects installers from sharp ends while it prevents cables from fraying.
- Wire mesh is smooth and round: to resist dirt and dust build-up.
- Standard 10’ lengths: straight and easy to handle.
- Large mesh size (2 in. wide by 4 in. long ): allows cable installers to route cables in and out at any point without cutting the tray.
- 1 in. to 6 in. high flange side of the tray: prevents cables from falling off.
- Dimensions are nominal: other sizes available on request.
- Available in the following finishes: Electro Zinc, Hot Dipped Galvanized, Stainless Steel 316L, Black Painted, and other Painted.
Specifications
Specifications
Legrand - CF150/300EZ - Specifications
| Components | STRAIGHT SECTION |
|---|---|
| Fiber Duct H x W | 6" X 12" |
| Finish | ELECTRO GALVANIZED |
| Material | STEEL |
| Type | WIRE BASKET |
| UNSPSC Code | 39131700 |
| ECCN | EAR99 |
| Country of Origin | US - United States |
| UNSPSC | 39131704 |
| Series | CF 150 Series |
| Length | 10 ft. |
| Dimenions | 6 x 12 in. |
| Additional Features | Modular |
| Application | Cable Runways |
| Material | Steel |
