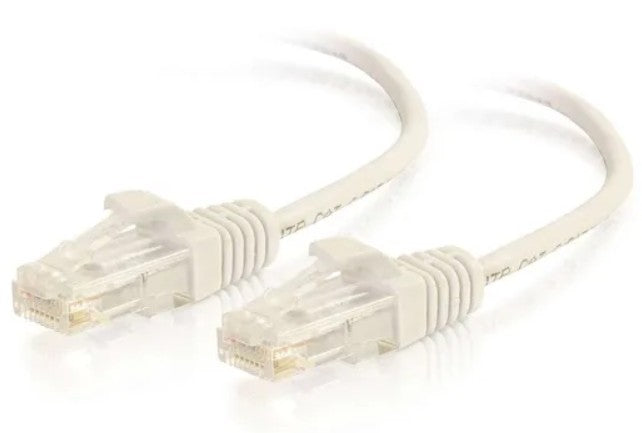

Legrand CG01185 | 1 ft (0.3 m) Cat 6 UTP Slim Patch Cable, 28 AWG, ...
Description
Description
The Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density datacenter applications. The use of 28 AWG conductors allows for a 36% reduction in diameter over a standard Cat6 network patch cable. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. The 28 AWG conductors also allow this cable to have a smaller bend radius than standard Cat6 cables. The small size and small bend radius of this cable allows it to be easily routed through cable management panels.
Specifications
Specifications
Legrand - CG01185 - Specifications
| Bandwidth | 500 mHz |
|---|---|
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
