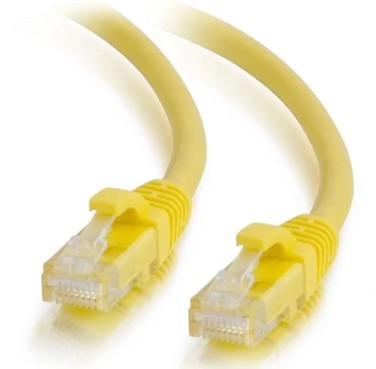

Legrand CG04010 | 8 ft Ethernet Network Patch Cable Yellow
Description
Description
For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
Specifications
Specifications
Legrand - CG04010 - Specifications
| Manufacturer Part Number | CG04010 |
|---|---|
| Brand Name | Legrand |
| Item Description | 8 ft Ethernet Network Patch Cable Yellow |
| Conductor DC Resistance | 9.38 ?/100 m (maximum) |
| Impedance | 100 ? |
| Capacitance | 5600 pF/100 m |
| Propagation Delay | 545 ns/100 m (maximum) |
| Delay Skew | 45 ns/100 m (maximum) |
| Wiring Scheme | T568B |
| Standard | Category 6 TIA/EIA-568-B-2.1, Draft 9 |
| Connector | 50 micron gold-plated RJ45 |
| Temperature Rating | 60°C |
| Voltage Rating | 30 V |
