Brand: Legrand
|
SKU:
975563

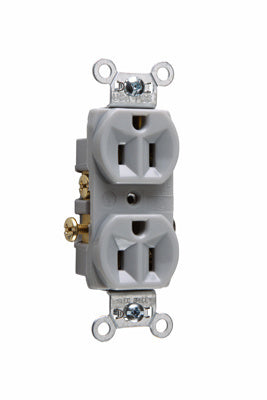

Legrand CR15-GRY | Pass and Seymour | Commercial Spec Grade Receptacle, Side Wire, 15A, 125V, Gray
Regular price
$3.94
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Legrand CR15-GRY | Pass and Seymour | Commercial Spec Grade Recepta...
Regular price
$3.94
Unit price
Description
Description
Commercial Spec Grade Duplex Receptacle, Side Wire 15amp 125volt, Gray
Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and thermoplastic back body.
- Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
- Terminal compartments isolated from each other for positive conductor containment.
- Tri-drive terminal and mounting screws.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Specifications
Specifications
General Info
| Color | Gray |
|---|---|
| UPC Number | 785007119046 |
| Country Of Origin | Mexico |
| Product Line | Pass and Seymour |
| Application Sector | Commercial |
| Standard | UL498, CSA C22.2 No. 42 |
Additional Information
| Product Environmental Profile | Yes |
|---|
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes |
|---|---|
| cULus ListingNumber | 140596 |
Technical Information
| Number of Poles | Double Pole |
|---|---|
| Voltage | 125 V |
| Connection | Side wire |
| Dielectric Strength | Withstands 1500V minimum |
| Temperature Rating | Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact |
| Wire Size | #14 - #10 |
| Number of Wires | 3 |
| Environmental Conditions | Flammability: UL94 V2 |
