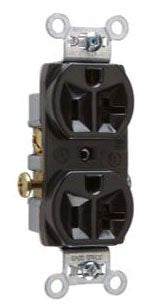

Legrand CR20BK | Commercial Grade Duplex Receptacle, 125V, 20A, Black
Regular price
$3.78
Unit price
Brand: Legrand
|
SKU:
975565
Regular price
$3.78
Unit price
Description
Description
Legrand CR20BK | Commercial Grade Duplex Receptacle, 125V, 20A, Black
Plated, corrosion-resistant straps, rugged nylon faces and triple wipe power contacts mean these receptacles will ensure consistent performance. Tri-drive, backed-out terminal screws save installation time.
Specifications
Specifications
Legrand - CR20BK - Specifications
| Manufacturer part number | CR20BK |
|---|---|
| Brand Name | Legrand |
| Item Description | Commercial Grade Duplex Receptacle, 125V, 20A, Black |
| Amperage | 20A |
| Application Grade | Commercial |
| Color | Black |
| Contact Material | Brass |
| Ground | Grounding |
| Height | 3.3 in. |
| Length | 0.78 in. |
| Material | Thermoplastic |
| Mounting Type | Screw |
| NEMA Configuration | NEMA 5-20R |
| Number of Poles | 2P |
| Number of Wires | 3 |
| Product Type | Commercial Spec-Grade Straight Blade Receptacle |
| Standards | UL |
| Strap Material | Steel |
| Tamper Resistant | No |
| Temperature Rating | -40 to +50 C |
| Terminal Type | Wire |
| Type | Duplex, Standard |
| Voltage | 125V AC |
| Waterproof | No |
| Weather Resistant | No |
| Width | 1.32 in. |
| Wire Size - Maximum | 14 AWG |
| Wire Size - Minimum | 10 AWG |
| Wiring Method | Side |
