Legrand - Ortronics 110ABC6050 | Connecting Block, 48-Pair
Regular price
$87.46
Unit price
Brand: Ortronics
|
SKU:
269043
Regular price
$87.46
Unit price
Description
Description
Legrand - Ortronics 110ABC6050 | Connecting Block, 48-Pair

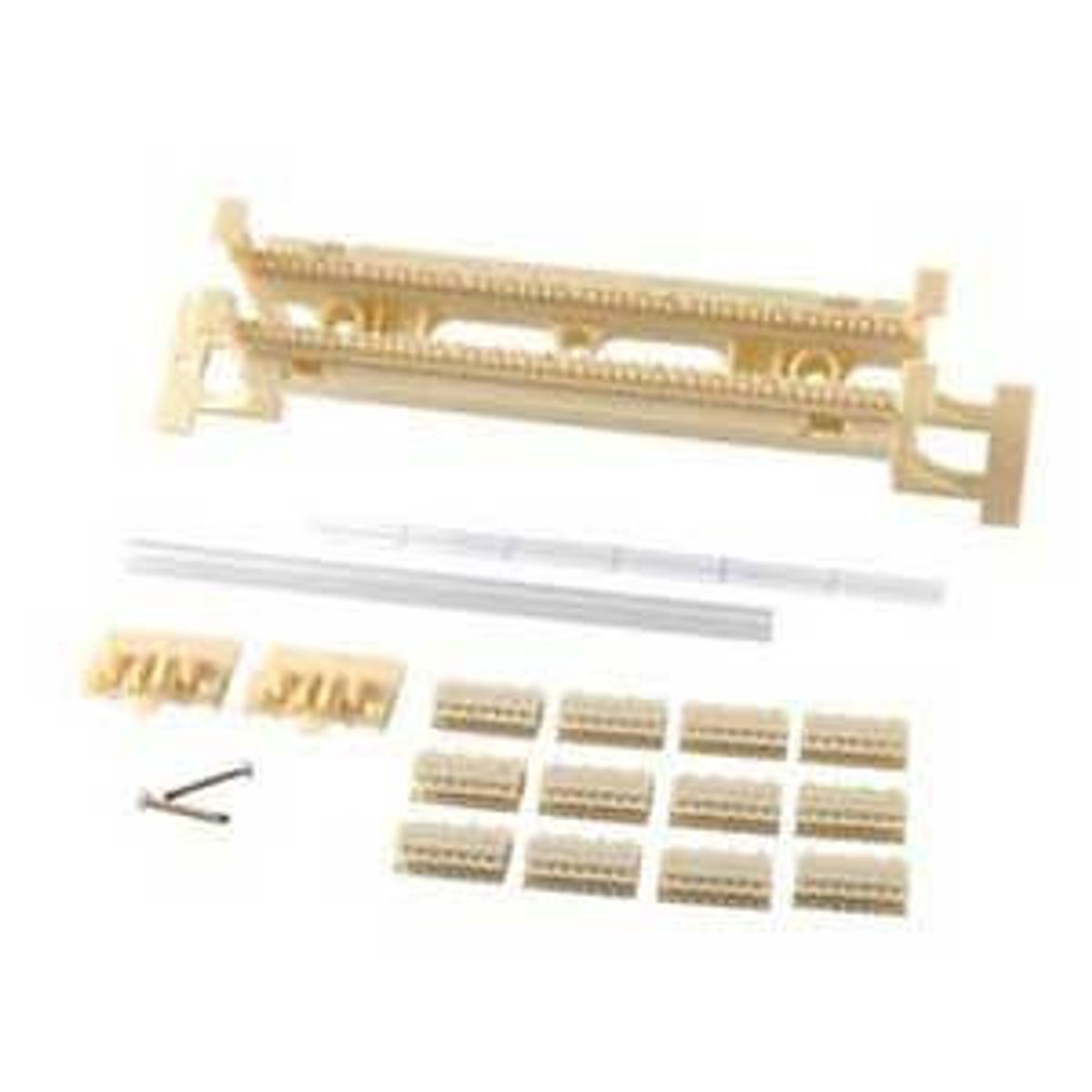

Clarity 6 110 Block Kit, with legs, Category 6, 48-pair in standard 50-pair footprint, Clarity, supplied with 12 C6110C4 4-pair connecting blocks and snap-on label designation field
Ortronics 110ABC6050 Main Features
- ETL third party tested and verified Category 6 performance
- Standard 50-pair 110 footprint
- High density design
- Internal signal feedback technique
- Color-coded C6110C4 connecting blocks
- Provides a termination that is more transparent to the signal
Specifications
Specifications
Ortronics 110ABC6050 Additional Information
- Depth Metric: 45.5 mm
- Width Metric: 272 mm
- Height USA: 3.25 in.
- Height Metric: 83 mmPair Count: 48Mount block base, feed cables through openings in base|Designation Strip only enough jacket to lace/terminate conductors|Lace conductors into 110 wiring base maintaining pair twist as close as possible, not to exceed .5|Confirm correct wiring|Seat and trim conductors with a pair or single position impact tool|Align Category 6 C4 connecting block over conductors with blue tip on left side|Seat connecting block onto base|Terminate top of C4 connecting blocks with single position impact tool|Install labeling kit|When installing block without legs side by side, use clear designation Designation Strip Holder from kit OR-70400661
Ortronics 110ABC6050 Specifications
| Termination | 110 |
|---|---|
| UNSPSC Code | 43223300 |
| ECCN | EAR99 |
| Country of Origin | US - United States |
| UNSPSC | 43222806 |
| Alternate Manufacturer Part No. | OR-110ABC6050 |
| Dimenions | 10.71 W x 3.34 H x 3.57 in. D |
| Mounting Type | Rack Mount |
| Product Includes | Connecting Blocks |
| No. of Pairs | 48 |
| Style | With Legs |
| Category | Cat 6 |
| UPC Number | 662875446934 |
| Country Of Origin | United States |
| Product Line | Legrand |
