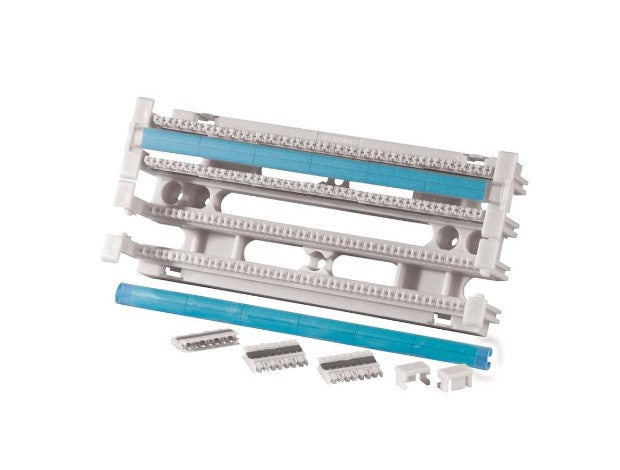

Legrand - Ortronics 110DBC6100 | 110 Block, Cat6 96Pr
Description
Description
The Clarity family of 110 blocks combines Category 6 and 5e performance with the ease and reliability of 110 termination and installer friendly features all within the traditional 110 block footprint. Clarity blocks are available in 50, 100 and 300-pair sizes, providing designation areas and rear cable entry. Clarity 6 blocks use a signal feedback technique internal to the C6110C4 connector to control crosstalk without compromising impedance. Clarity 6 and Clarity 5E block kits include base wiring block, 110C connecting blocks and label holders for designation.
Ortronics - 110DBC6100 - Features
- ETL third party tested and verified Category 6 performance.
- Openings between wiring rows allow horizontal cables to be routed from the rear of the block.
- Color-coded 110 connecting blocks.
- Supports consolidation point applications.
- Wall or rack mountable.
- Backwards compatibility.
- C6110C4 connector has printed circuit board to improve performance.
Specifications
Specifications
Ortronics - 110DBC6100 - Specifications
| Product Line | Ortronics |
|---|---|
| UPC Number | 662875438144 |
| Country Of Origin | United States |
| Product Width US,Product Depth US,Product Height US | 8.11 in,1.59 in,3.57 in |
| Termination | 110 |
| UNSPSC Code | 43223300 |
Ortronics (Legrand) Education Series Videos
| How to Terminate a Shielded Field-Term Plug using Cat6a | Click to View |
|---|---|
| KT2 Termination Video - Keystone Jack with Lacing Cap Termination | Click to View |
| Termination of PowerWise 1G 4PPoE Cable with Lacing Cap | Click to View |
| How to Terminate FTPU Series Modular Plugs using Category 6a | Click to View |
| How-to-Terminate HDJ Jack with CAT6A Jack and Cable | Click to View |
| Infinium LC Loose Tube Fiber Termination | Click to View |
| How To: Install Infinium LC Fiber Connector | Click to View |
| Modular Patch Panel with Copper and Fiber | Click to View |
| Re-configurable LC (RLC) Patch Cord | Click to View |
| How To: Install Infinium SC Field Connector | Click to View |
