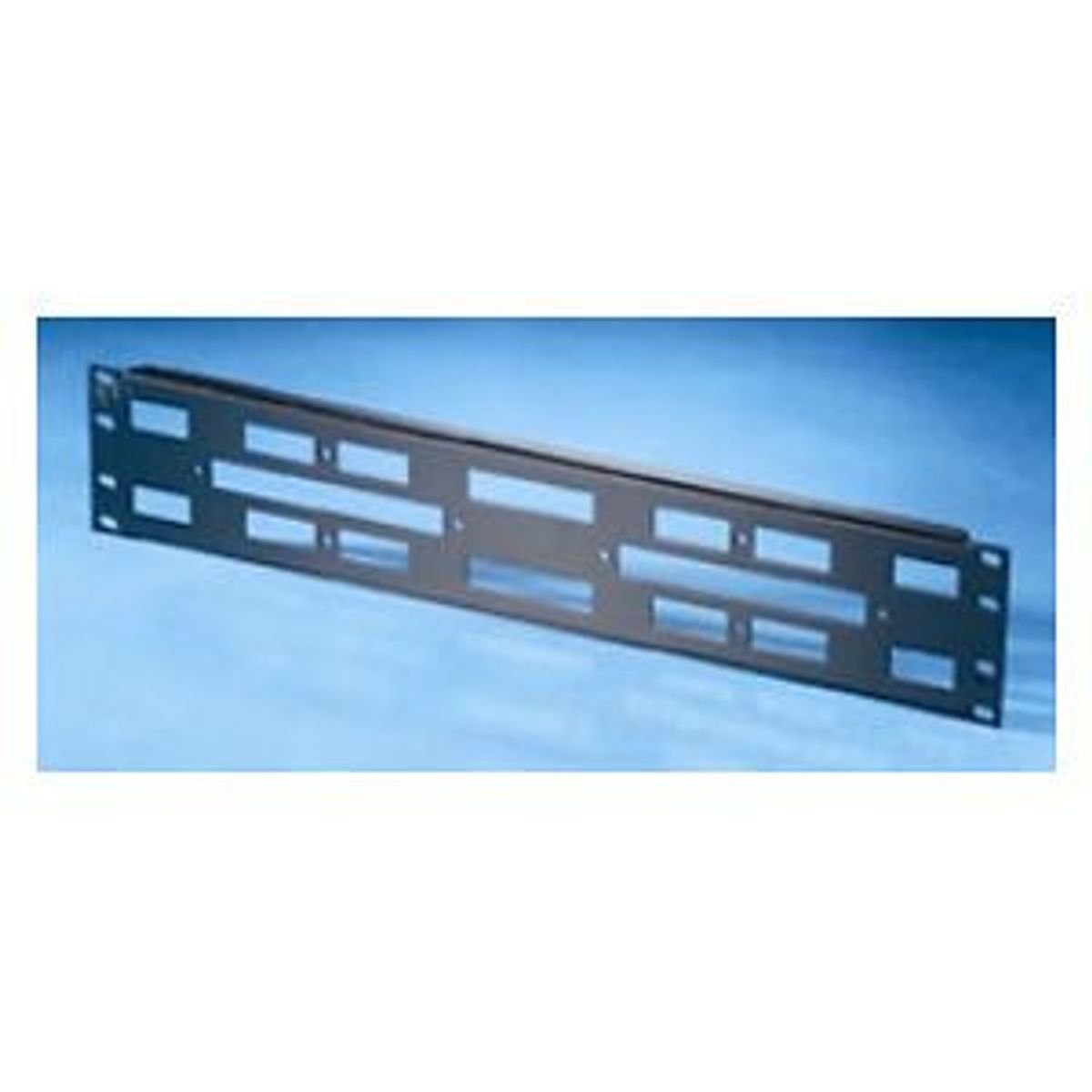

Legrand - Ortronics 30600167 | Rack Mount Panel Without 110 Blocks
Regular price
$90.07
Unit price
Brand: Ortronics
|
SKU:
222729
Regular price
$90.07
Unit price
Description
Description
Legrand - Ortronics 30600167 | Rack Mount Panel Without 110 Blocks
200-pair 19 Rack Mount Unloaded 110 Panel Kit accepts two 100-pair 110 blocks without legs, or two jumper troughs, 3.5 H x 19 W (2 rack units).
Ortronics 30600167 Main Features
- Rear cable entry openings: Allows the separation of horizontal and patch cables or cross connect wire. Aluminum one piece construction: Sturdy and lightweight. High density, low profile: Optimum use of rack space. Includes all hardware to mount blocks, troughs and panel to rack: No additional hardware makes ordering simple.
Specifications
Specifications
Ortronics 30600167 Additional Information
- Depth Metric: 13 mm
- Width Metric: 483 mm
- Height USA: 3.50 in.
- Mounting Hardware Included: Patch Panel Mounting Screw Package, 70300030-Rivet
- Height Metric: 89 mm
Ortronics 30600167 Specifications
| Color | Black |
|---|---|
| Type | PANELS |
| UNSPSC Code | 24102001 |
| ECCN | EAR99 |
| Country of Origin | US - United States |
| UNSPSC | 43222806 |
| Alternate Manufacturer Part No. | OR-30600167 |
| Dimenions | 19 W x 3-1/2 H x 0.51 in. D |
| Material | Aluminum |
| Mounting Type | Rack Mount |
| No. of Pairs | 200 |
| Style | Without Legs |
