Legrand - Ortronics 404S22X2U | Series II Plastic Surface Mount Box
Regular price
$13.19
Unit price
Brand: Ortronics
|
SKU:
387401
Regular price
$13.19
Unit price
Description
Description

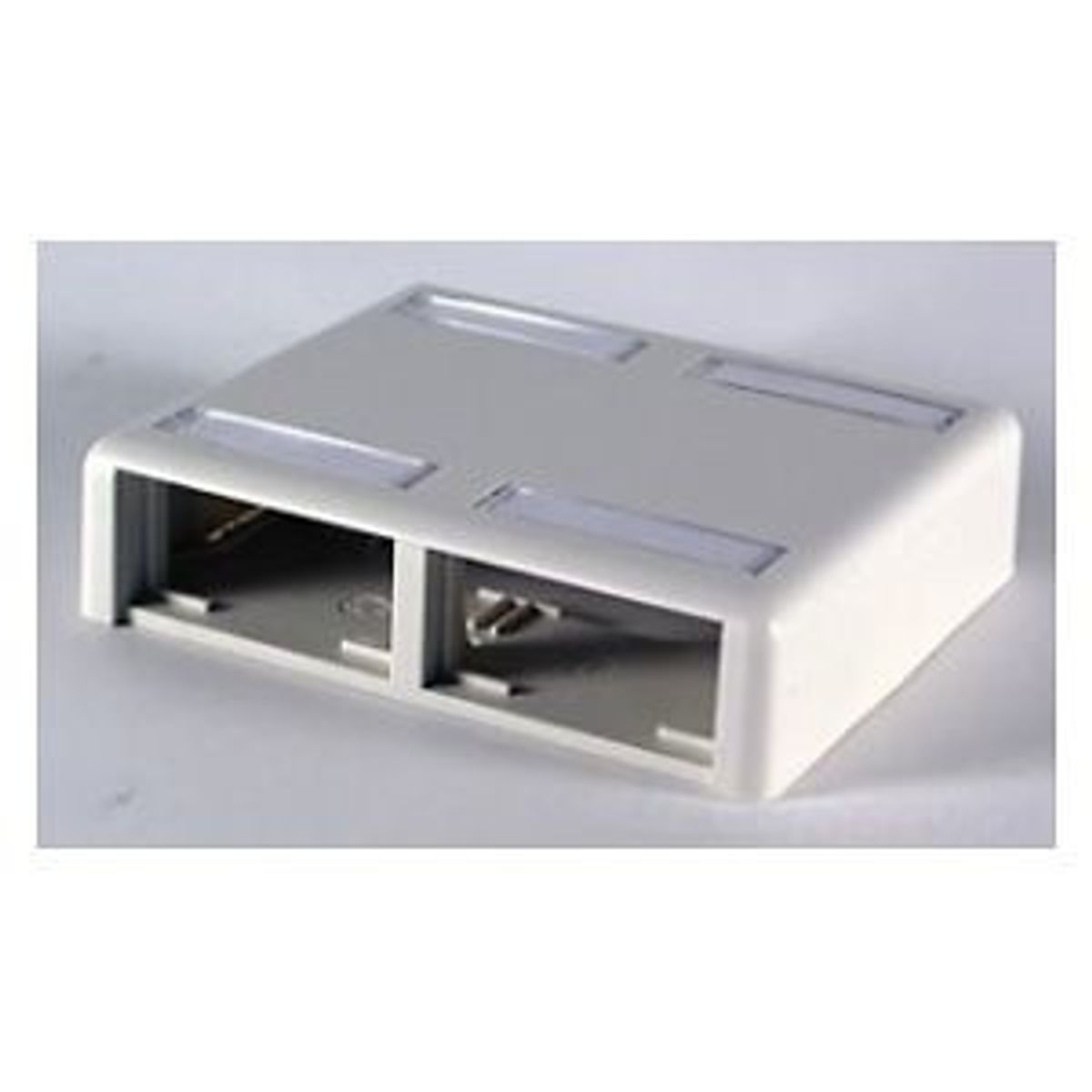

Legrand - Ortronics 404S22X2U | Series II Plastic Surface Mount Box
Ortronics Series II Surface Mount Outlet Boxes accept front-loading Series II modules and provide snap-on covers and snap-in label fields. Boxes are supplied with screws and double-sided adhesive tape for mounting onto almost any Surface. Compatible with Wiremold 2700, 2800 and 2900 raceway series.
Ortronics 404S22X2U Main Features
- Low profile design
- Base plate and snap-on cover design
- Front-load module approach
- Textured finish
- Holds four Series II modules
- Recessed label fields
- Compatible with LabelMo XL
- Designed to seamlessly intergrate with Wiremold 2700, 2800 and 2900 raceways
Specifications
Specifications
Ortronics 404S22X2U Additional Information
- Depth Metric: 29.46 mm
- Footprint: Serie II
- Color: Fog White
- Width Metric: 119.63 mm
- Height USA: 4 in.
- Mounting Hardware Included: 6-20*19 mm (Pan head) 2ea
- Height Metric: 101.60 mm
- Up to four Serie II modules
Ortronics 404S22X2U Specifications
| Color | White |
|---|---|
| Loaded | NO |
| Mounting | Surface MOUNT |
| Number of Ports | 4 |
| UNSPSC Code | 43223300 |
| ECCN | EAR99 |
| Country of Origin | TW - Taiwan |
| UNSPSC | 43223307 |
| Color Family | White |
| Dimenions | 4.71 x 1.16 x 4 in. |
| Material | High-Impact Thermoplastic, 94V-0 rated. |
| Mounting Type | Surface Mount |
| Color | Fog White |
