Brand: Ortronics
|
SKU:
400372
Legrand - Ortronics BCGFM3X9 | Air Guard Brush Cable Grommet, ABS Polycarbonate, Flush Mount, 2 Pc. Assembly
Regular price
$233.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Legrand - Ortronics BCGFM3X9 | Air Guard Brush Cable Grommet, ABS P...
Regular price
$233.95
Unit price
Description
Description

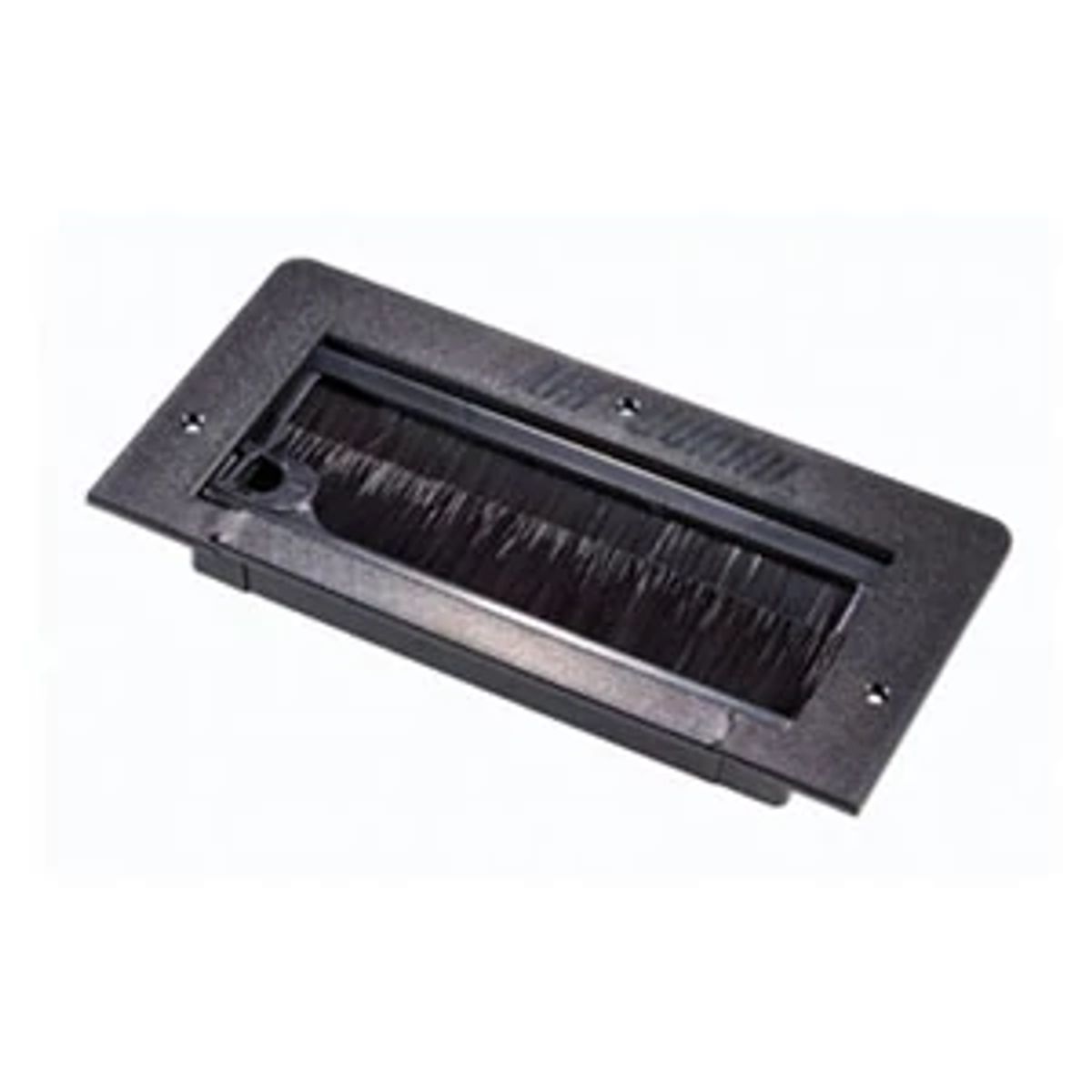

Legrand - Ortronics BCGFM3X9 | Air Guard Brush Cable Grommet, ABS Polycarbonate, Flush Mount, 2 Pc. Assembly
Flush mount two piece assembly designed for new installations in data centeres to maximize energy efficiency. Designed with a removable back brush that allows for great versatility when floor tiles need to be removed.
Ortronics BCGFM3X9 Main Features
- Brush cable grommets help to prevent air loss in plenum cooled floors when access holes are required for cable routing through the floor. Provides an exceptional seal around cables for an effective and economical solution towards eliminating bypass air through cable cutouts. Provides an energy savings benefit by reducing cool air loss while improving the static pressure to cool data center equipment. Helps prevent network equipment from overheating. Seals cable openings with an overlapping brush and/or EPDM gaskets to help prevent under-floor contamination. Floor tiles can be removed without disconnecting equipment. Flame retardant ABS polycarbonate material provides a finished look.
- Provides an exceptional seal around cables for an effective and economical solution towards eliminating bypass air through cable cutouts
- Provides an energy savings benefit by reducing cool air loss while improving the static pressure to cool data center equipment
- Helps prevent network equipment from overheating
- Seals cable openings with an overlapping brush and/or EPDM gaskets to help prevent under-floor contamination
- Floor tiles can be removed without disconnecting equipment
Specifications
Specifications
Ortronics BCGFM3X9 Specifications
| Airflow/Thermal Mgt Type | BRUSHED GROMMET |
|---|---|
| Color | Black |
| Type | AIRFLOW/THERMAL MANAGEMENT |
| UNSPSC Code | 24102001 |
| ECCN | EAR99 |
| Country of Origin | US - United States |
| UNSPSC | 39131709 |
| Standard | RoHS Compliant |
| Additional Features | Flame-Retardant |
| Material | Polycarbonate |
| Mounting Type | Surface Mount |
| Use With | Datacenters |
