Brand: Ortronics
|
SKU:
497490

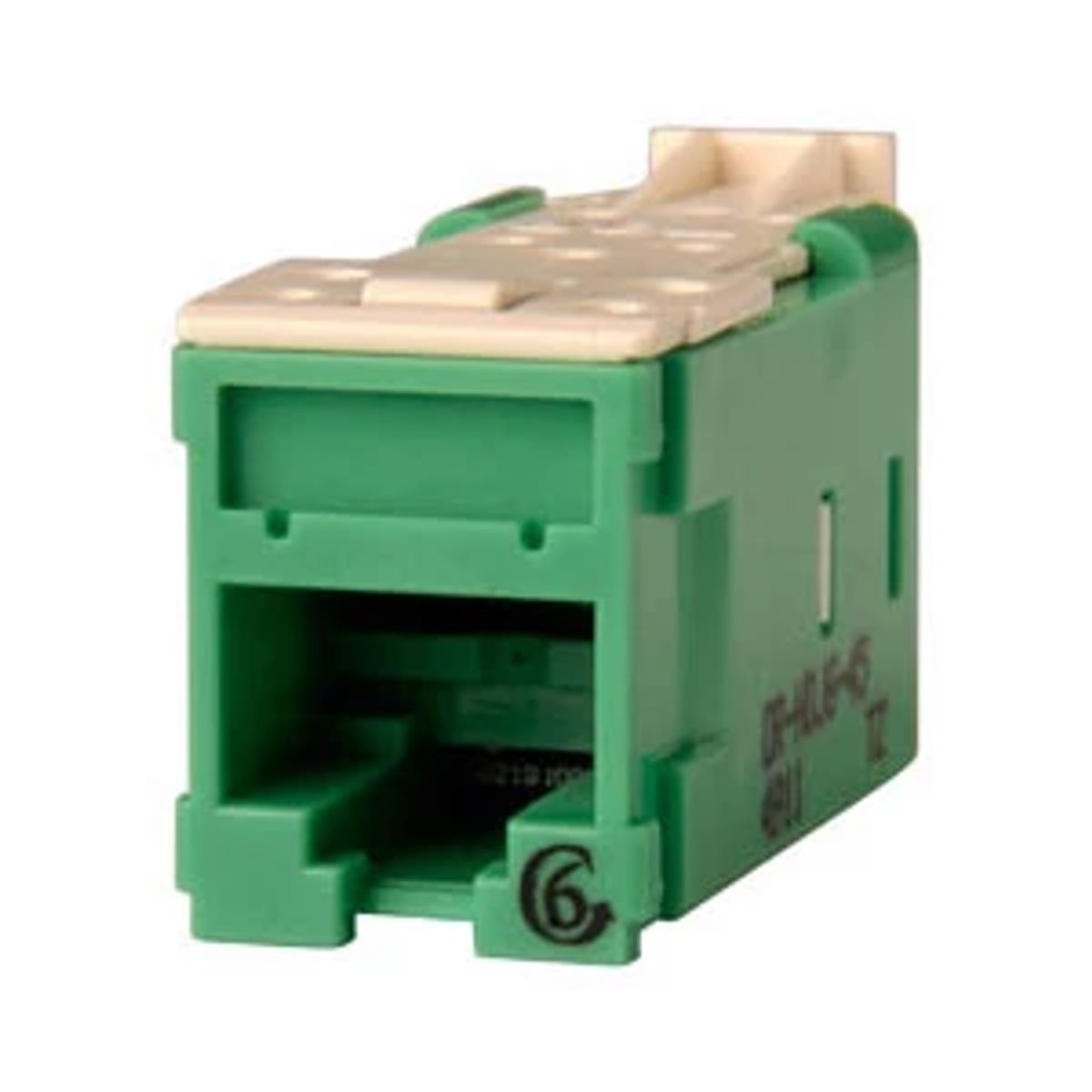

Legrand - Ortronics HDJ5E-45 | Clarity Series, High Density Jack, Cat 5e, Nickel Plating, Thermoplastic, 22 to 24 AWG, Green, 0.84 H x 0.63 W x 1.37 D in.
Regular price
$13.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Legrand - Ortronics HDJ5E-45 | Clarity Series, High Density Jack, C...
Regular price
$13.19
Unit price
Description
Description
Legrand - Ortronics HDJ5E-45 | Clarity Series, High Density Jack, Cat 5e, Nickel Plating, Thermoplastic, 22 to 24 AWG, Green, 0.84 H x 0.63 W x 1.37 D in.
High density jack, ETL verified to TIA Category 5e component specification. Rear-loading, 180° exit, 8 position.
Ortronics HDJ5E-45 Main Features
- ETL Verified to Category 5e component standard: Ensures standards compliance.
- Easy lace wiring cap reduces wiring time.
- Easy to follow universal wiring label: Quick and user-friendly, eliminates confusion.
- Rear loading: preferred mounting for panels.
- Icon compatible, C6A marking on jack face: Supports 606 designation requirements.
Specifications
Specifications
Ortronics HDJ5E-45 Additional Information
- RoHS Conformant: Yes
Ortronics HDJ5E-45 Specifications
| Category | Category 5E |
|---|---|
| Color | GREEN |
| Number of Ports | 1 |
| Wiring | A/B UNIVERSAL |
| UNSPSC Code | 39121444 |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| UNSPSC | 39121444 |
| Series | Clarity Series |
| Color | Green |
| Insert Material | Thermoplastic |
| Plating Material | Nickel |
| Category | Cat 5e |
| UPC Number | 662875880998 |
| Country Of Origin | Mexico |
| Product Line | Legrand |
| Application Sector | Commercial/Industrial |
| Type | Jack |
| Standard | TIA-568.2-D, UL 1863, IEEE 802.3af / 802.3at, 802.3bt Type 3 and Type 4, FCC part 68, Subpart F and IEC-603-7 compliant |
Ortronics (Legrand) Education Series Videos
| How to Terminate a Shielded Field-Term Plug using Cat6a | Click to View |
|---|---|
| KT2 Termination Video - Keystone Jack with Lacing Cap Termination | Click to View |
| Termination of PowerWise 1G 4PPoE Cable with Lacing Cap | Click to View |
| How to Terminate FTPU Series Modular Plugs using Category 6a | Click to View |
| How-to-Terminate HDJ Jack with CAT6A Jack and Cable | Click to View |
| Infinium LC Loose Tube Fiber Termination | Click to View |
| How To: Install Infinium LC Fiber Connector | Click to View |
| Modular Patch Panel with Copper and Fiber | Click to View |
| Re-configurable LC (RLC) Patch Cord | Click to View |
| How To: Install Infinium SC Field Connector | Click to View |
