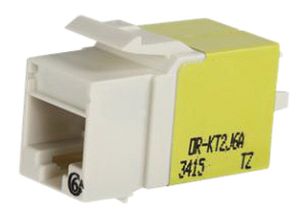

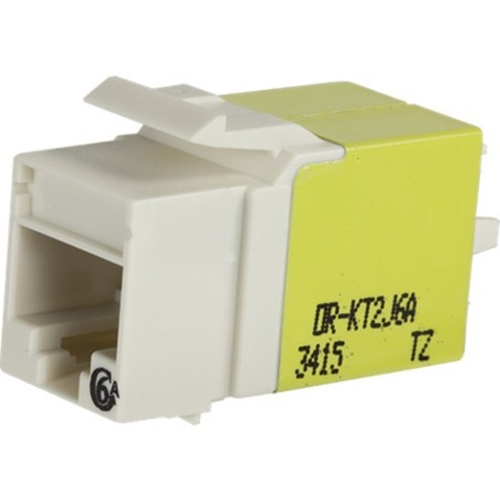

Legrand - Ortronics KT2J6A-88 | TechChoice Keystone Cat 6a Jack, White
Regular price
$18.45
Unit price
Brand: Ortronics
|
SKU:
691184
Regular price
$18.45
Unit price
Description
Description
Legrand - Ortronics KT2J6A-88 | TechChoice Keystone Cat 6a Jack, White
Category 6A Keystone jack, 8-position, 180 degree exit, icon compatible, T568A/B wiring, White, individually packaged.Keystone, KT2J jacks and modules feature New installer friendly lacing cap termination with free termination tool in every carton. The keystone footprint allows flexibility in installation scheduling because its rear insertion into the faceplate allows the technician to complete the termination before and during the construction process.
Ortronics KT2J6A-88 Main Features
- Rear loading: preferred mounting for panels.
- Icon compatible, C5e marking on jack face: Supports 606 designation requirements.
- Free termination tool in each carton of 20 jacks: Convenient no extra termination tool required.
- RoHS compliant: Lead free.
- Easy lace wiring cap: reduces wiring time.
- Easy to follow universal wiring label: Quick and user-friendly, eliminates confusion.
Specifications
Specifications
Ortronics KT2J6A-88 Additional Information
- RoHS Conformant: Yes
Ortronics KT2J6A-88 Specifications
| Category | Category 6A |
|---|---|
| Color | White |
| Number of Ports | 1 |
| Wiring | A/B UNIVERSAL |
| UNSPSC Code | 39121444 |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| Color Family | White |
| Packaging | 1 per Package |
| Color | White |
| Module Type | Keystone |
| Plating Material | Nickel-Plated |
| Style | Keystone |
| Termination | IDC |
| Wiring Configuration | T568A/T568B |
| Category | Cat 6A |
| UPC Number | 662875511106 |
| Country Of Origin | Mexico |
| Product Line | Legrand |
| Application Sector | Commercial/Industrial |
| Type | Jack |
| Standard | TIA-568.2-D, UL 1863, IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, FCC part 68, Subpart F and IEC-603-7 compliant |
